Driveline/Axle
• To get access to the actual coupling component, the coupling case must be dismantled.

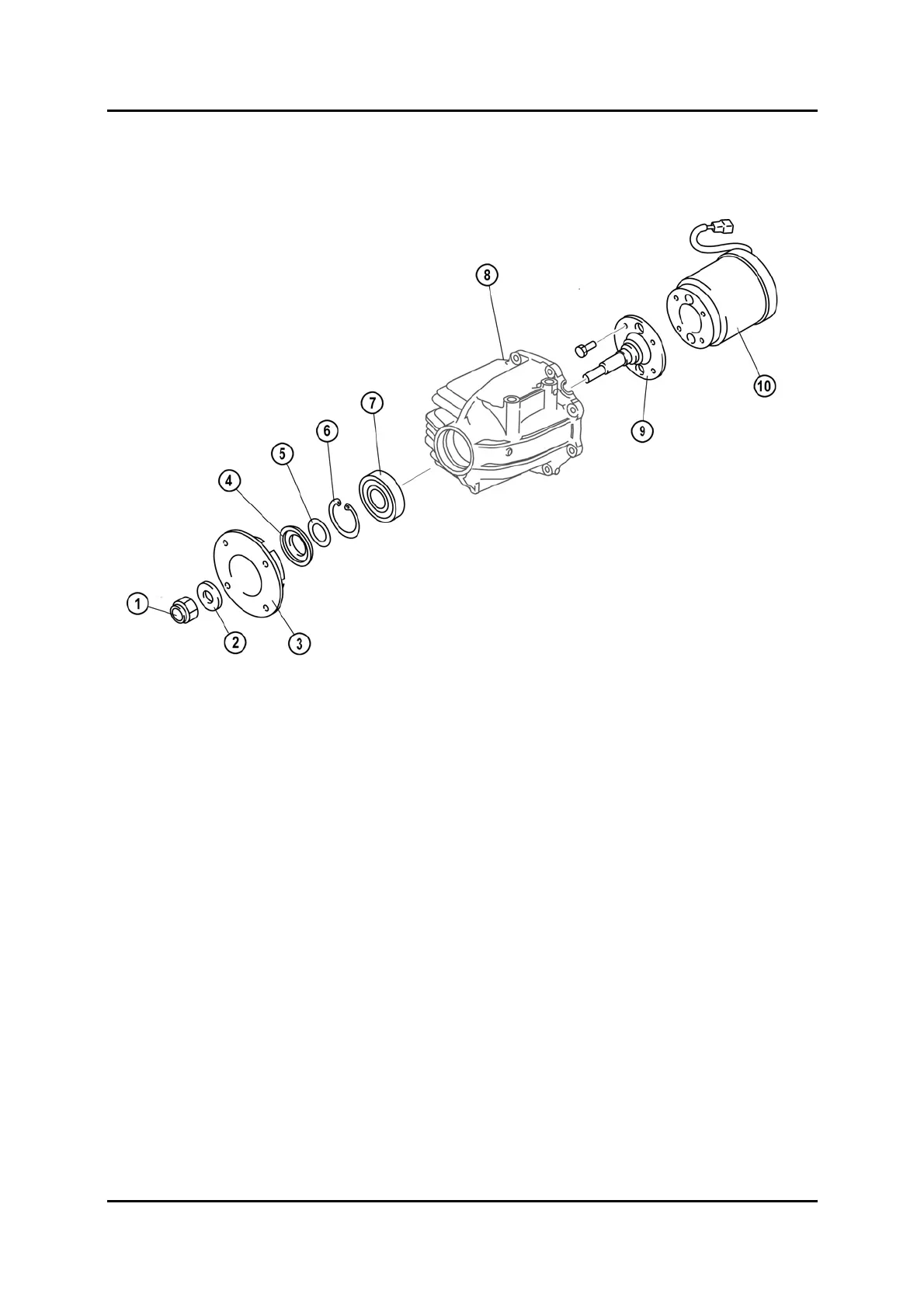

M6-MPS_03023
1 Locknut 6 Retaining ring
2 Washer 7 Bearing
3 Companion flange 8 Coupling case
4 Oil seal 9 Output shaft
5 Shim 10 Coupling component
Service Training Mazda6 MPS Supplement 03-13
