qFuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON. We
recommend keeping the tank over 1/4 full.

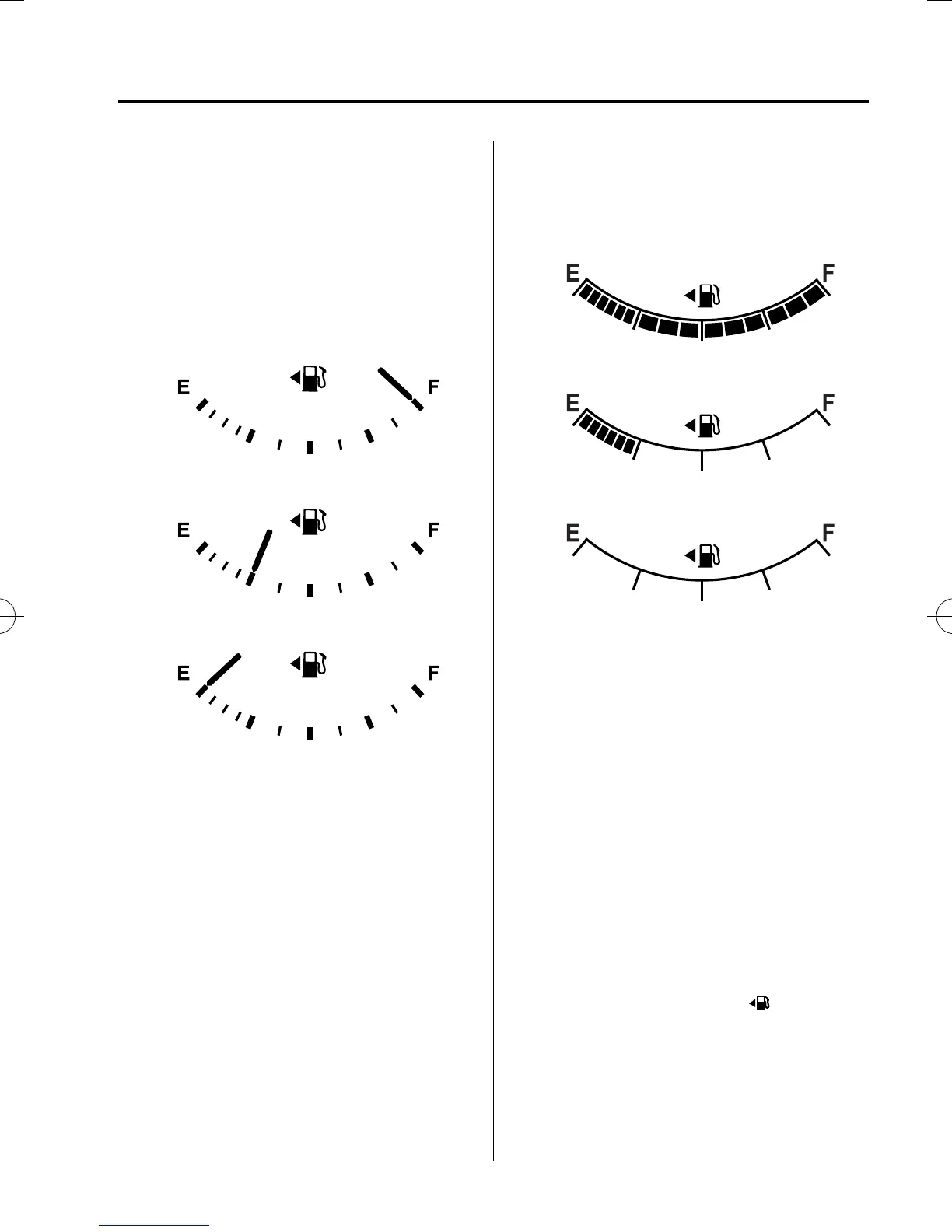

Type A
Full
Empty
1/4 Full
Type B
Full
Empty
1/4 Full
If the low fuel warning light illuminates or
the fuel level is very low, refuel as soon as
possible.
Refer to Warning/Indicator Lights on page
4-20.
NOTE
l
After refueling, it may require some time for
the indicator to stabilize. In addition, the
indicator may deviate while driving on a
slope or curve since the fuel moves in the
tank.
l
The display indicating a quarter or less
remaining fuel has more segments to show
the remaining fuel level in greater detail.
l
The direction of the arrow ( ) indicates
that the fuel-filler lid is on the left side of
the vehicle.
When Driving
Instrument Cluster and Display
4-13
