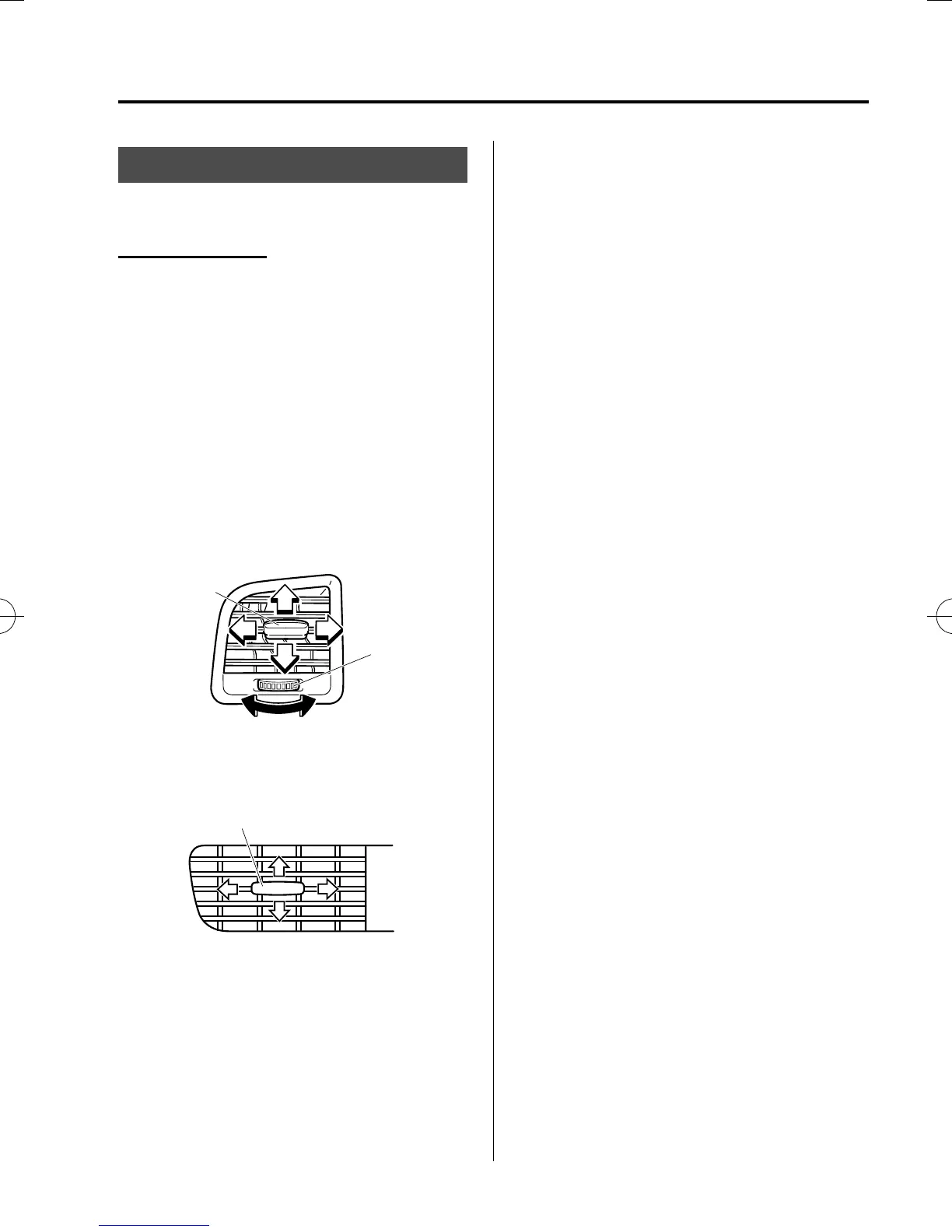

Vent Operation
qAdjusting the Vents
Directing airflo w
To adjust the direction of airflow, move
the adjustment knob.
NOTE
l
When using the air conditioner under
humid ambient temperature conditions, the
system may blow fog from the vents. This is
not a sign of trouble but a result of humid
air being suddenly cooled.
l
The air vents can be fully opened and
closed by operating the dial.
Side Vents
Open
Knob
Dial
Close
Center Vents
Knob
Interior Features
Climate Control System
5-3
