Anti-scalp Dish, Blade & Blade Carrier Removal
Equipment Required
 Torque wrench (see required settings in Torque Settings section)
 36mm hex sockets/spanner
 36mm hex spanner
 55mm hex spanner
 Needle nose pliers

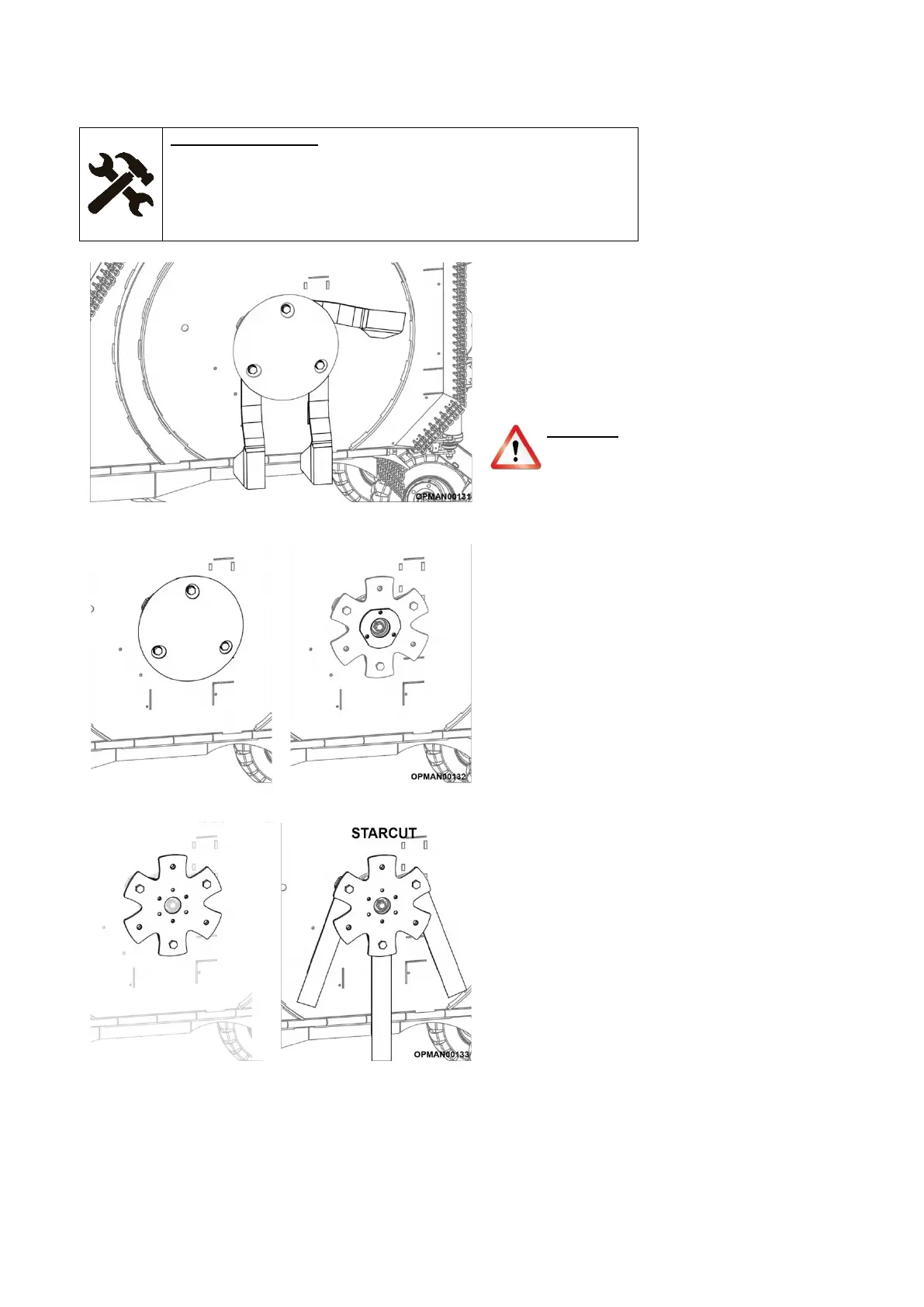

Figure 5.52
5.5.7.1 Ensuring that the blades and blade carrier
are in their “dropped” and static position.
Remove the first standard blade and
replace its fasteners after.
Repeat the process for the other two
standard blades.
DANGER! When carrying out
maintenance work on or near the blade
carrier, be careful of free-swinging blades
over-centering and falling. It is
recommended that Personal Protection
Equipment (PPE) is worn.
F
igure
5.53
5.5.7.2 Fully remove the three blade standard
fasteners and remove the anti-scalp dish
assembly.
Remove the blade carrier spacer also.
Figure
5.54
NOTE: Only applicable to machines fitted with
Starcut Blade plates ± Starcut blades
5.5.7.3 Remove the remaining three fasteners
from the upper blade carrier (and the
Starcut blade option blades if fitted).
