2.5.2 Placement
Section 2.5.2.1 to 2.5.2.3 state the particular positions safety and instruction decals are placed on each of the
machine models.
2.5.2.1 SR460

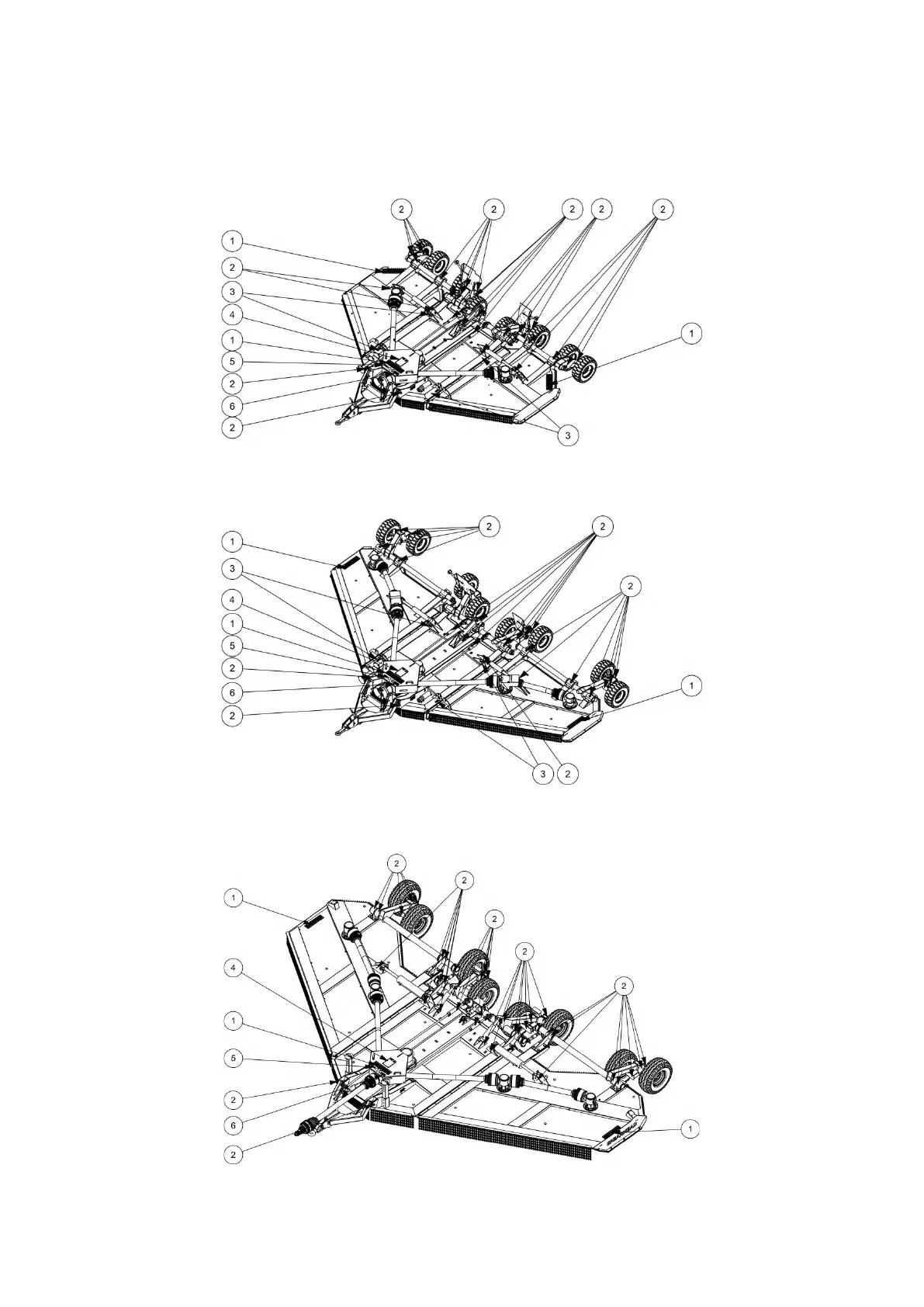

Figure 2.3 – SR460 Safety & Instructional Decal Placement
2.5.2.2 SR620
Figure 2.4 – SR620 Safety & Instructional Decal Placement
2.5.2.3 SR820
Figure 2.5 – SR820 Safety & Instructional Decal Placement
