5.3.3 Input PTO shaft - Bearing Ring Replacement
Plastic wear bearing rings are found inside the PTO assembly to give a replaceable wearing surface between
the metal PTO shaft and the outer plastic safety shield/cone. Due to the parts design aim, the wear rings inside
the PTO assembly will be required to be replaced over the working life of the PTO shaft to ensure that the
outer plastic safety shield/cone does not wear through and expose the rotating PTO shaft found inside.
Item. Description.
1 Support bearing for 80° CV joints with retaining spring
2 Outer pipe support bearing
3 Shield for 80° joint
4 Flanged screw
5 Chain
6 Self-tapping screw
7 Taper + outer pipe
8 Taper + inner pipe
9 Shield for 50° joint
10 Inner pipe support bearing
11 Support bearing for 50° CV joints with retaining spring

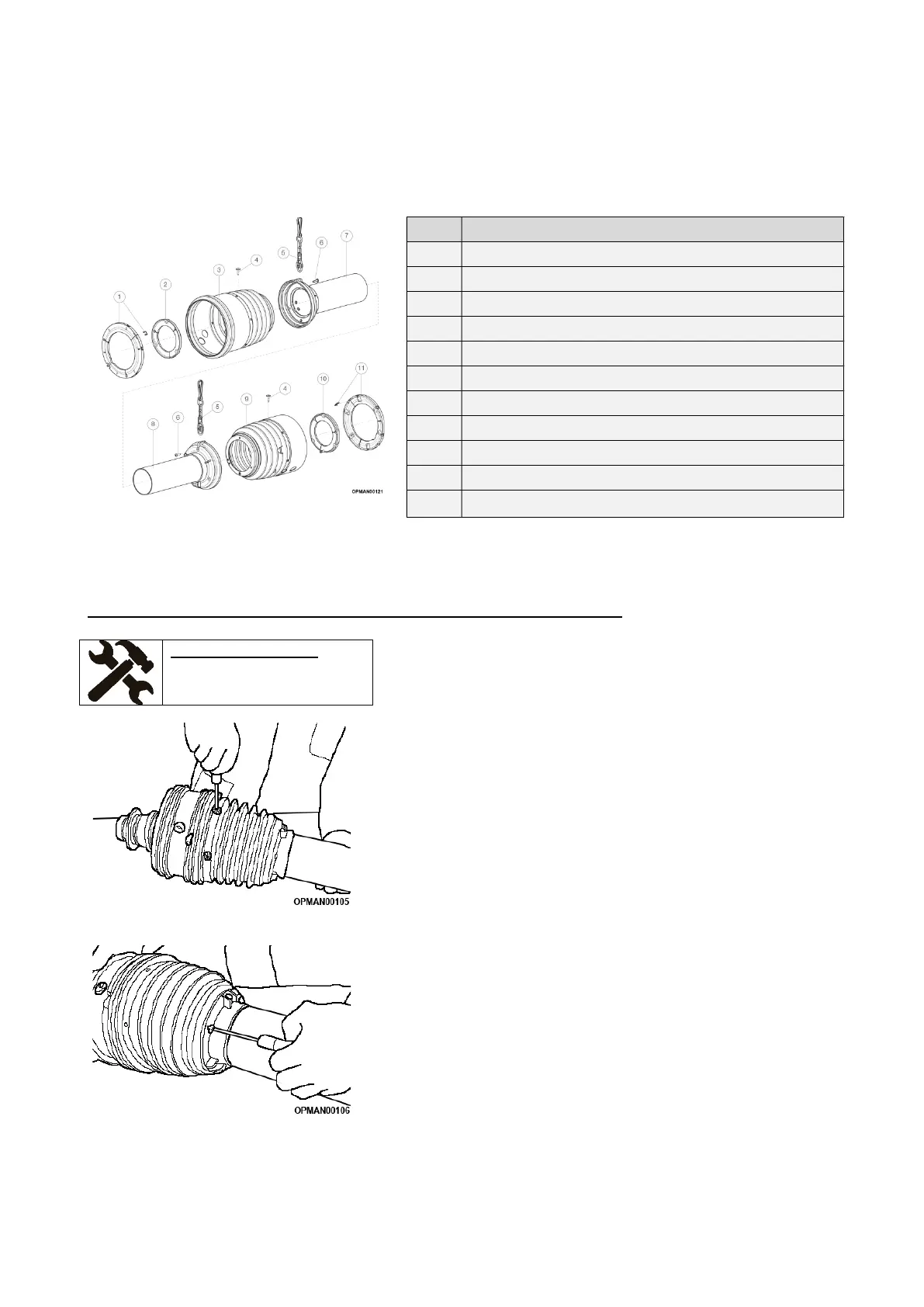

Figure 5.9/Table 5.10 - Input Shaft Safety & Wearing Components
Following this section will allow the successful removal and replacement of the bearing spacer wear rings.
Input PTO shaft - Bearing Ring Replacement – DISASSEMBLY
Equipment Required
 Phillips head screwdriver
 Flat head screwdriver
Figure
5.10
5.3.3.1 Remove the screws arranged radially around
the circumference of the CV cone
Figure 5.11
5.3.3.2 Remove the screws from the base of the
cone
