McConnel SR460 - Page 89

76

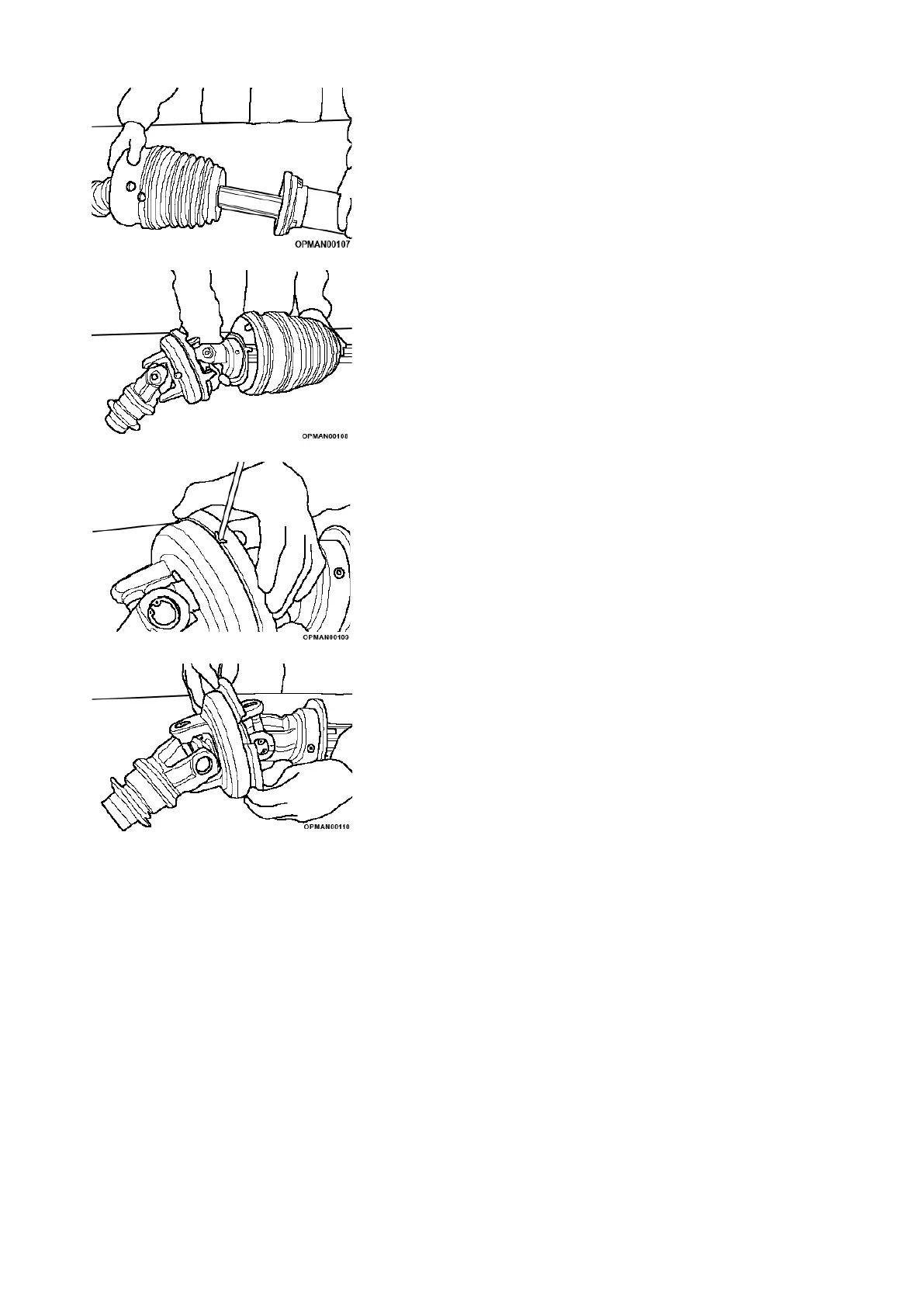

Figure 5.12
5.3.3.3 Remove the base cone and the shield tube
Figure
5.13
5.3.3.4 Remove the CV cone
Figure
5.14
5.3.3.5 Disengage the retaining spring, leaving it
inserted in one of the two holes of the
bearing ring to avoid losing it
Figure 5.15
5.3.3.6 Spread the bearing rings and remove from
their groove
