5.3.4 Wing PTO shaft - Bearing Ring Replacement
Plastic wear bearing rings are found inside the PTO assembly to give a replaceable wearing surface between
the metal PTO shaft and the outer plastic safety shield/cone. Due to the parts design aim, the wear rings inside
the PTO assembly will be required to be replaced over the working life of the PTO shaft to ensure that the outer
plastic safety shield/cone doesn’t wear through and expose the rotating PTO shaft found inside.
Item. Description.
1 Outer pipe support bearing
2 End shield
3 Taper + outer pipe
4 Self-tapping screw
5 Chain
6 Taper + inner pipe
7 Inner pipe support bearing

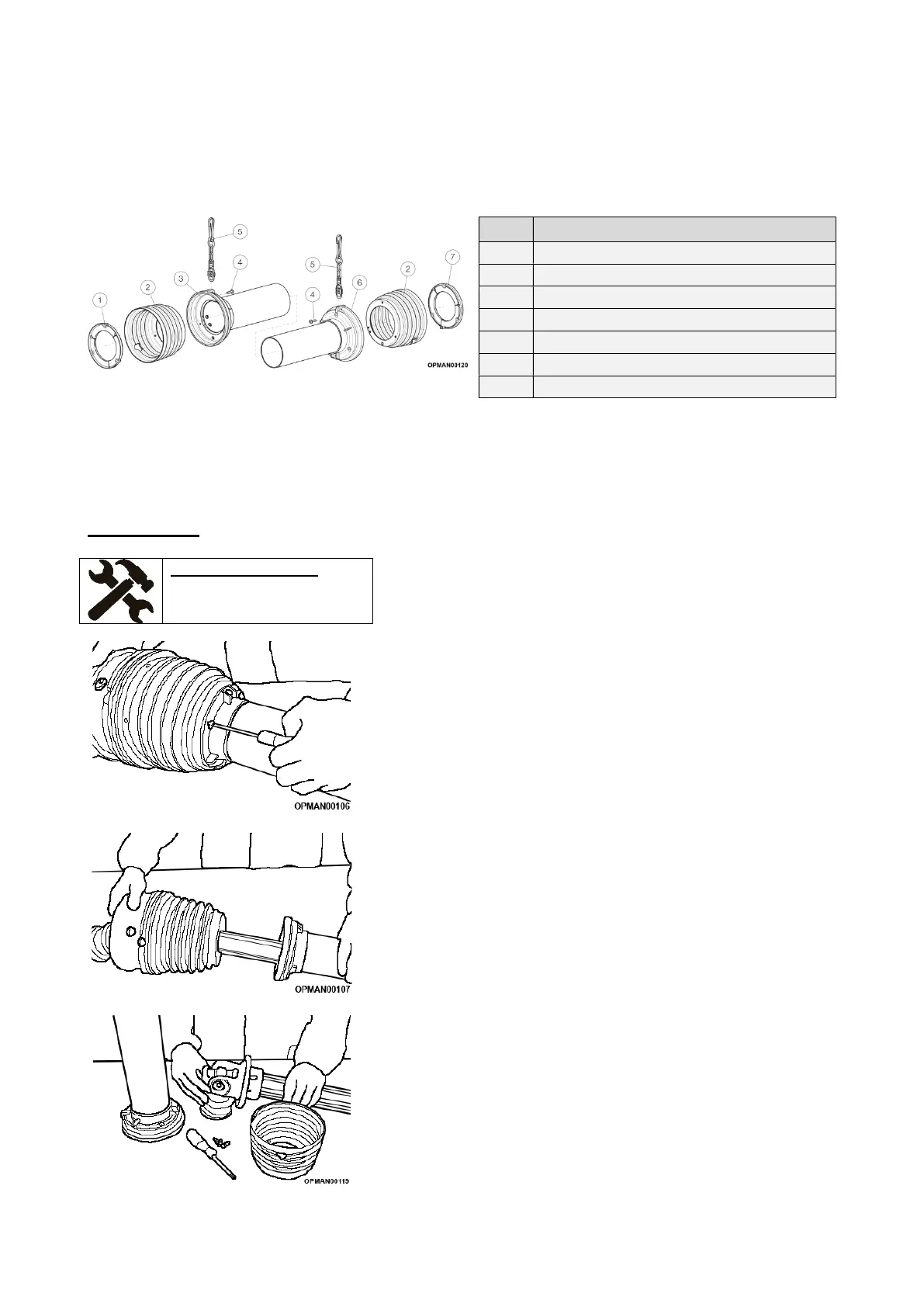

Figure 5.27/Table 5.11 – Wing Shaft Safety & Wearing Components
Following this section will allow the successful removal and replacement of the bearing spacer wear rings.
Disassembly
Equipment Required
 Phillips head screwdriver
 Flat head screwdriver
Figure 5.28
5.3.4.1 Remove the Philips head screws
Figure
5.29
5.3.4.2 Remove the base cone and shield tube
Figure
5.
30
5.3.4.3 Remove the outer cone and the bearing ring
