5.2.3 General Machine Greasing Point Locations

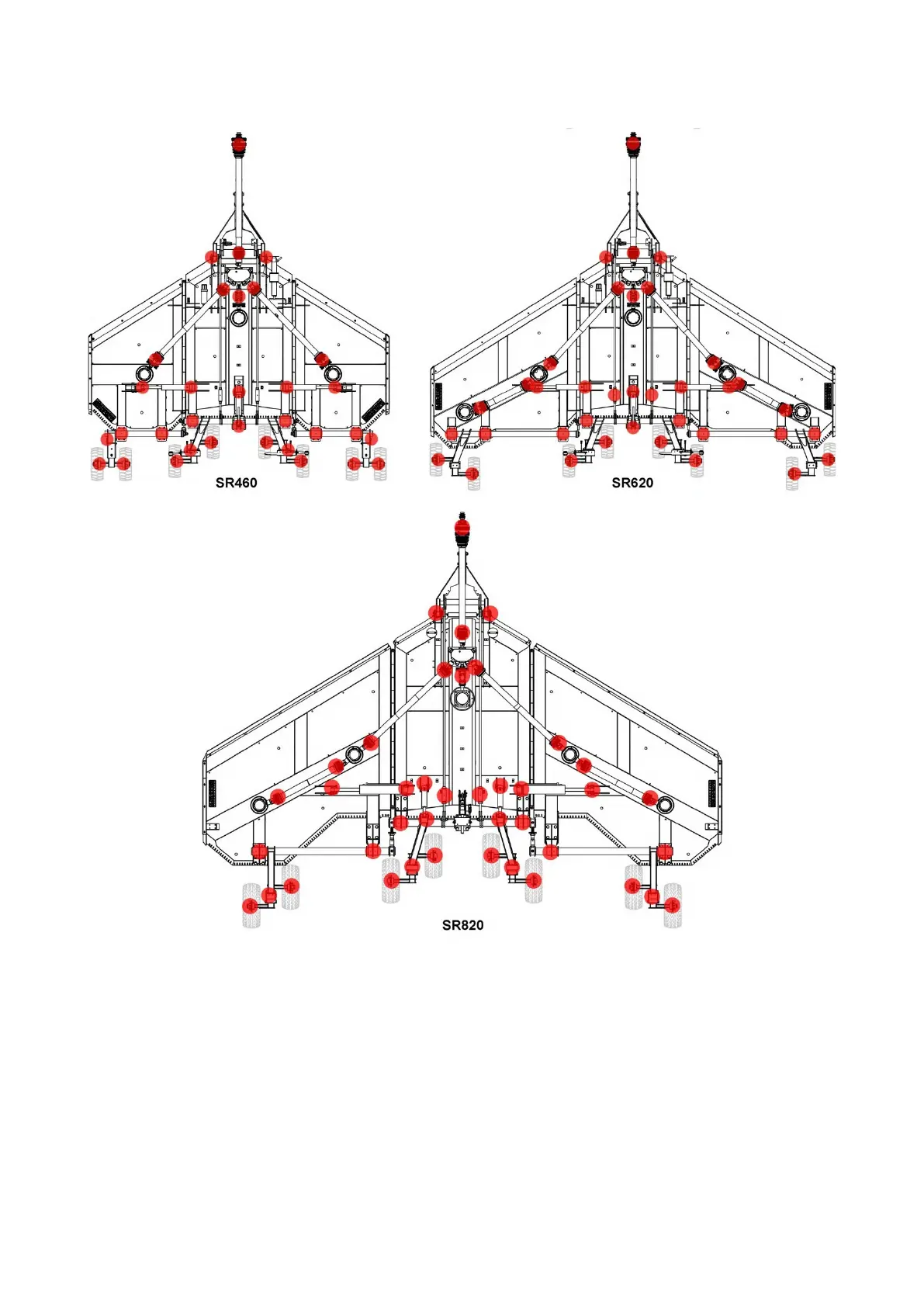

Figure 5.8 – Grease Point Locations

See Section 5.2.4 for reference to the routine greasing schedule for each of the relevant locations on each of the

models.
