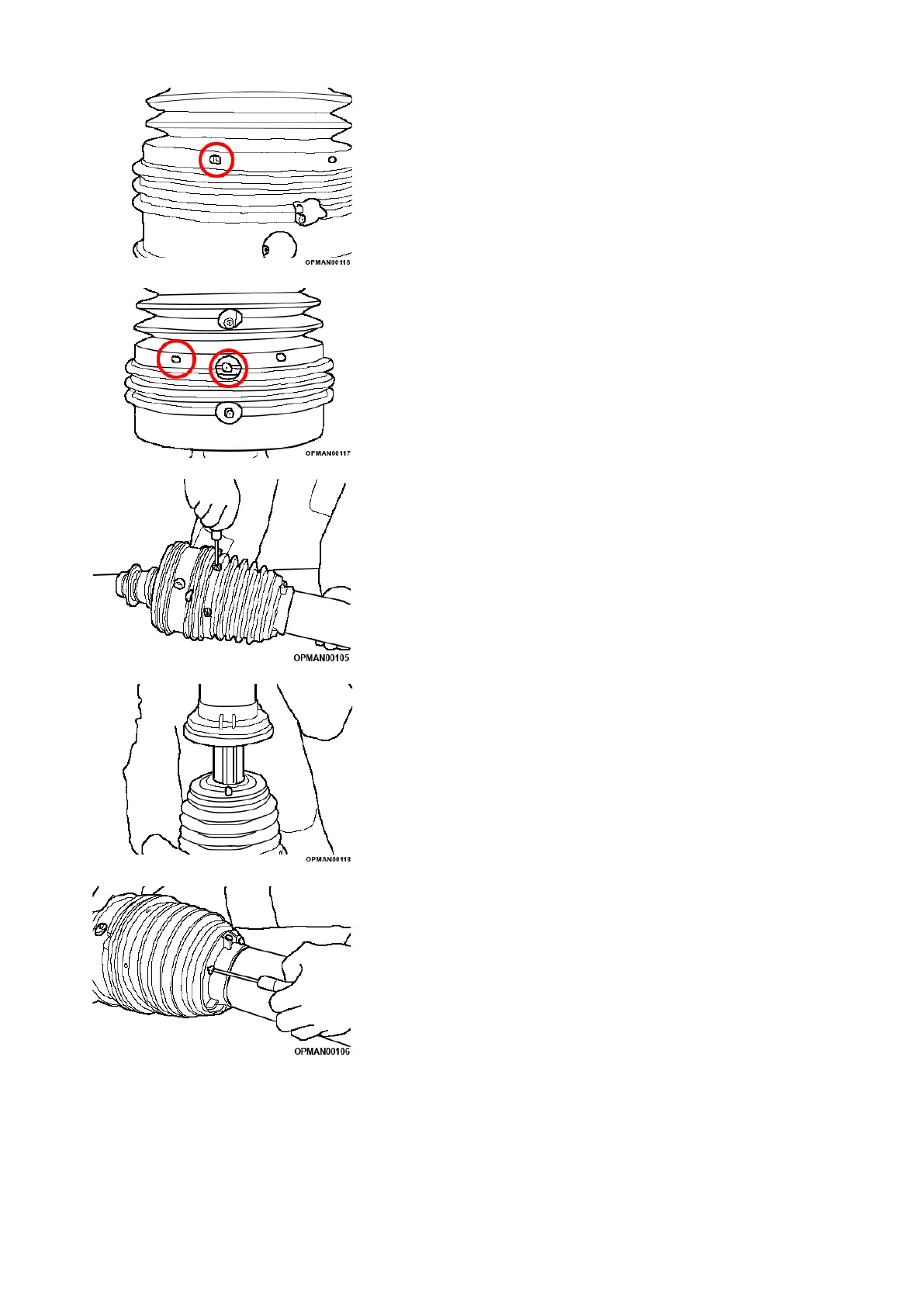

5.3.3.12 Ensure that the radial holes of the CV cone
are aligned with the holes on the reference
pins of the bearing ring
Figure 5.22
5.3.3.13 For 50° CV joints only, ensure that the
radial holes of the shield strip are aligned
with the holes on the reference pins of the
bearing ring and that the access hole on
the CV cone is aligned with the grease
fitting of the bearing ring
Figure
5.23
5.3.3.14 Tighten the 6 flange head screws of the
protection strip. The use of an electric
screwdriver is not recommended
Fi
gure
5.24
5.3.3.15 Fit the base cone and tube, inserting the
grease fitting in the hole on the base cone
Figure 5.25
5.3.3.16 Tighten the 3 screws. The use of an electric
screwdriver is not recommended
