Input PTO shaft - Bearing Ring Replacement – REASSEMBLY
Equipment Required
 Phillips head screwdriver
 Flat head screwdriver
 NLGI #2 Molybdenum Disulphide grease with paint brush/distributor
Figure
5.16

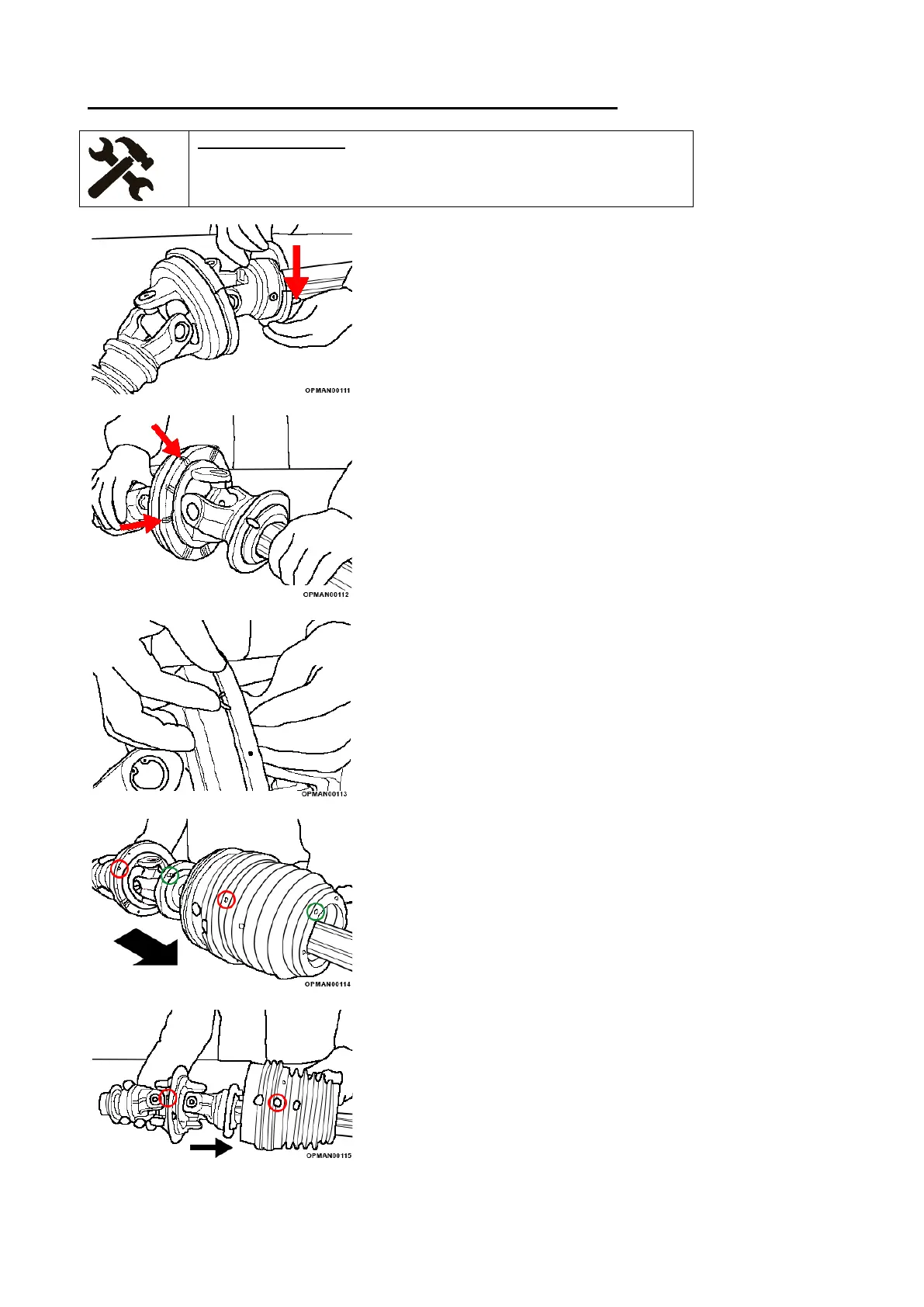

5.3.3.7 Grease the bearing grooves. Fit the bearing
ring into the yoke groove with the grease
fitting facing the drive tube
Fig
ure
5.17
5.3.3.8 Install the bearing ring on the CV body with
the reference pins facing the inner yoke
50° CV joints feature a bearing ring equipped with a
grease fitting
Figure
5.18
5.3.3.9 Connect the retaining springs to the two
edges of the bearing ring
Fig
ure
5.19
5.3.3.10 Slide the CV cone onto the CV body and
align the radial holes with the bearing ring
reference pins. Align the hole at the base of
the CV cone with the grease fitting on the
smaller bearing ring
Figure
5.20
5.3.3.11 In the case of 50° CV joints only: insert the
shield strip, aligning the reference pins and
also the additional hole of the shield strip
with the grease fitting of the large ring
