McConnel SR460 - Page 106

93

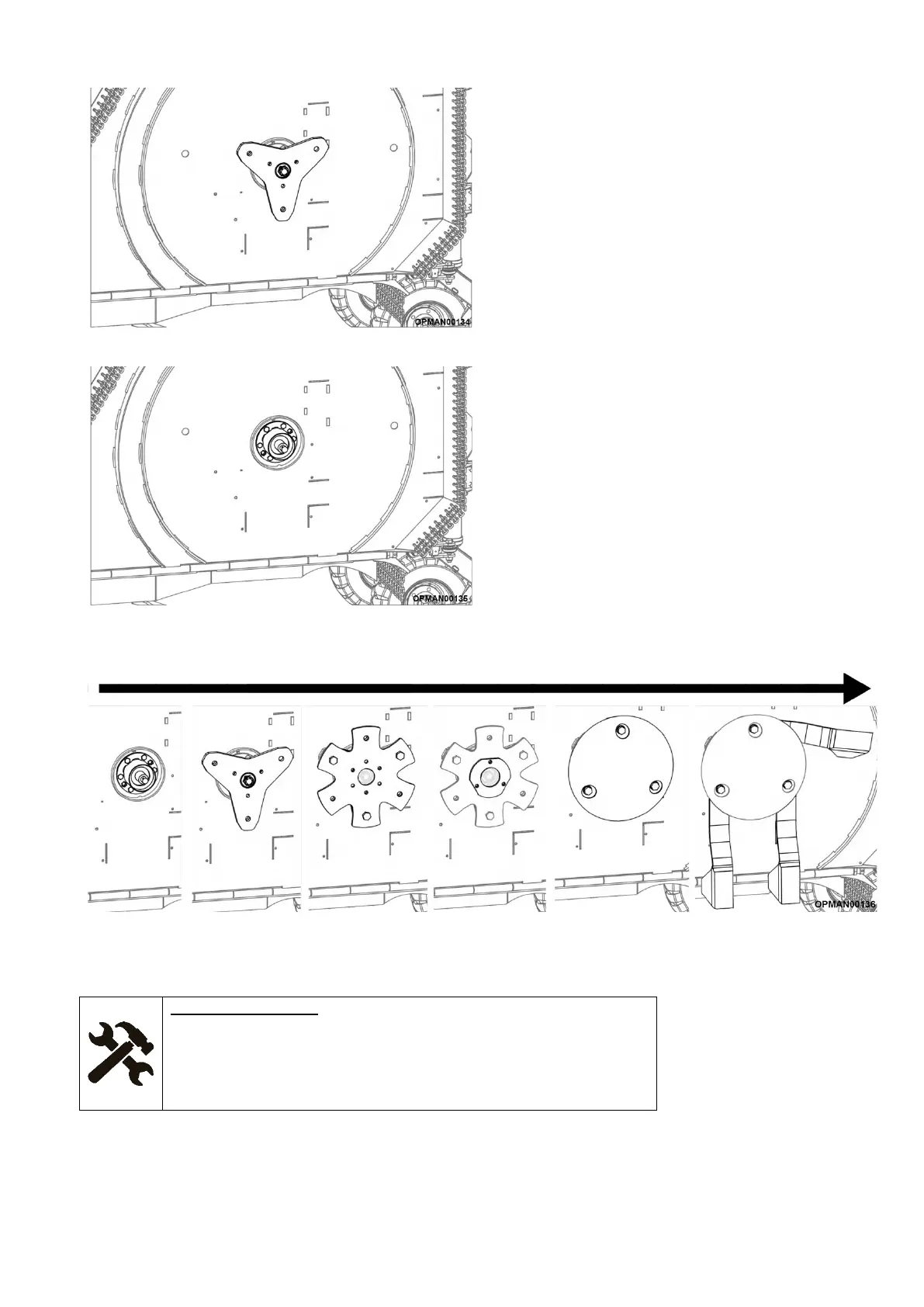

Figure 5.55
5.5.7.4 Remove the split pin and untighten the
castle nut and free the lower blade carrier
off the splined shaft.
Figure
5.56
5.5.7.5 Inspect the underside of the gearbox and
the gearbox seal protector for damage and
ingressed debris.
Anti-scalp Dish, Blade & Blade Carrier Installation
Figure 5.57
Anti-scalp Dish, Blade & Blade Carrier Installation
Equipment Required
 36mm hex sockets/spanner
 36mm hex spanner
 55mm hex spanner
 Needle nose pliers

NLG
I #2 Molybdenum
Disulphide gr
ease with paint brush/distributor
The complete blade carrier and blade assembly can be reassembled in a reverse fashion shown in the removal
procedure.
Always assess the condition of all the components to see they’re fit for purpose before reassembling.
