McConnel SR460 - Page 82

69

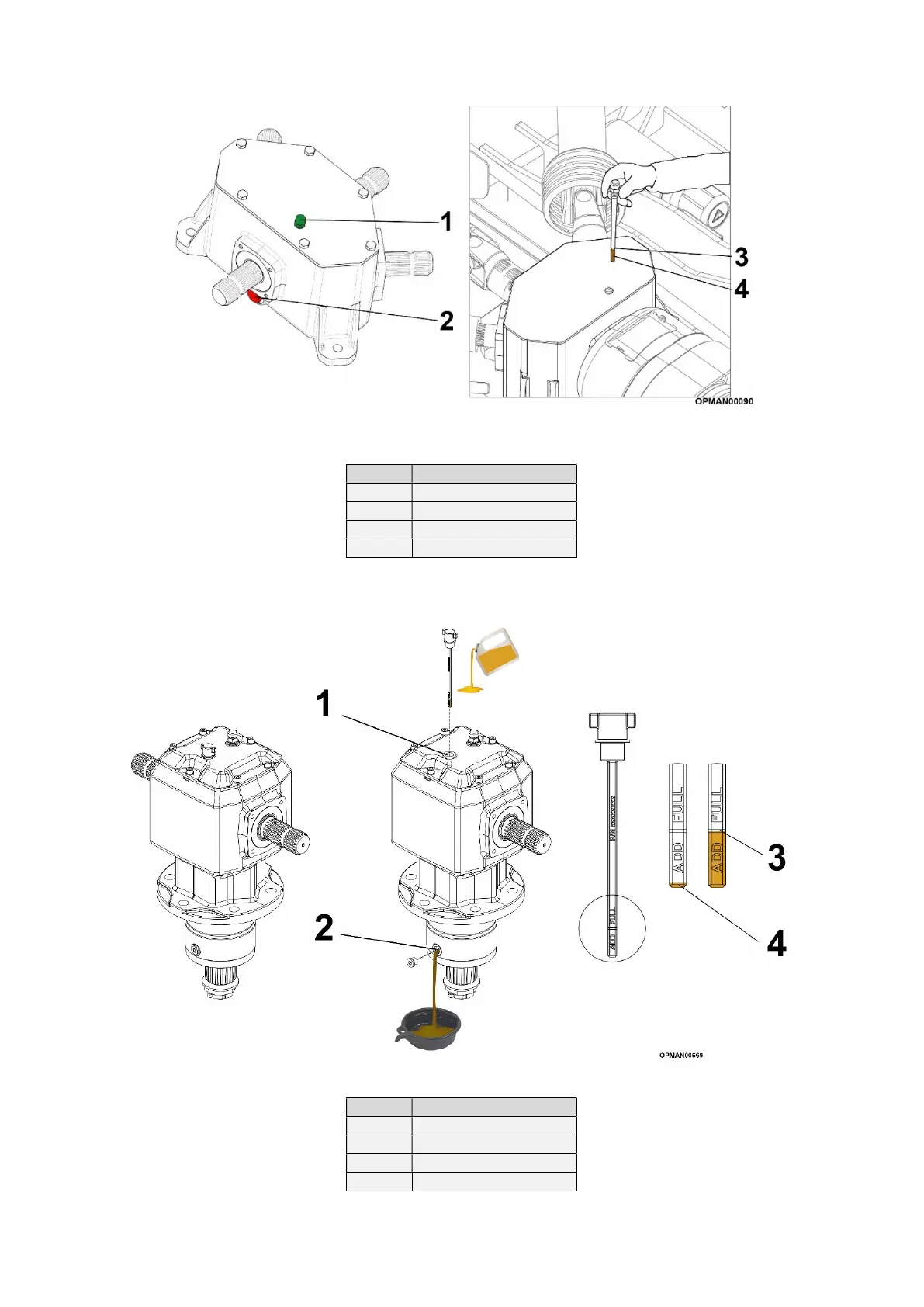

5.2.1.1 Splitter Gearbox
Figure 5.2 – Splitter Gearbox
(Guard does not require removal)
No
.
Description.
1
Dipstick
2
Drain Plug
3
Upper Fill Mark
4
Lower Fill Mark
Table 5.2 – Splitter Gearbox Components
5.2.1.2 Rotor Gearboxes
Figure 5.2 – Rotor Gearboxes
No.
Description.
1
Dipstick
2
Drain Plug
3
Upper Fill Mark
4
Lower Fill Mark
Table 5.3 – Rotor Gearbox Components
