Input Shaft (1)

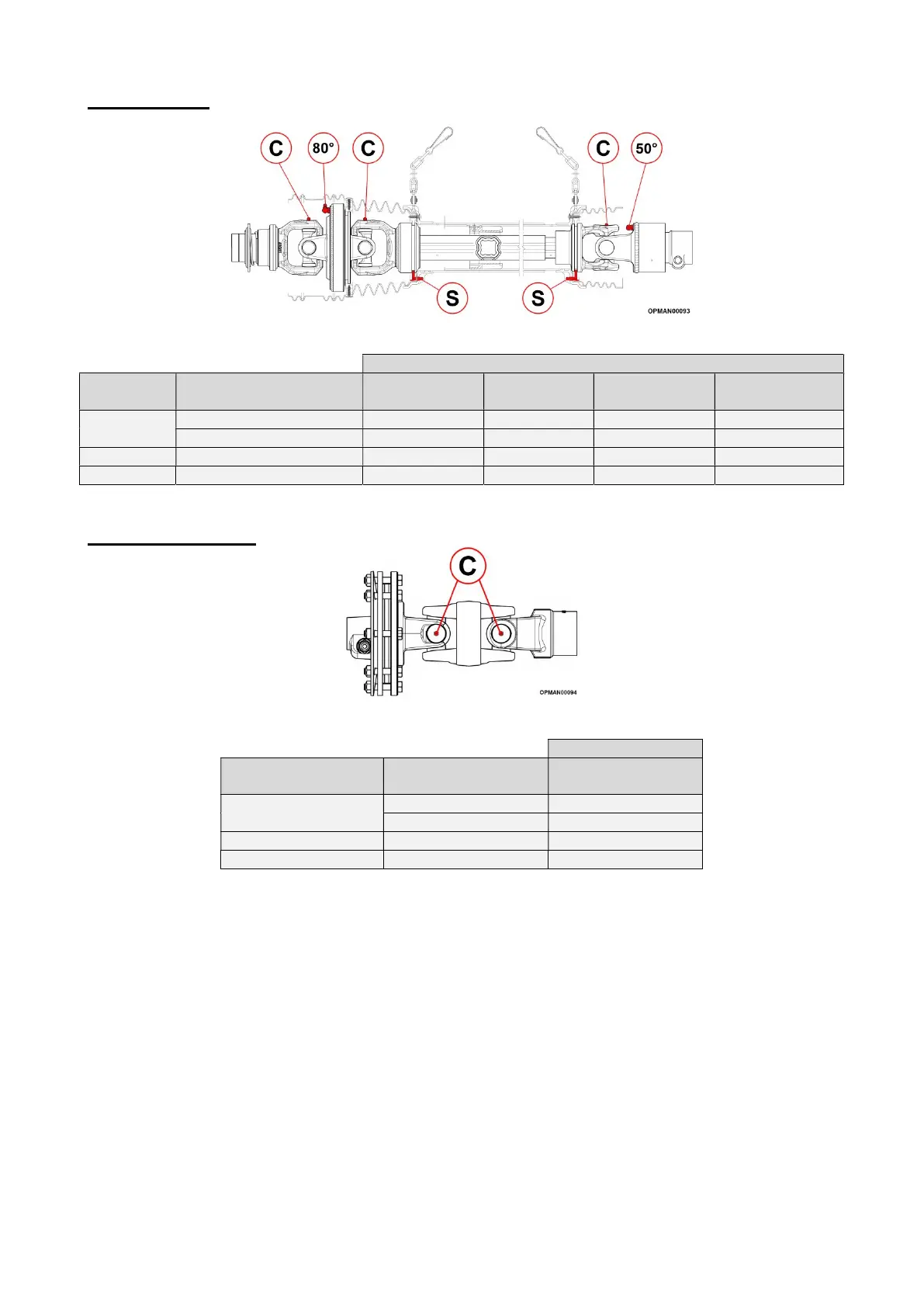

Figure 5.5 – Input Shaft Grease Locations
Qu
antity of Pumps
Model PTO Input Speed
(Shaft Size)
(C) - Cross (S) – Shield
Bearings
(80°) - 80°
C
V Joint
(50°) – (50°)
CV
Join
t
SR460
540 (S8) 22 6 80 7
1000 (S6) 13 6 60 6
SR
620
1000 (S8) 22 6 80 7
SR
820
1000 (SH) 28 6 160 8
Table 5.5 – Input Shaft Grease Quantities
Centre Coupling (2)
Figure 5.6 – Centre Coupling Grease Location
Qu
antity of Pumps
Model PTO Input Speed
(Shaft
Size)
(C) - Cross
SR460
540 (S5) 13
1000 (S5) 13
SR
620
1000 (S5) 13
SR
820
1000 (S6) 13
Table 5.6 – Centre Coupling Grease Quantities
