Quick installation

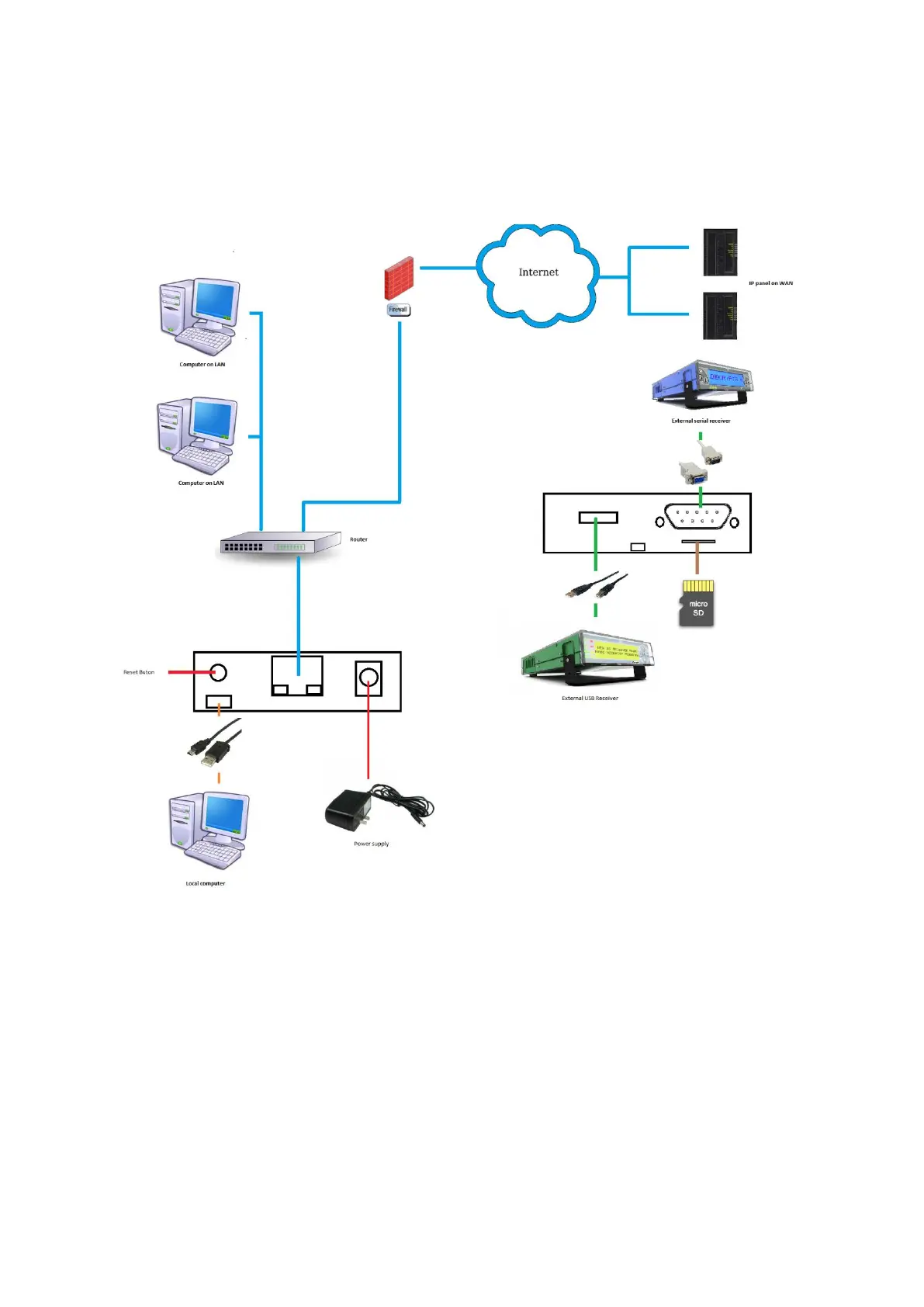

Have a look on the following schematic to help you with the Extrium DT42 installation and cables

connection.

You should plug only what you want to use.

Extrium DT42 plug cable

Start Extrium DT42

Extrium DT42 doesn’t have a on/off button. From the moment the Extrium DT42 is powered, it will start.

Boot time of the Extrium DT42 application is typically less than 1 minute.
