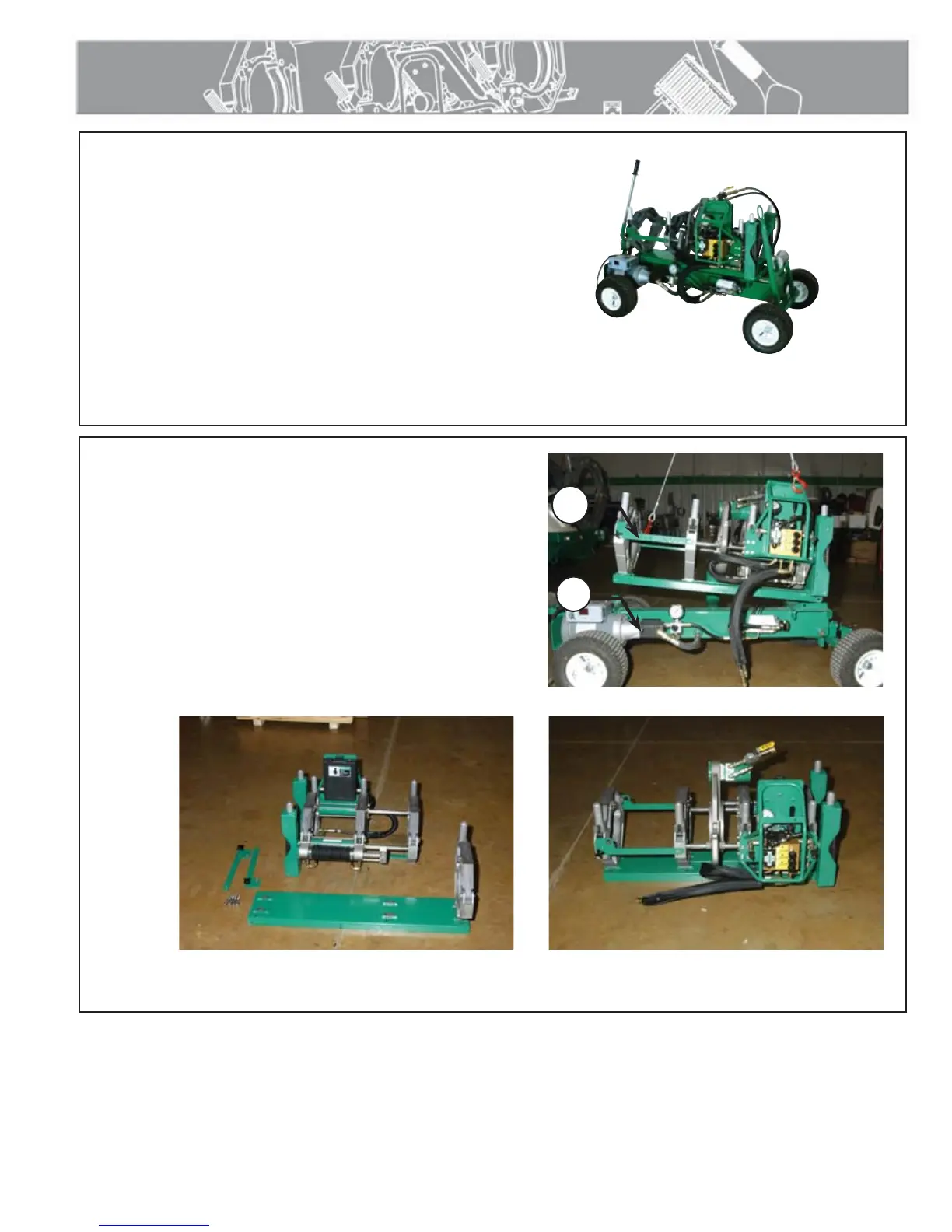

Carriage Assembly
The carriage assembly consists of two fixed jaws and two
hydraulically operated movable jaws bolted to the skid. For remote
operation the carriage can be set in ditch and connected to the
machine with optional hydraulic extension hoses. The carriage
assembly (A) can be disconnected from the chassis (B) and
removed for remote operation. The optional extension hose kit is
required for this operation.
For tight installations the outer fixed jaw and skid can be removed
from the carriage for an even more compact fusion unit.
TX01891-11-15-00
Overview
Introduction to the 28 and 250 Fusion
Machine
The McElroy 28 hydraulically operated fusion machine will butt
fuse all pipe sizes from 2" IPS through 8" DIPS (63 mm - 225
mm). The combination unit adds saddle fusion capability of
up to an 8" DIPS outlet with up to 9 5/8" diameter base on
any size main. The machine also allows for butt fusion of most
fittings without special holders or removal of outer jaws.
The 250 model fuses 2” IPS (63mm) minimum to 250mm
maximum pipe.
TX01309-06-05-13
