Outrigger

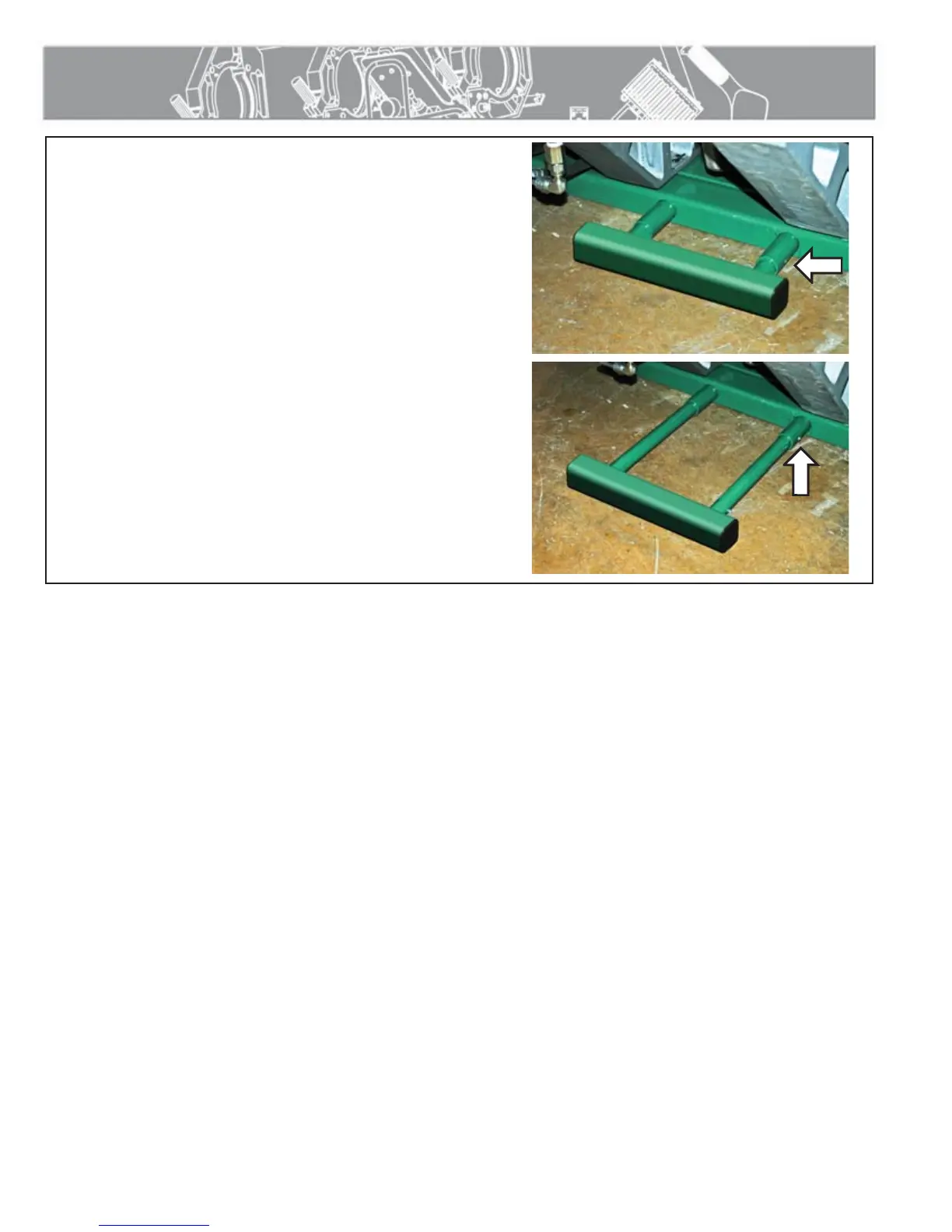

The outrigger is an arm that is retractable and adds support to the
carriage assembly when opening the jaws and pivoting the facer
away from the carriage.
To extend or retract the outrigger, press the locking button near
the base of the outrigger and push or pull the arm until the button
snaps to the locked position.
NOTICE: Never use the outrigger to lift or move the carriage.
