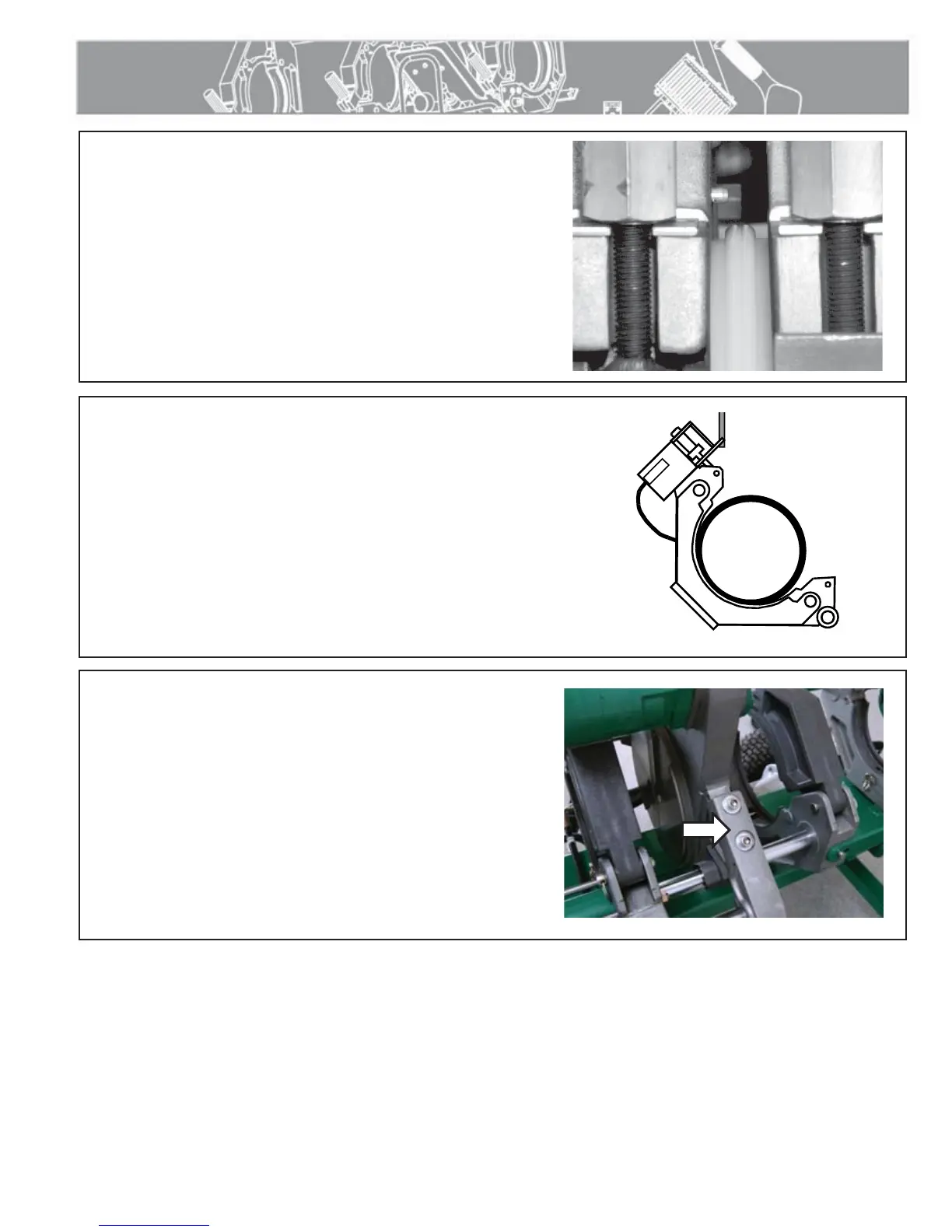

Make Fusion Joint
Refer to the "Butt Fusion Procedure" for operating instructions.
After facing operation, remove the facer from ditch.
TX00450-9-16-94
Special Operations - In Ditch
PH00363-9-12-94
4 - 7
Remove Carriage Assembly from Ditch
Loosen clamp knobs and remove top jaws.
Rotate carriage assembly from under the pipe.
IMPORTANT: Always rotate unit with valve system facing up to
protect against damage.
Attach sling to lifting point(s).
Lift carriage assembly from ditch.
TX00451-9-16-94
CD00193b-9-29-00
Reassemble Fusion Machine
Install carriage assembly to the chassis and connect carriage hoses.
Lift facer into position and bolt to facer mount. Do not tighten. Pivot
facer down and bring jaws inward against the facer to establish
facer position. Open jaws away from facer and pivot facer out.
Tighten the facer mounting bolts.
Connect facer hoses.
Replace top jaws.
TX02136-07-11-03
PH01907-11-15-00
