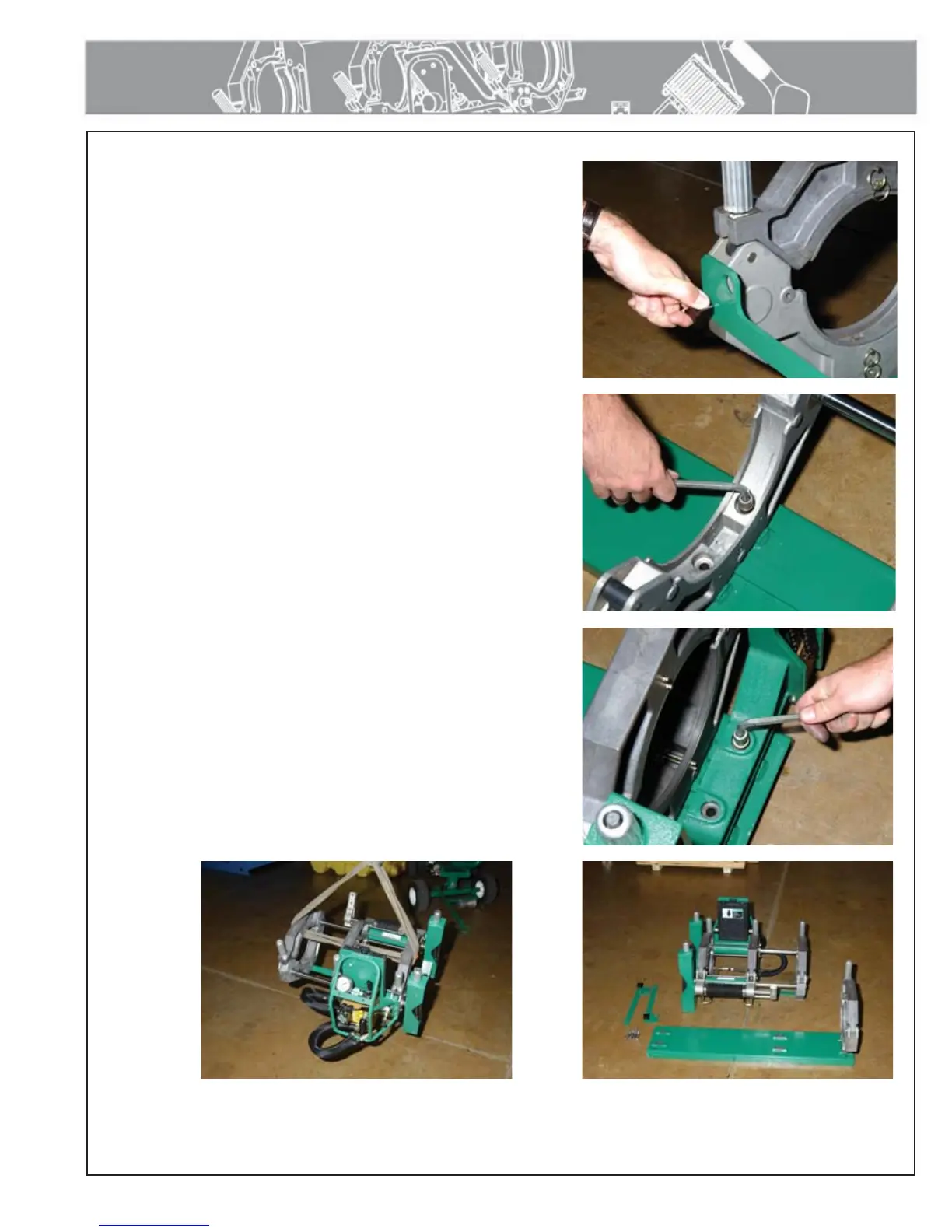

Remove 3-Jaw Assembly from the Carriage
Remove braces from inner fixed jaw.
Remove the four bolts holding carriage assembly to the chassis
with the wrench provided.
Attach lifting strap as shown and lift the carriage assembly.
TX01875-11-8-00
PH02504-07-10-03
Special Operations - In Ditch
4 - 3
PH02503-07-10-03
PH02502-07-10-03PH02505-07-10-03
PH02506-07-10-03
To Next Page
