4 - 4
Special Operations - In Ditch

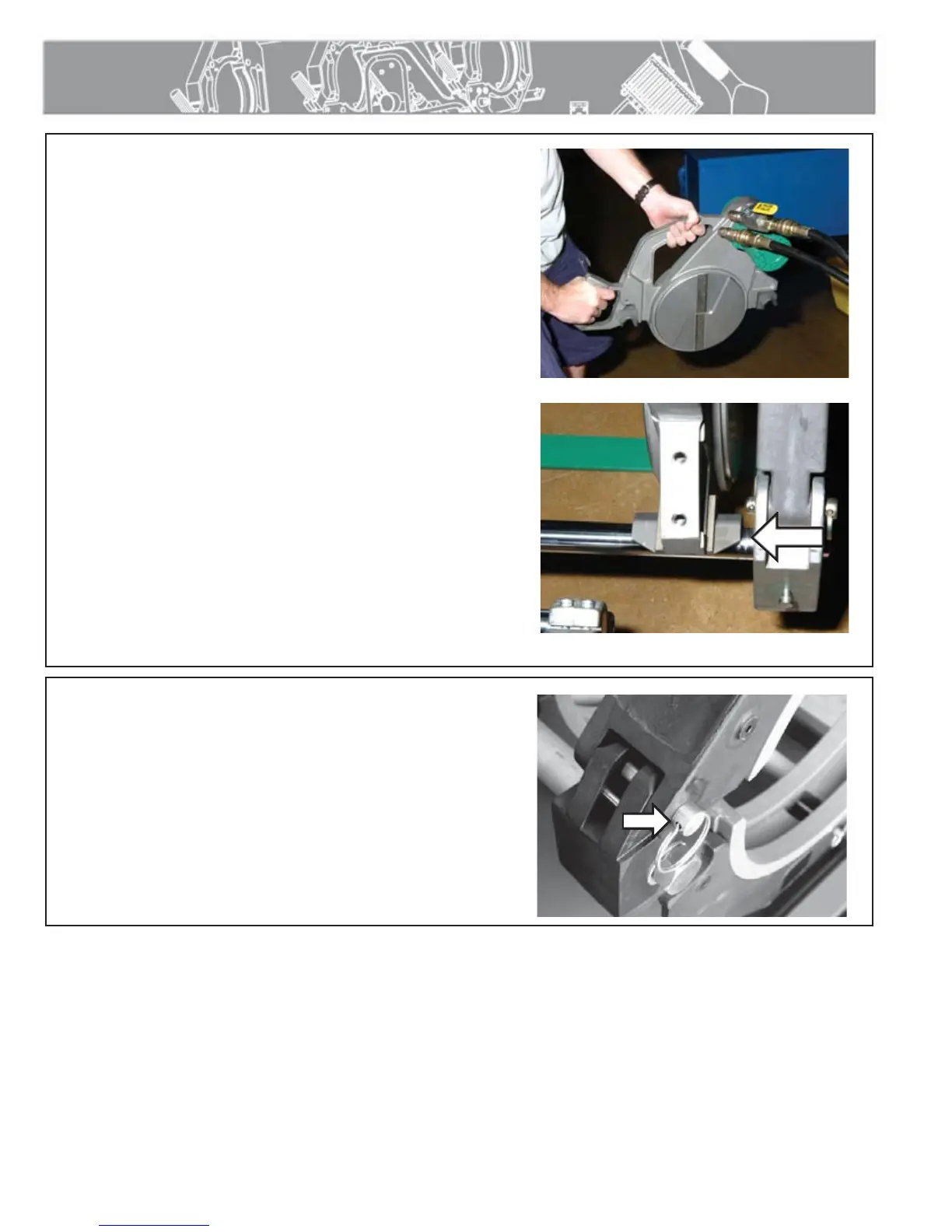

Manual Facer Operation
Lift as shown.
Lock onto back guide rod, then latch on front guide rod.
TX01887-11-15-00
PH02507-07-10-03PH02508-07-10-03
Removing Top Jaws
If the carriage is going to be hand carried, or if the carriage
needs to be hoisted and slid underneath the pipe, the top jaws
need to be removed.
Loosen all clamp knobs. Take out the detent pins securing the top
jaws and remove the jaws.
TX01479-2-26-98
PH01305-3-12-98
