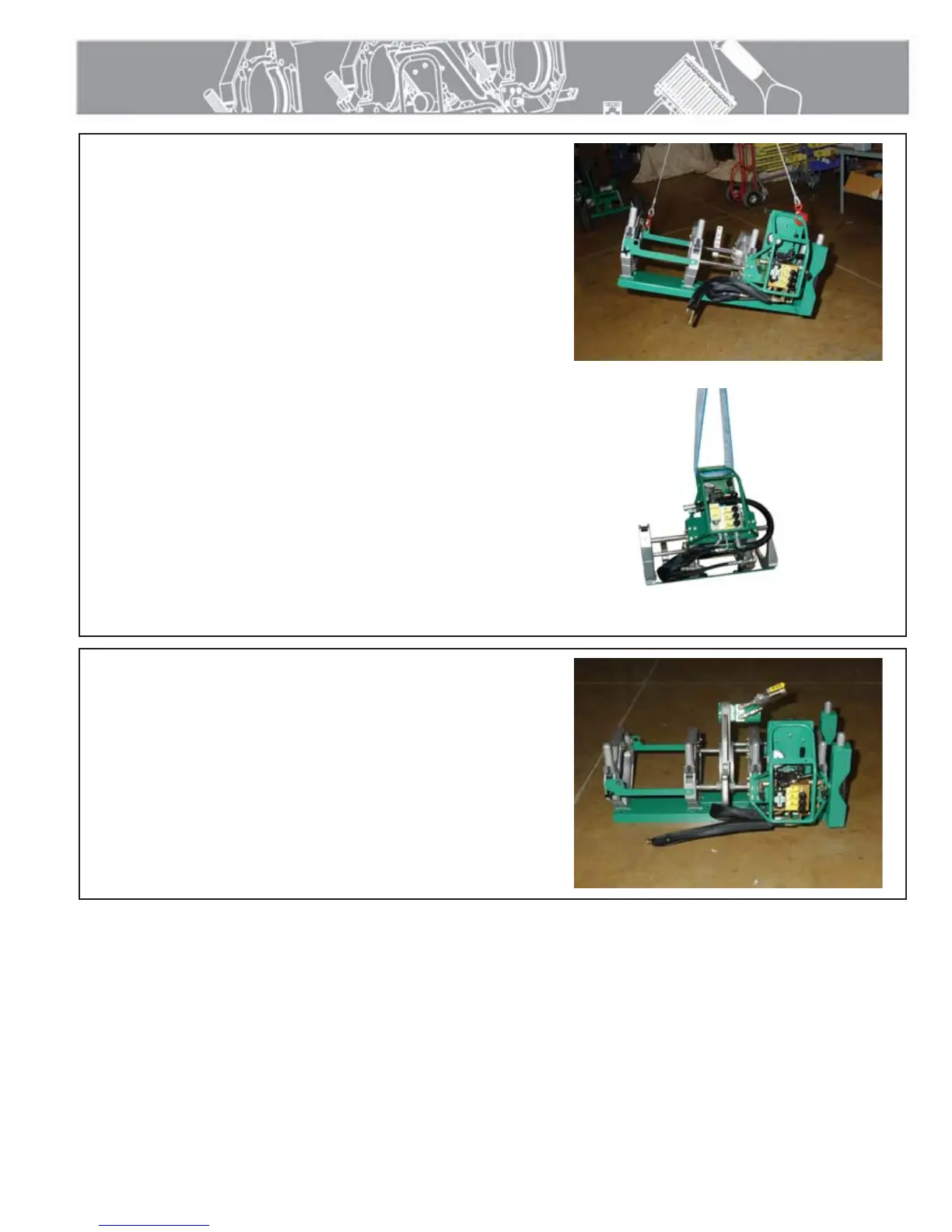

Lower 3-Jaw or 4-Jaw Carriage into Ditch
Use all 4 jaws whenever possible. The three jaw unit should be
used only when space is not available for the entire carriage, such
as fusing onto a tee, an ell or doing saddle fusion
4-Jaw
Attach lifting sling to the manifold bracket and the far side lift
point.
Lift carriage assembly and lower into ditch.
3-Jaw
Attach lifting strap to the manifold bracket.
Lift carriage assembly and lower into ditch.
TX01864-4-22-10
Special Operations - In Ditch
PH02510-07-10-03
4 - 5
PH04147-4-22-10
Lower Carriage Into Ditch
Remove top jaws from unit by pulling ball lock pins.
Attach lifting sling to lifting point.
Lift carriage assembly up and lower into ditch.
TX00448-9-16-94
PH02500-07-10-03
