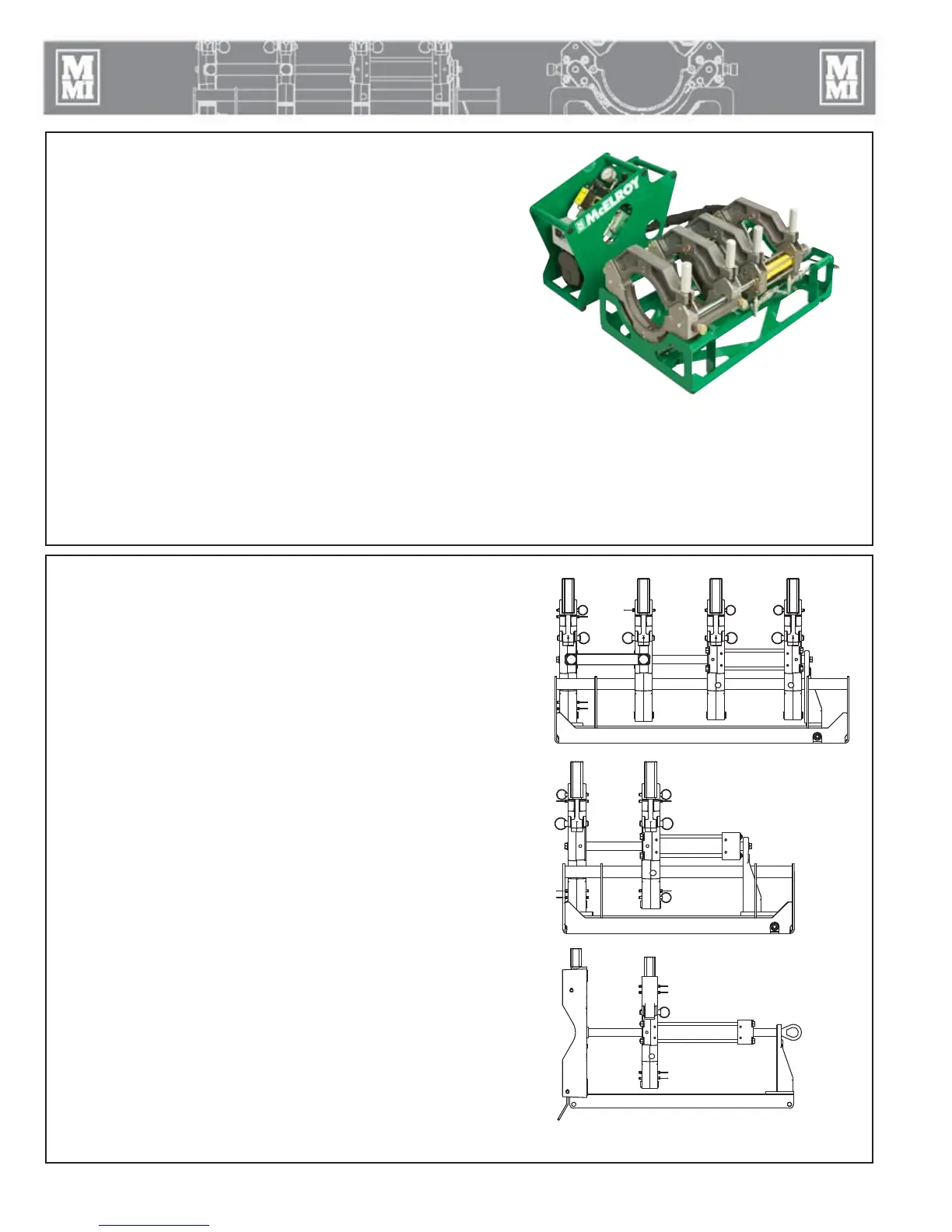

Carriage Assembly
The DynaMc EP carriage assemblies are available in a 4-Jaw,
2-Jaw and sidewall models and are operated by the DynaMc EP
Hydraulic Power Unit (HPU).
The 4-Jaw EP carriage assembly consists of two fixed jaws and
two hydraulically operated movable jaws bolted to a skid.
For fittings, the inner fixed jaw can be connected to the movable
jaws on the carriage for a 3 movable 1 fixed jaw configuration.
The 2-Jaw EP carriage assembly consists of one fixed jaw and one
hydraulically operated movable jaw bolted to a skid.
The 28 Sidewall EP machine can also be used with the EP HPU.
The 28 Sidewall Ep has one movable jaw and a tailstock that
attaches to the main. The carriage attaches to the main by the use
of chain clamps.
All EP carriage assemblies use an EP HPU to pressure the
hydraulic cylinders to move the jaws.
TX03097-4-12-10
Overview
Introduction to the Electric Pump (EP) Fusion
Machines
The McElroy DynaMc® Electric Pump (EP) fusion machines
are hydraulically operated fusion machines designed to fuse
thermoplastic pipe.
When fusing thermoplastic pipe materials, refer to the pipe
manufacturer's fusion procedures or appropriate joining standard.
The 28 model fuses 2" IPS (63mm) through 8" DIPS (225mm)
maximum pipe.
The 412 model fuses 4” IPS (110mm) minimum to 12" DIPS
(340mm) maximum pipe.
The 250 model fuses 63mm (2" IPS) minimum to 250mm (8" DIPS)
maximum pipe.
The 28 Sidewall fuses branch saddles up to 8" DIPS outlet with up to 9 5/8" diameter base on any size main.
All models utilizes the Electric Pump (EP) Hydraulic Power Unit (HPU) to provide hydraulic power to the machines.
TX03092-04-08-14
2 - 2
CD00829-4-7-10CD00830-4-7-10CD00828-4-7-10
