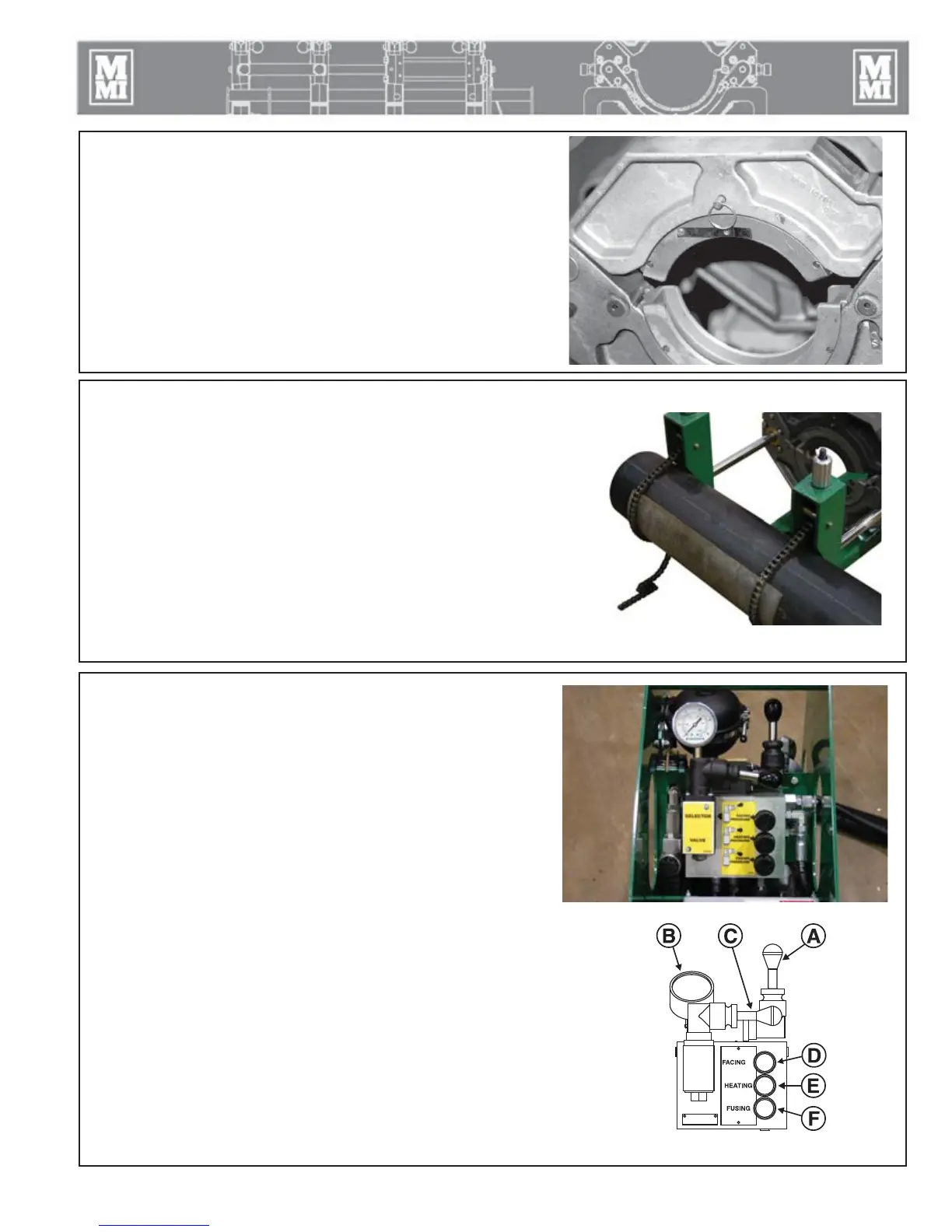

Attach Carriage Assembly to Main
Place the machine on the main.
Place a line bolster on main opposite the carriage assembly if
required.
Position the tailstock chains around the main and lock into the
chain hooks.
Tighten the machine onto the main using the tailstock clamp
knobs.
TX04024-4-12-10
Install Clamping Inserts
Select and install appropriate clamping inserts in the movable
jaw.
TX04023-4-12-10
Special Operations
-
Saddle Fusion Procedure
PH00304-9-23-93
5 - 2
PH00387-9-21-94
Hydraulic Manifold Block
Mounted on this block are a carriage directional control valve, a
pressure reducing selector valve, three pressure reducing valves,
and a 1500 psi gauge.
A) The carriage control valve, mounted on the top of the
manifold, determines whether the carriage is moving left, right,
or is in neutral.
B) A 1500 psi gauge is mounted on top of the manifold.
C) The selector valve, mounted on the front of the manifold,
selects a reduced pressure from one of the pressure reducing
valves.
Each pressure reducing valve is labeled with a different function.
IMPORTANT: These functions are labeled for standard butt fusion.
For saddle fusion the top valve is used for fusion pressure, the
middle valve for heat/soak pressure and the bottom valve for
initial heat (bead-up) pressure.
D) The top valve adjusts pressure to a maximum of 400 psi.
E) The middle valve adjusts pressure to a maximum of 400 psi.
F) The bottom valve adjusts pressure to a maximum of 1500 psi.
TX04051-4-12-10
PH04142-4-12-10
CD00138A-9-12-94
