Butt Fusion Procedure
3 - 5

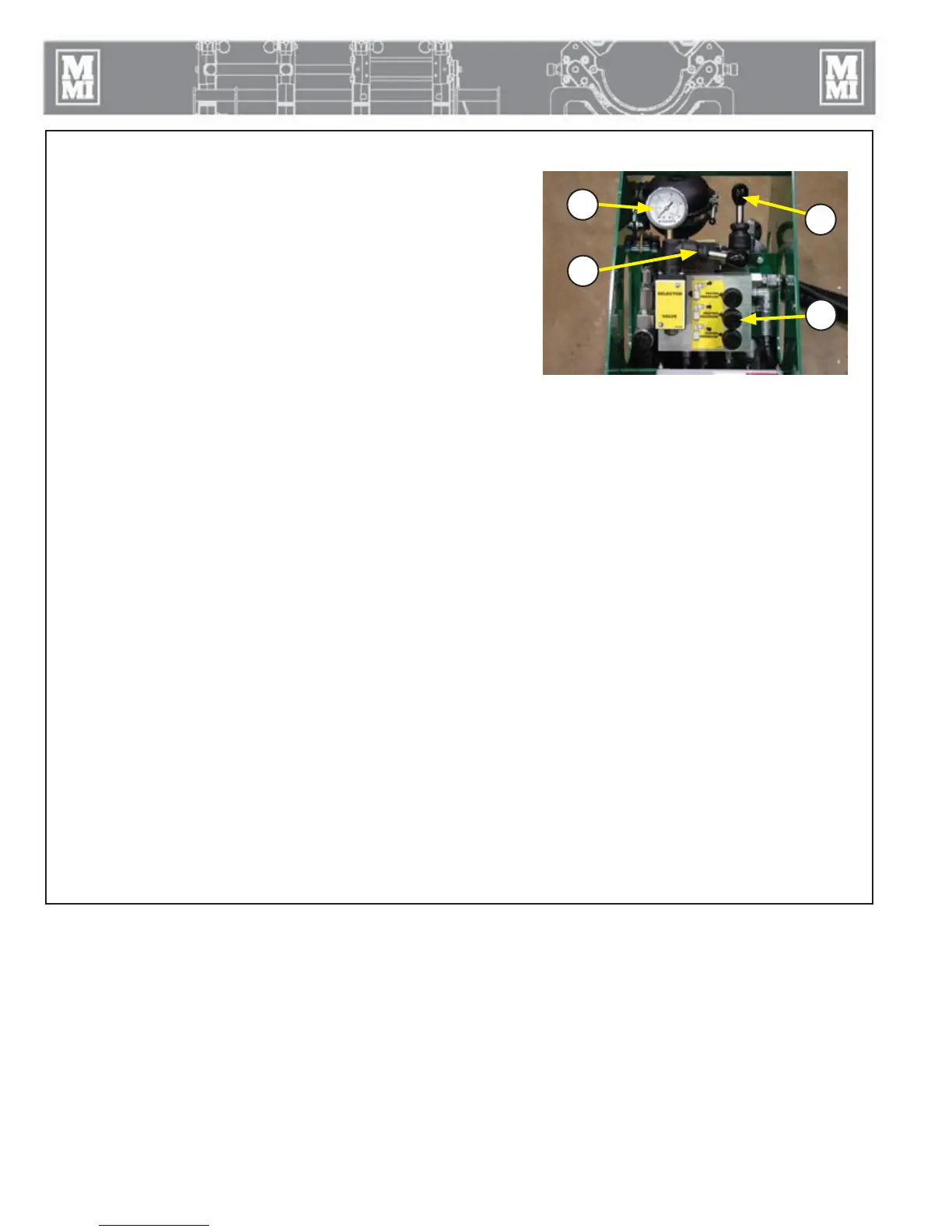

Hydraulic Pressure
The pressure gauge above the manifold block indicates the pressure
at the carriage control valve. The pressure shown on the gauge is
determined by the position of the selector valve and the pressure setting
of the selected pressure reducing valve.
TX04052-4-12-10
PH04140-4-12-10
A - Carriage Control Valve
B - Pressure Gauge
C - Pressure Selector Valve
D - Pressure Reducing Valves (3)
C
B
A
D
