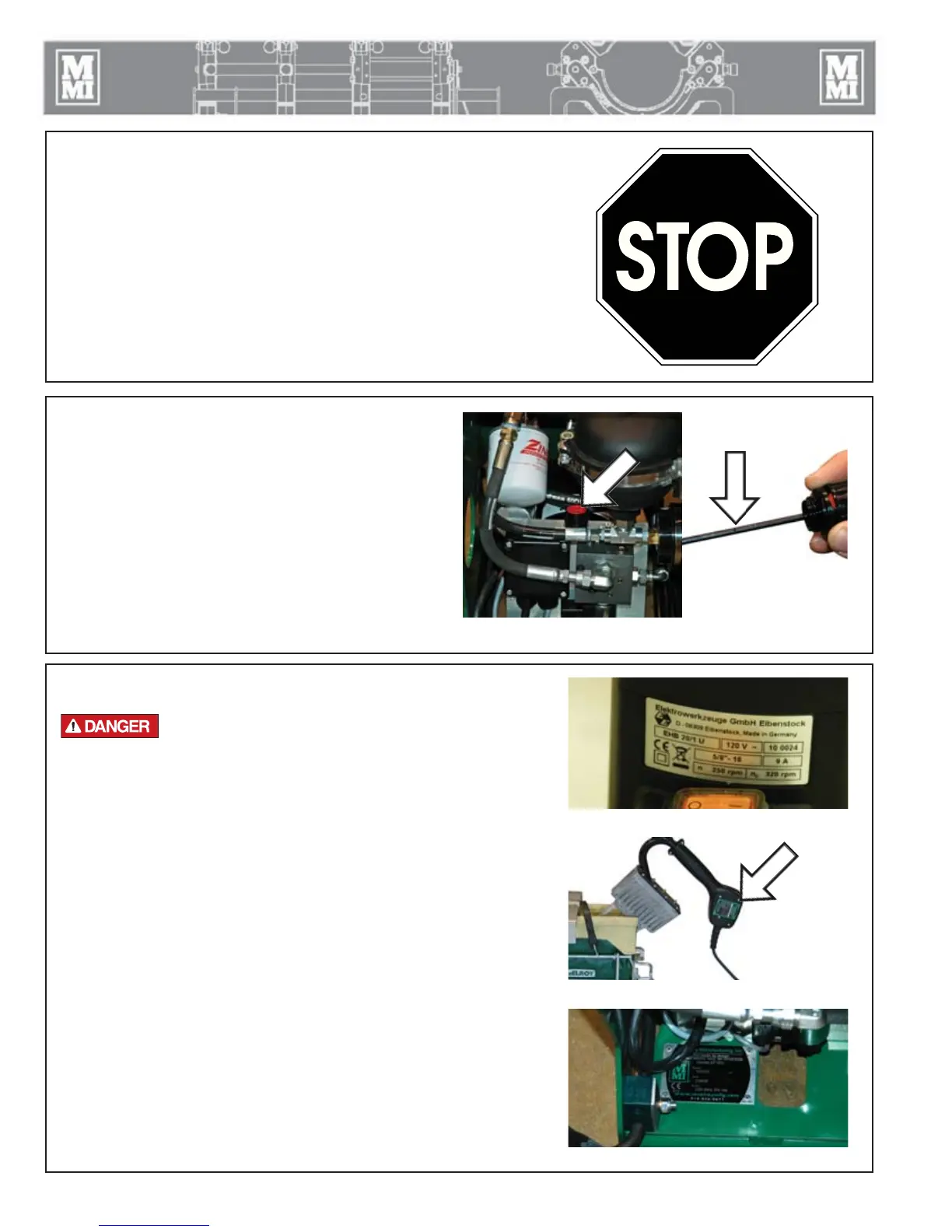

Check Fluid Level
Before connecting to power and with the machine off,
unscrew the dipstick and check the fluid level. The fluid
level should be within ± 0.25" of the notch of the dipstick.
IMPORTANT: Ensure HPU is on a level surface. Unscrew the
dipstick and wipe clean with a lint-free cloth. Screw dipstick
in completely then remove to check fluid level.
Refer to the "Hydraulic Fluids" section of this manual for
hydraulic fluid recommendations.
TX04000-03-24-14-
Connecting to Power
All electrical equipment and power sources must
be located in a non-explosive atmosphere. Failure
to do so will result in serious injury or death.
Each device must be connected to a source rated for each device's
power requirements. Each device has a plate or label with the
device's power requirements.
Consult generator sizing form in the back of this manual to
determine the proper size generator to power all electrical
equipment.
TX04001-03-24-14
Read Before Operating
Before operating this machine, please read this manual
thoroughly, and keep a copy with the machine for future
reference.
When fusing thermoplastic pipe materials, refer to the pipe
manufacturer's suggested procedures or appropriate joining
standard.
TX04688-03-25-14
Butt Fusion Procedure
STOP-12-22-92
3 - 1
PH04136-4-12-10PH04145-4-12-10
PH04132-4-12-10PH03874-4-12-10PH04141-4-12-10
FACER
HEATER
HPU
