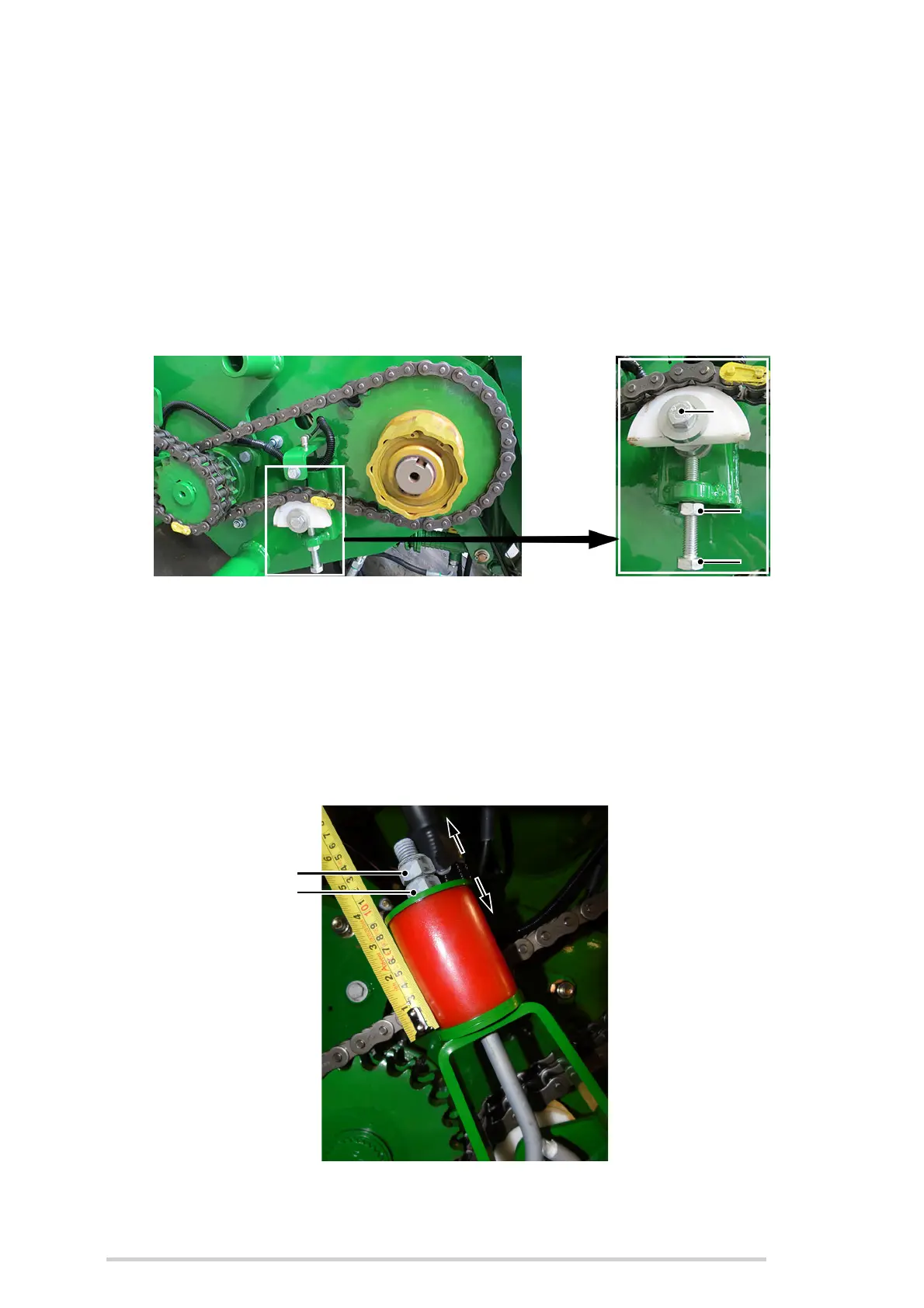

9.17.4 Reel drive chain adjustment
To adjust the reel drive chain the use of both a 17 mm and 19 mm spanner and socket
are required.
1. Using 17 mm tools, loosen (A) anti-clockwise by approx.1 turn.
2. Using a 19 mm spanner, loosen locknut (B).
3. Tighten setscrew (C) until there is little or no sagging of the chain and retighten
bolt (A).
4. Retighten locknut (B).
9.17.5 Rotor duplex chain adjustment
To adjust the duplex chain the following tools are required; two 24 mm spanners.
1. Hold the lower nut and loosen the upper nut.
2. To tighten - screw down the lower nut in the direction (T).
3. When the chain is at the required tension, screw down the upper nut.
4. Lock the two nuts together to secure in place.
B
A
C
L
T
Upper nut
Lower nut
