McHale V Series Baler
39
5.7 Making connections to the tractor
The following connections to the machine are required for attachment behind the tractor:
1. ½” male quick-release for door open (max. flow 70 l/min)
2. ½” male quick-release for door close (max. flow 70 l/min)
3. ½” male quick-release for pick-up reel up (drop floor / knives up) *
4. ½” male quick-release for pick-up reel down (drop floor / knives down) *
5.
½”
female quick-release for return line (must be free flow to tank)
6. Hydraulic-brake coupling (or two air-brake couplings), if brakes are fitted
7. 12 V / 7-pin lighting socket
8. Machine loom to control box
9. 1 ⅜”, 6-spline PTO shaft set to 540 rpm (1,000 rpm optional). For North
American markets, a 1 ⅜”, 21-spline 1,000 rpm PTO shaft is optional.
* With either the drop floor or the knife diverter valve activated

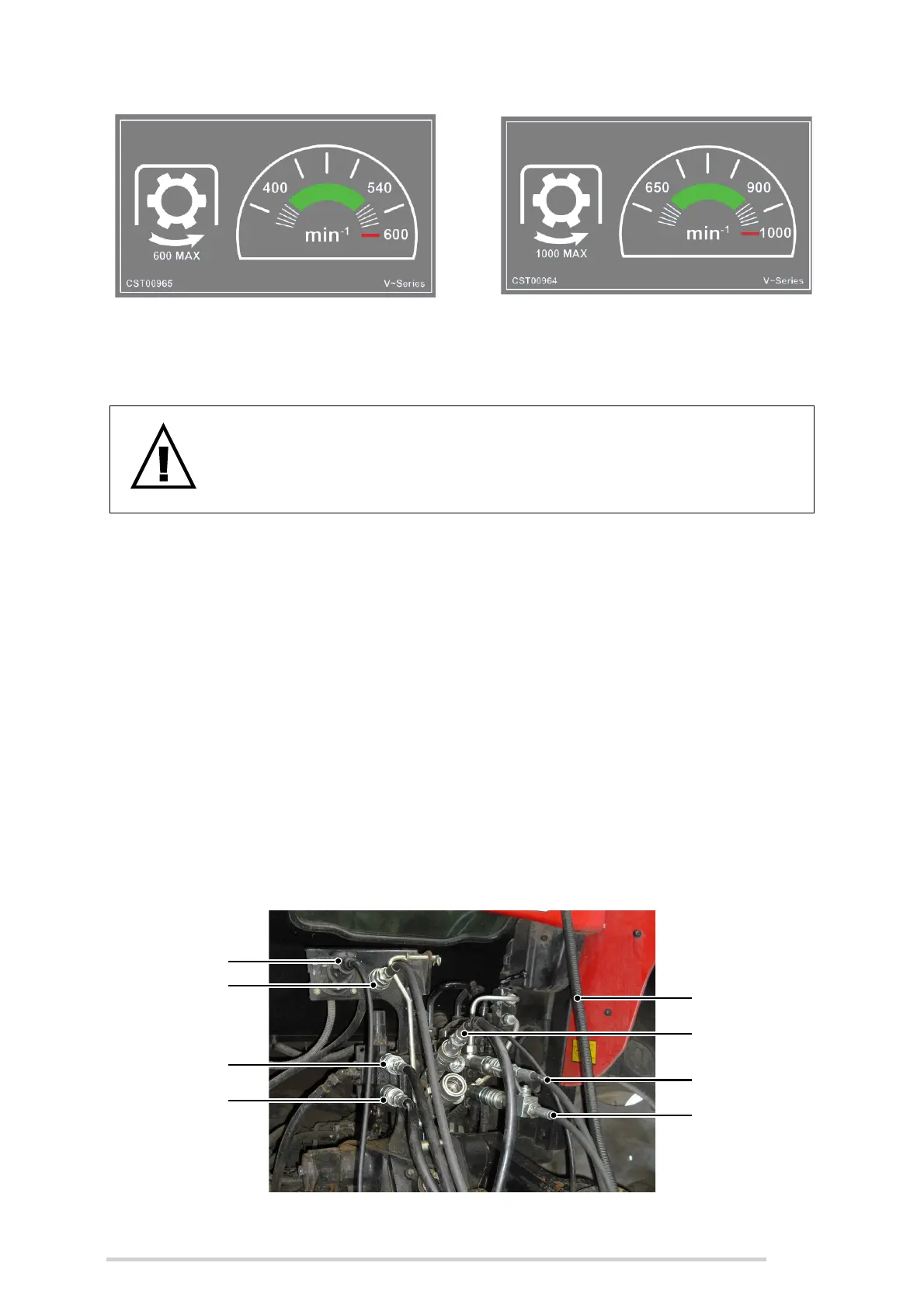

See the following image for possible hosing layout. Ensure that the machine operator
is familiar with all tractor connections and fittings.
Possible layout of hydraulic hosing and electric looms
WARNING: Turn off tractor before connecting hydraulic hosing
When connecting hydraulic hosing to the tractor, ensure that the tractor
engine is turned off and that the ignition key is removed. Ensure that all
hydraulic connections are correctly tightened.
540pm gearbox setting
1,000 rpm gearbox setting
