Page 159 Speed Level Series - Service & Parts Manual
January 2019Section 9 - Troubleshooting - 3084ES Models

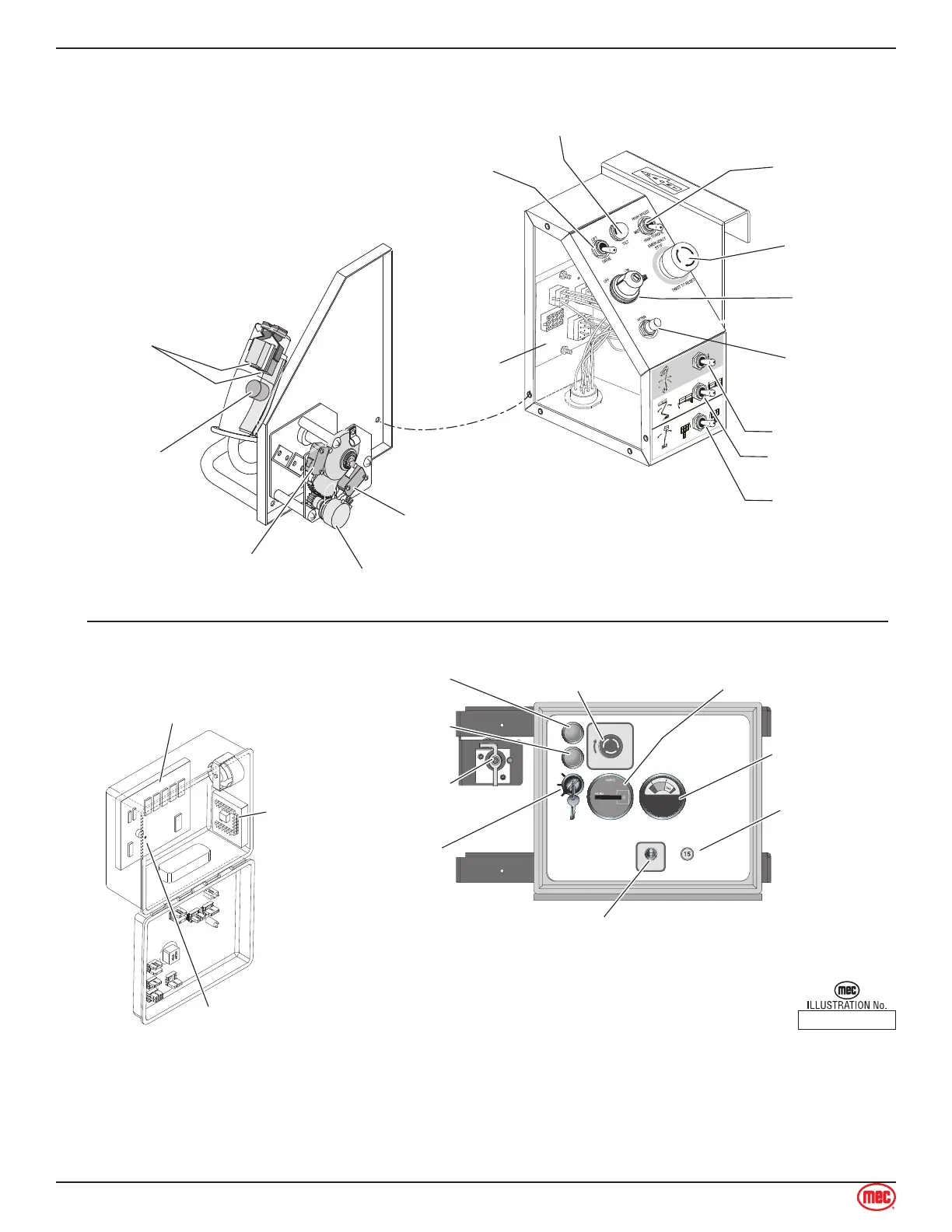

Component Illustrations
ART_3162
GP400
Module
Diagnostic LED
Lower Controls
Upper Controls
Terminal
Block
Module
91864
PLATFORM
BASE
OFF
PUSH FOR EMERGENCY
STOP
TWIST TO RESET
RAISE
LOWER
15 AMP
BREAKER
EMERGENCY
LOWERING
Master
Disconnect
Switch
PLATFORM
OFF
BASE
LOWER
(Green)
RAISE
(Green)
EMERGENCY STOP
HOUR METER
Charge Indicator
15 AMP
BREAKER
EMERGENCY
LOWERING
Forward/Up
Rocker Switch
Potentiometer
Reverse/Down
Rocker Switch
Enable Switch
Micro-Switches
Steering
3084ES
Controls
GP400
Matrix Module
MODE SELECT
91843
LIFT
DRIVE
HIGH SPEED
MID RANGE
HIGH TORQUE
EMERGENCY
STOP
TILT Light (ANSI)
Overload Light (CE)
HORN (Optional)
AUTO LEVEL
MANUAL LEVEL
(Front to Rear)
MANUAL LEVEL
(Side to Side)
OFF / RUN
