Page 49 Speed Level Series - Service & Parts Manual
January 2019Section 6 - Electrical System

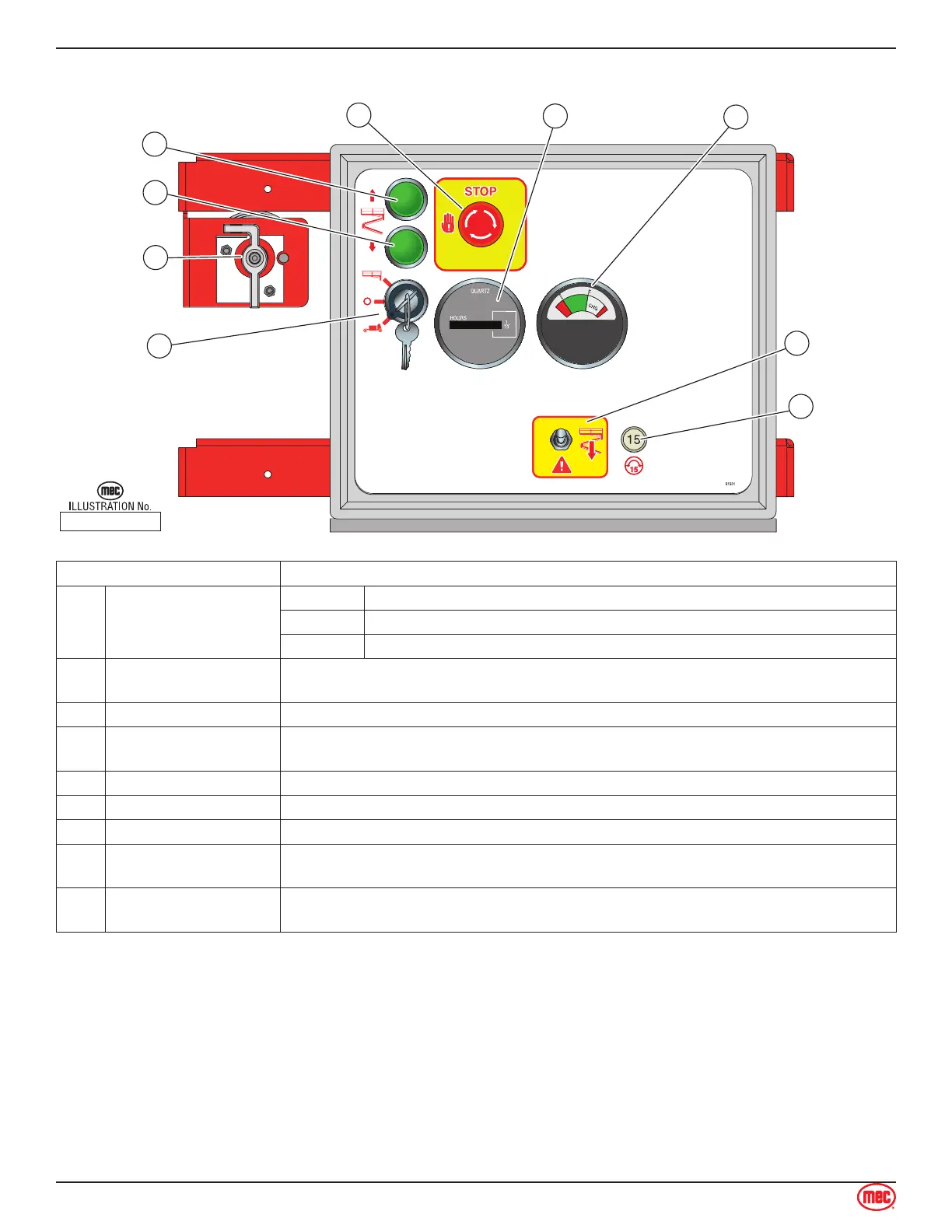

Lower Controls - 3084ES Electric
ART_3245
Emergency Stop
Hour Meter
Circuit
Breaker
5
Charge Indicator
6
4
Keyswitch
Lower
(Green)
Raise
(Green)
1
Battery
Disconnect
8
2
3
7
Emergency
Lowering
9
Control Description
1
Selector Switch (Key
Can Be Removed In
Any Position)
Platform Select to operate from the platform control panel.
Base Select to operate from the base control panel.
Off Select to stop operation from either control panel.
2 Raise Button
Press and hold to elevate the platform. Release to stop elevation. Throttle
activation is automatic.
3 Lower Button Press and hold to lower the platform. Release to stop lowering.
4
Emergency
Stop Switch
Press to stop all machine functions.
Turn clockwise to reset.
5 Hour Meter Indicates total elapsed time of machine operation.
6 Charge Indicator Indicates state of battery charge.
7 Circuit Breaker Trips when there is excessive electrical load. Push to reset.
8 Battery Disconnect
Battery power supply. Turn OFF and padlock to secure machine from unauthorized
use.
9
Emergency
Lowering Switch
Push and hold the toggle switch Down to fully lower the platform.
