Page 42 Speed Level Series - Service & Parts Manual
January 2019Section 5 - Hydraulic System

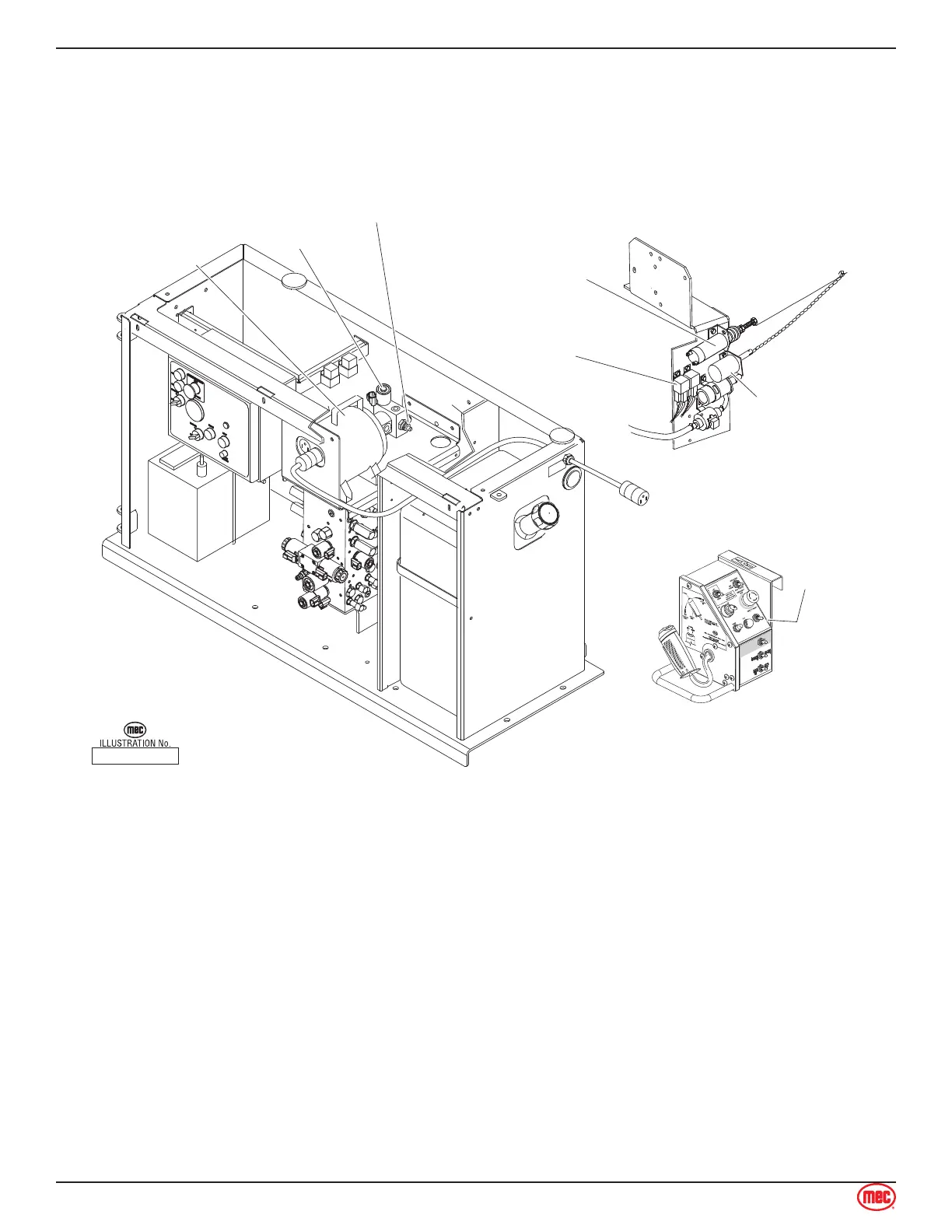

Generator Option - 3084RT
Note:Refer to Parts Sections 15 and 16.
This option is available only on model 3084RT.
ART_3150 R1
91843
AUTOLEVEL
MANUAL LEVEL
HOLD SWITCH UNTIL
LEVELING IS
COMPLETE
HOLD SWITCHIN
DESI
RED DIRECTION
Frontto Rear
Side to Side
Control
Module
Generator
Relay
Upper
Controls
Generator
Solenoid Valve
Speed Control Valve
Generator
Idle Control
Solenoid
Engine
Throttle Control
Solenoid
Generator
Switch
