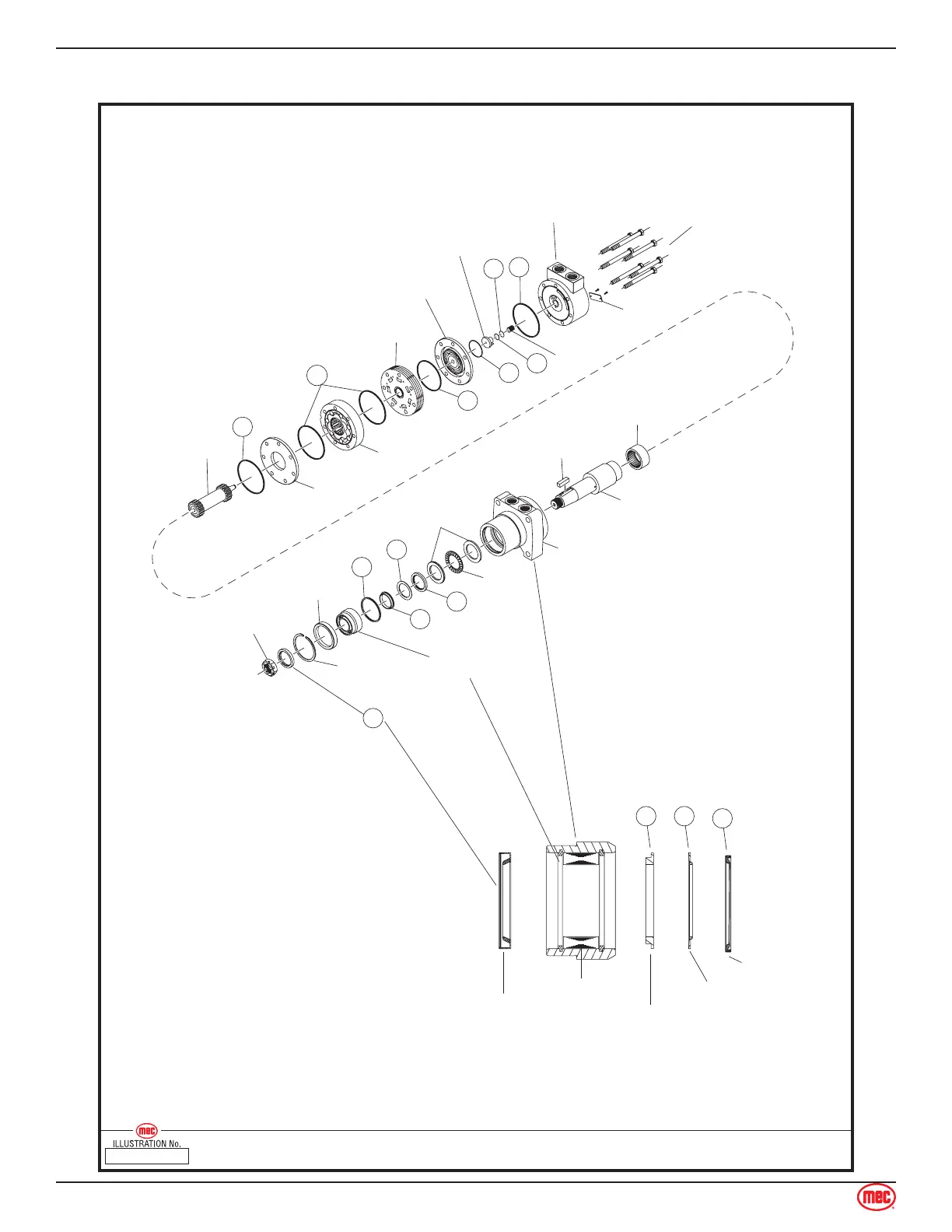

Page 231 Speed Level Series - Service & Parts Manual
January 2019Section 14 - Axles
Wheel Motor, Front
ART_2701 R2
Wheel Motor, Front
DT701 Series Motor Components
Assembly Bolts (7)
I.D. Tag
Assembly
Endcover
Piston
Spring
Rotor
Assembly
Divider
Plate
Endcover
Piston
Commutator
Assembly
Drive
Link
Manifold
Rear Housing
Bearing
Shaft
Housing
Shaft Key
Thrust
Washers (2)
Thrust
Bearing
1.5" Bearing
Retaining
Snap
Ring
Bearing
Spacer
Shaft Nut
BACKUP SEAL
1.5" BEARING
DUST SEAL
METAL BACKUP RING
SHAFT SEAL
1d1c
1e
1e
1c
1d
2b
1a
1g
1f
1g
1k
1j
1i
1h
