Mec Speed Level Series User Manual

Page 37 Speed Level Series - Service & Parts Manual
January 2019Section 5 - Hydraulic System
Platform Leveling System
There are two (2) hydraulic cylinders in the platform leveling system. These cylinders work in
conjunction with a pivot mount to allow the platform and boom to tilt front-to-rear and side-to-side in
order to provide a level work platform.
Automatic leveling is controlled by the GP400 processor.
INSIDE CONTROL MODULE
Leveling
Cylinder
Front to Rear
Platform Leveling
Manifold
Platform Leveling
Manifold
SV3 SV1
Main Manifold
Leveling
Cylinder
Side to Side

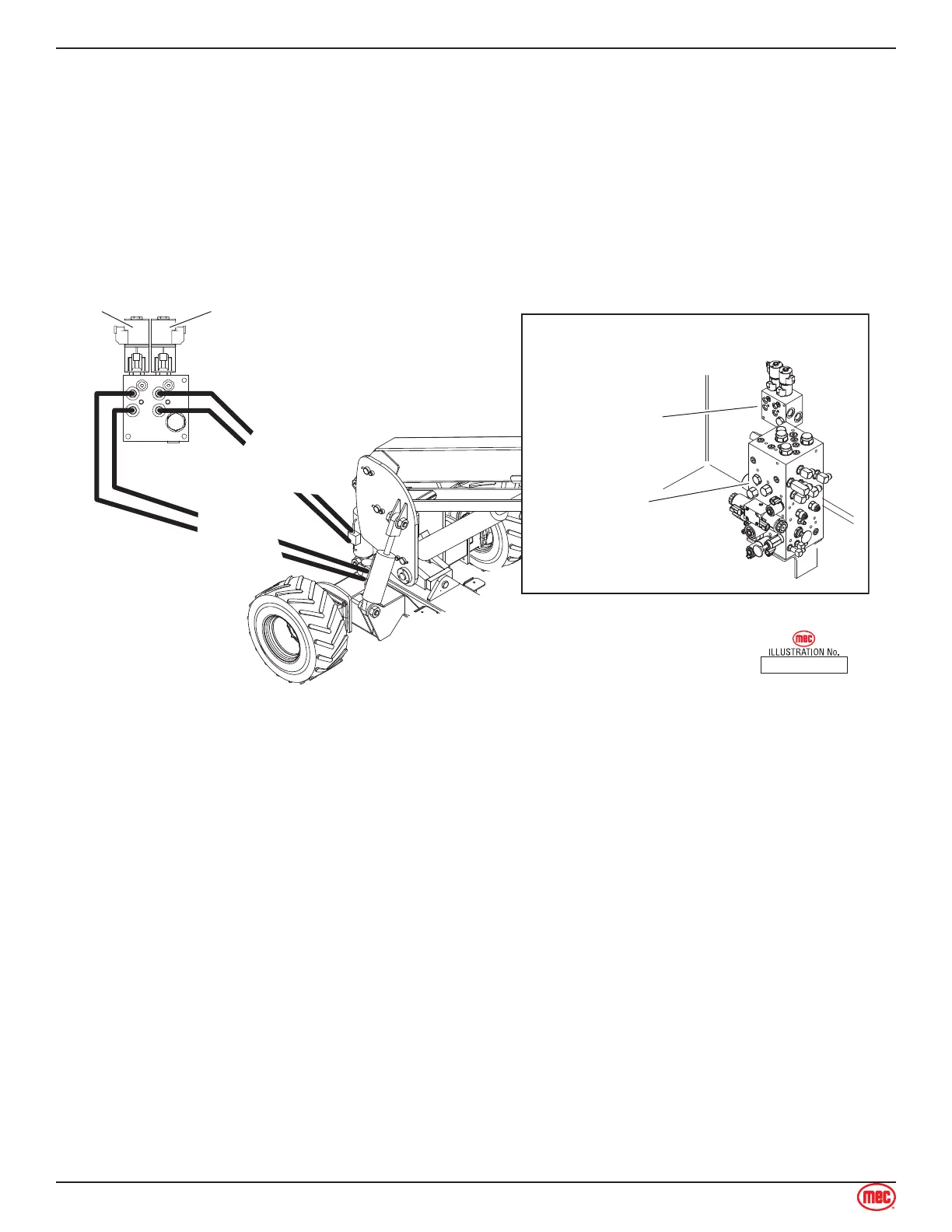

ART_3135
