January 2019Section 5 - Hydraulic System

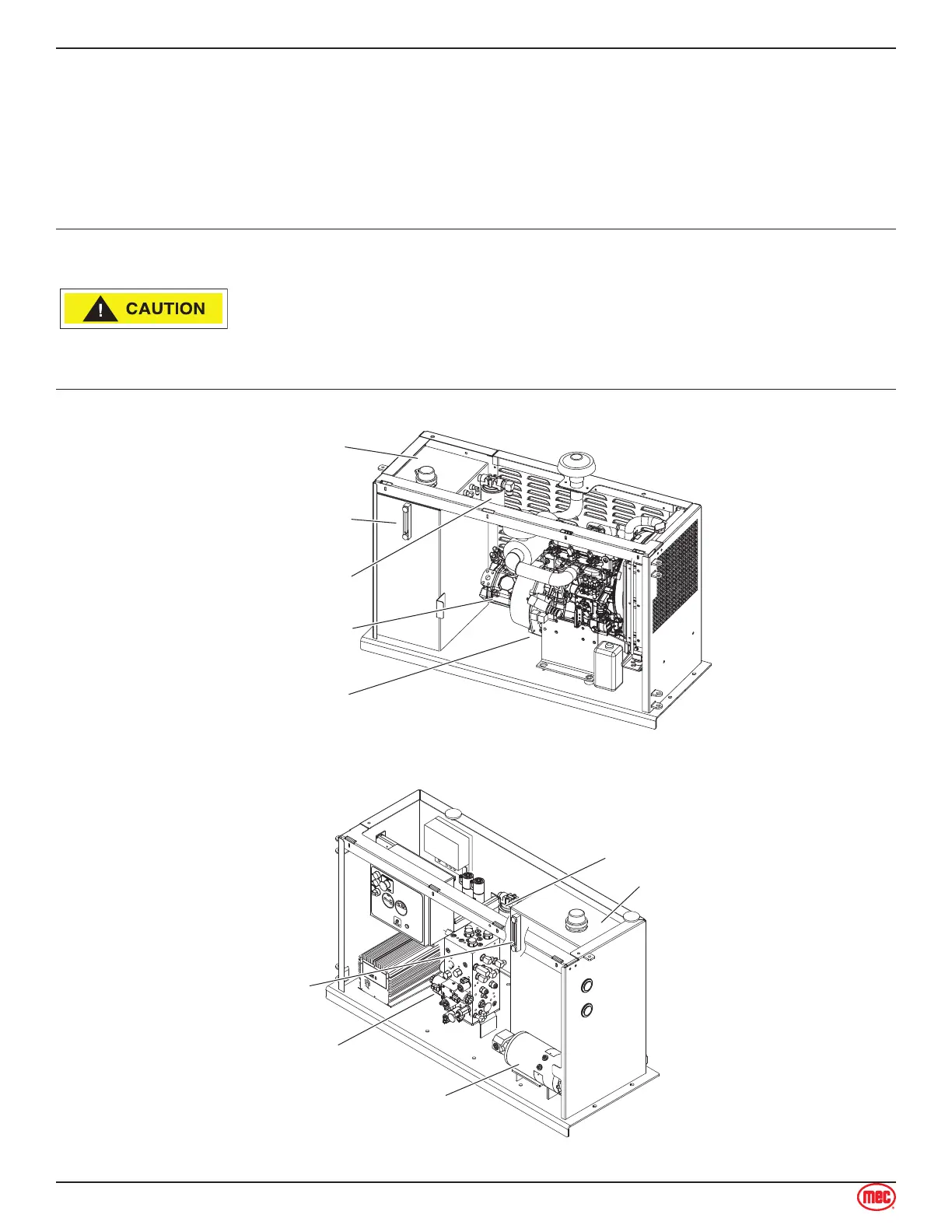

Hydraulic Fluid Reservoir
Consists of the reservoir, a filler cap with breather, a drain plug, a sight gauge, and a bypass filter with
a 10 micron filter element.
Check reservoir for signs of leakage weekly.
Hydraulic Reservoir Assembly
All machines are produced with a spin-on, bypassing filter. When the filter is
clogged, hydraulic flow bypasses the filter element. The filter element must be
changed every six (6) months or 500 hours. Extremely dirty conditions may
require that the filter be replaced more often.
Beware of hot fluid. Contact with hot fluid may cause severe burns.
ART_3132
Power Module
3084RT
Hydraulic
Reservoir
Hydraulic Fluid
Filter
Hydraulic Fluid
Sight Gauge
Hydraulic Fluid
Pump
Engine
15 AMP
BREAKER
Hydraulic
Reservoir
Hydraulic Fluid
Filter
Hydraulic
Fluid Sight
Gauge
Hydraulic Fluid
Pump and Motor
Main
Hydraulic
Manifold
ART_3282
Controls Module
3084ES
•
