Page 35 Speed Level Series - Service & Parts Manual

January 2019Section 5 - Hydraulic System

Floating Axle Lock Cylinders

Note:Refer to Cylinder Repair.

Refer to Section 7 for Remove and Install instructions.

Refer to the Parts Manual Section 15 for parts list.

There are two (2) cylinders in the floating axle system. These cylinders allow fluid to transfer from

one side to the other while the platform is in the stowed position. When the platform is elevated, the

electrically operated valve closes, preventing fluid flow and thereby locking the cylinders.

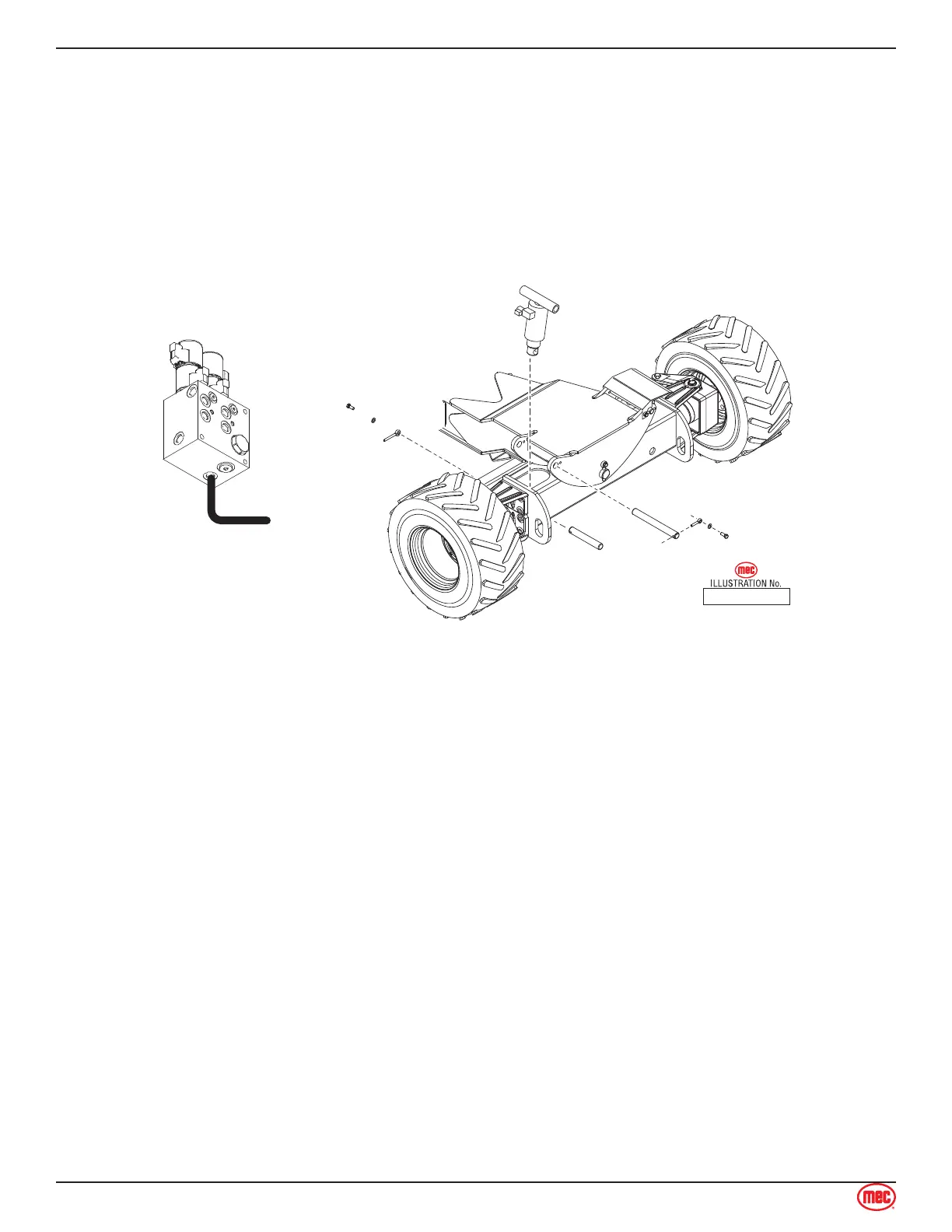

ART_3134

to Axle Lock

Cylinders

Platform Leveling

Manifold
