Page 165 Speed Level Series - Service & Parts Manual
January 2019Section 10 - Schematics

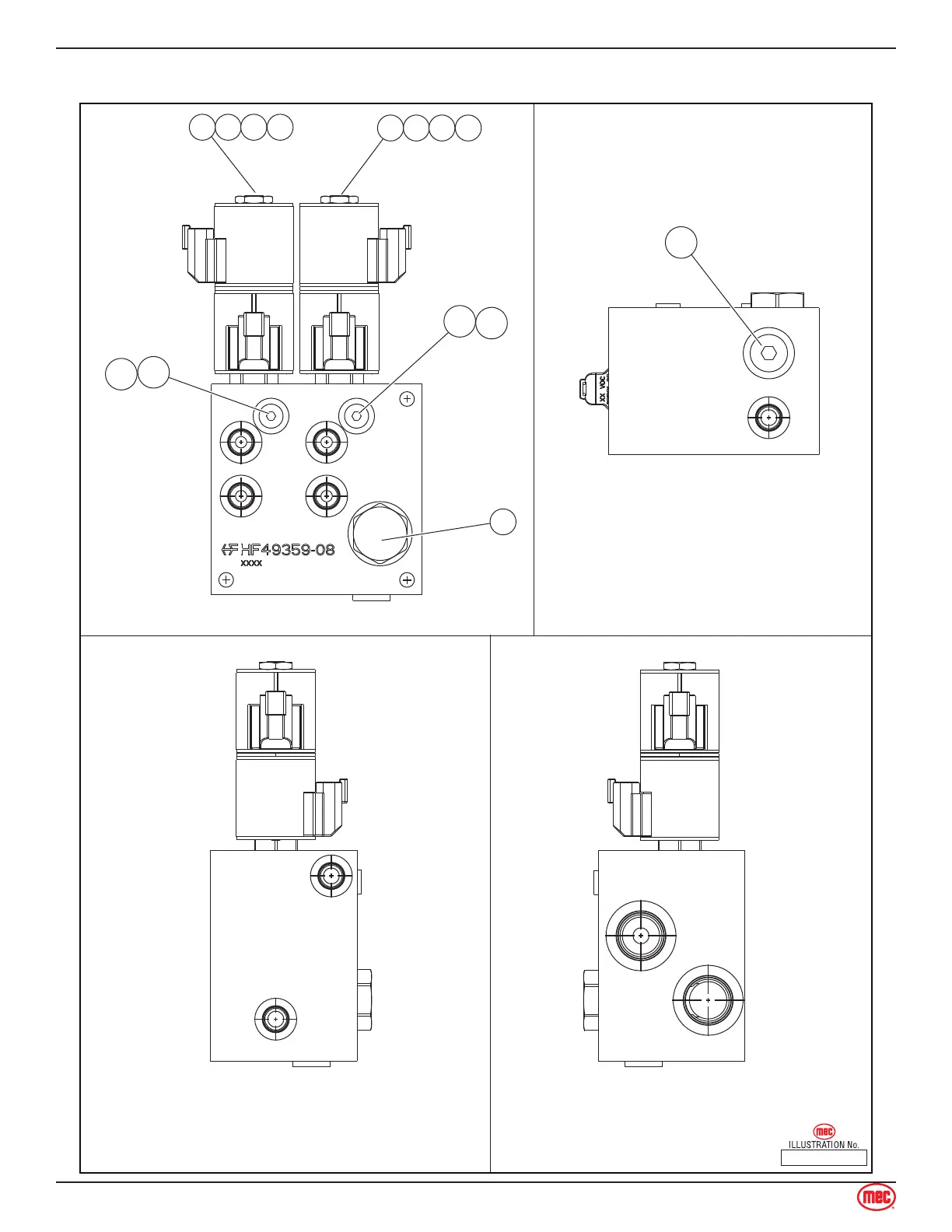

3084 All Models - Hydraulic Manifold Tilt M2
ART_3111
LC1A
LC2A
OA
LC1B
LS
P
T2
T1
LC2B
PLG4
ORF4
PLG4
ORF5
PLG8
SV9CV3 CL1 CL1
SV8CV4
CV5
CL1 CL1
FRONT
RIGHTLEFT
BOTTOM
3084
All Models
