Page 44 Speed Level Series - Service & Parts Manual
January 2019Section 6 - Electrical System
Diagnostic LED
If the machine fails to operate, inspect the GP400 Module located inside the control box. The LED
located on the processor should be ON. If the LED is OFF or FLASHING, refer to Section 8 or 9 for
Troubleshooting.
Start Delay Light - 3084RT
The START DELAY light is located on the Lower Control box (see page 48).
The machine is equipped with a start system protective device, controlled by the GP400. This
protects the starter and related parts from damage caused by overcranking in hard starting
situations.
Maximum starter operation time is 10 seconds.
If no start, the START DELAY light will illuminate and the starter will be disabled for 35 seconds.
When the START DELAY light goes OFF the starter will operate.

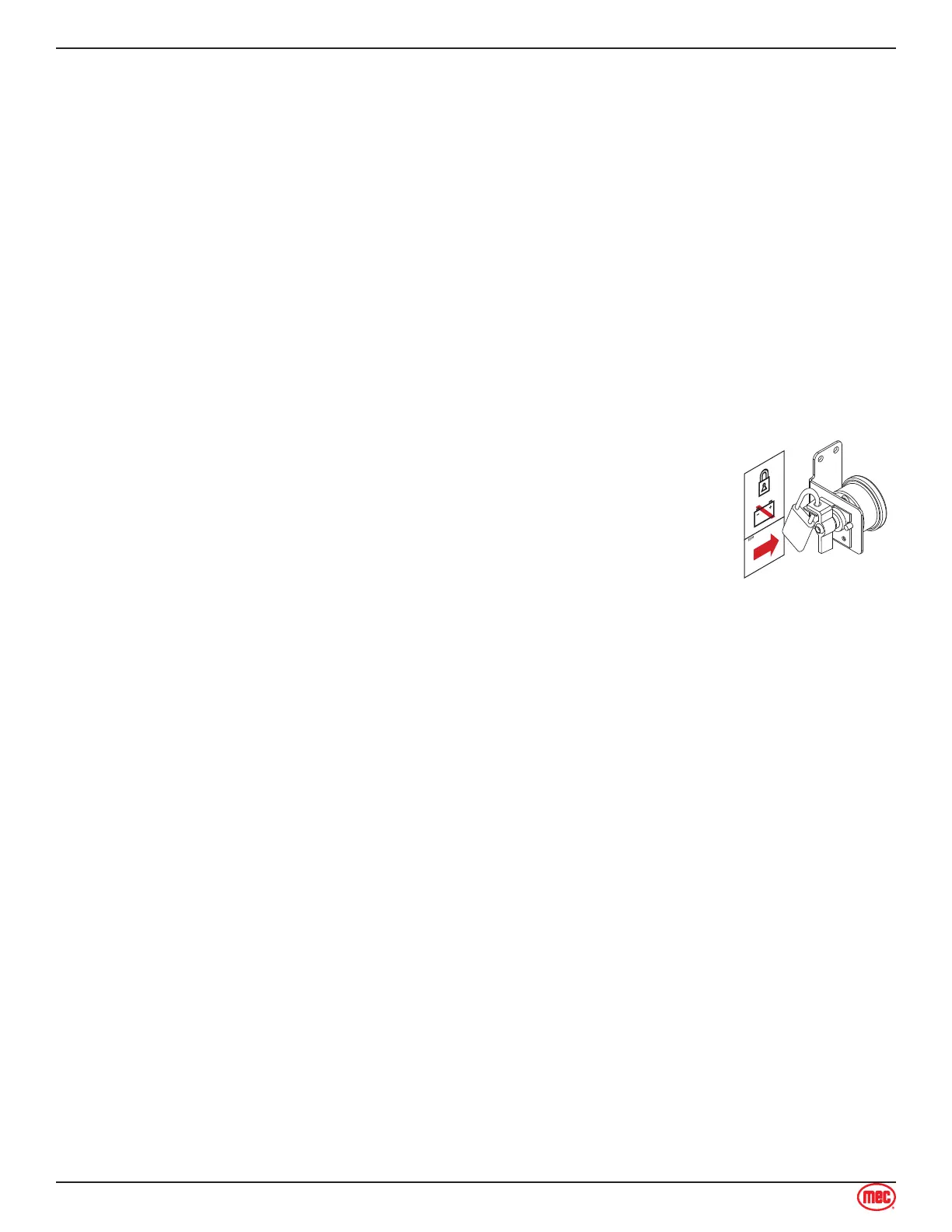

Battery Disconnect Switch
All electrical power is routed through the Master Disconnect switch located in the
Control Module. The switch can be locked in the OFF position with a padlock to
prevent unauthorized use.
