Page 73 Speed Level Series - Service & Parts Manual
January 2019Section 7 - Mechanical System
rear drive axle. Repair or replace as necessary when damage or leaks occur.
Clean all fittings before disconnecting hoses.
Tag hoses for proper reassembly.
Plug all openings immediately to prevent contamination.

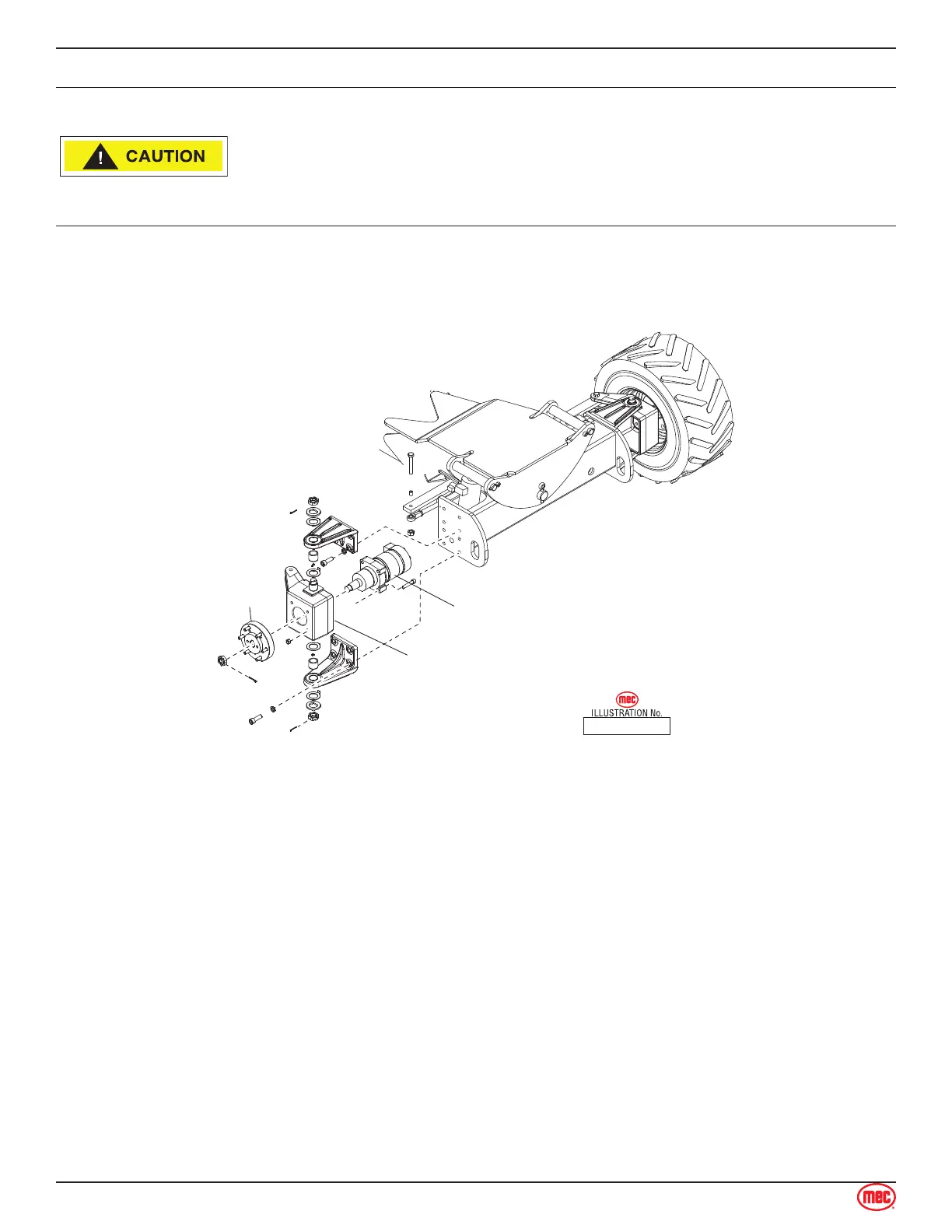

Front Drive Motors
Refer to “Lift and Support The Machine” on page 15 for instructions and safety precautions.
MOTOR
HOUSING
MOTOR
HUB
DRIVE
MOTOR
ART_3164
Remove
Raise and support the front end of machine.
Remove the wheel and tire assembly to access drive motor.
Remove the hub from the drive motor shaft using a suitable hub pulling tool. DO NOT use a
hammer on the shaft or hub as this will damage the motor.
Disconnect the cylinder end and tie-rod from the motor housing.
Turn the motor housing to gain access to the motor and hose assemblies.
Disconnect hose assemblies from drive motor. Immediately cap and plug all openings to
prevent contamination.
Remove the cap screws and remove the drive motor.
Replace
Installation is reverse of removal.
Use Loctite® on mounting bolts.
1.
2.
3.
4.
5.
6.
7.
1.
