mecalac 12 MXT - Lifting and Handling in the Transverse Position with Standard Stabilizers

28000 12MXT
M1 13

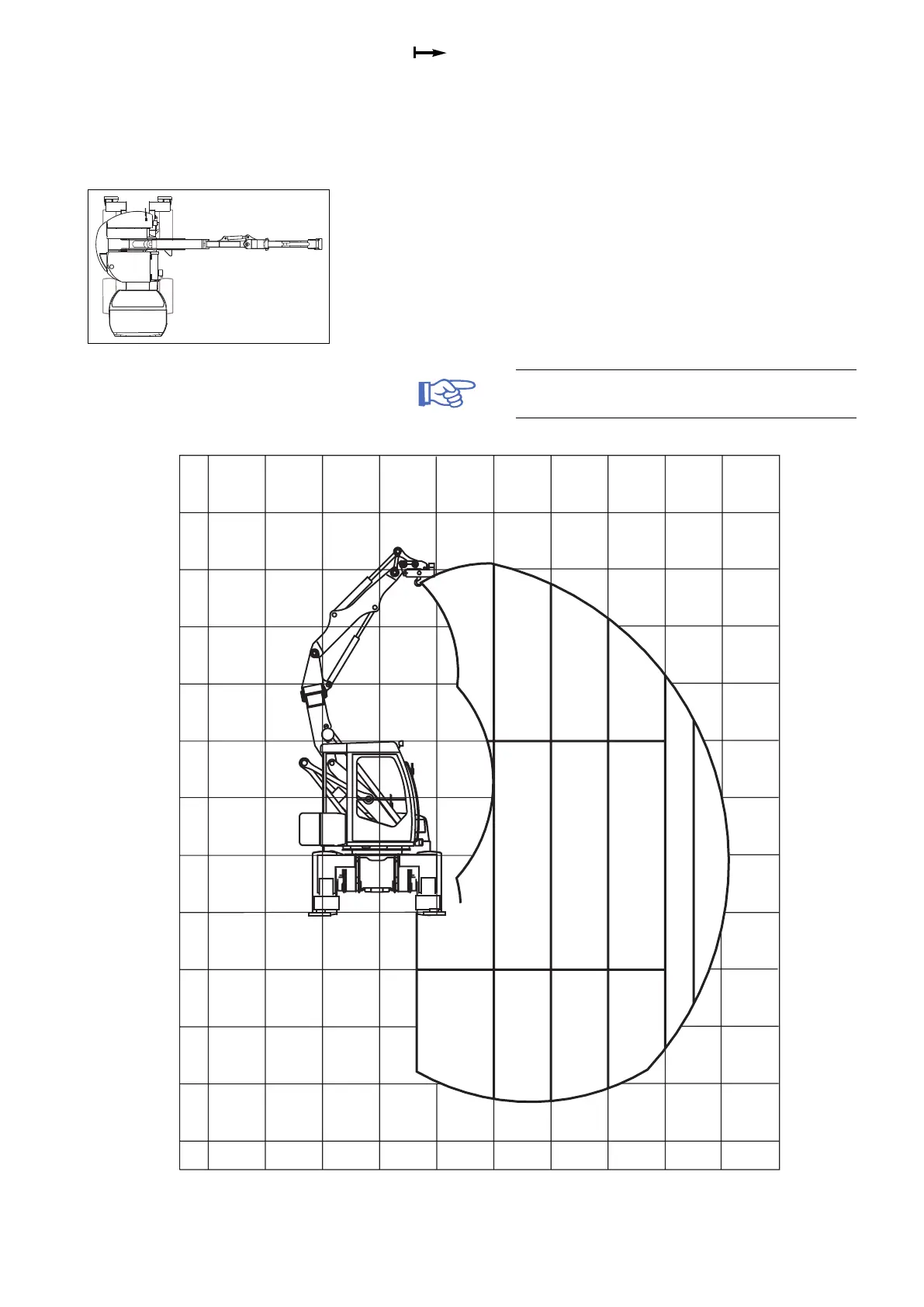

5.3 Lifting and handling in the transverse position
with standard stabilizers
Working conditions:
- On wheels with the stabilizers.
- On level, compact ground.
- Equipment used without any offset.
- Front and rear chassis sections aligned.
- Rear axle oscillation locked.
- Without any tool (bucket, loader, etc.) with handling plate +
hook.
Stability loads and hydraulic limits according
to standard ISO 10567.
7 m
6 m
5 m
4 m
3 m
2 m
1 m
0 m
1 m
2 m
3 m
4 m
0 m
1 m
1 m
2 m2 m 3 m
3 m 4 m
5 m
6 m
7 m
2700
2000
1600 1000
2200 1400
950
800 700
3200
3200 1900 1300
950
