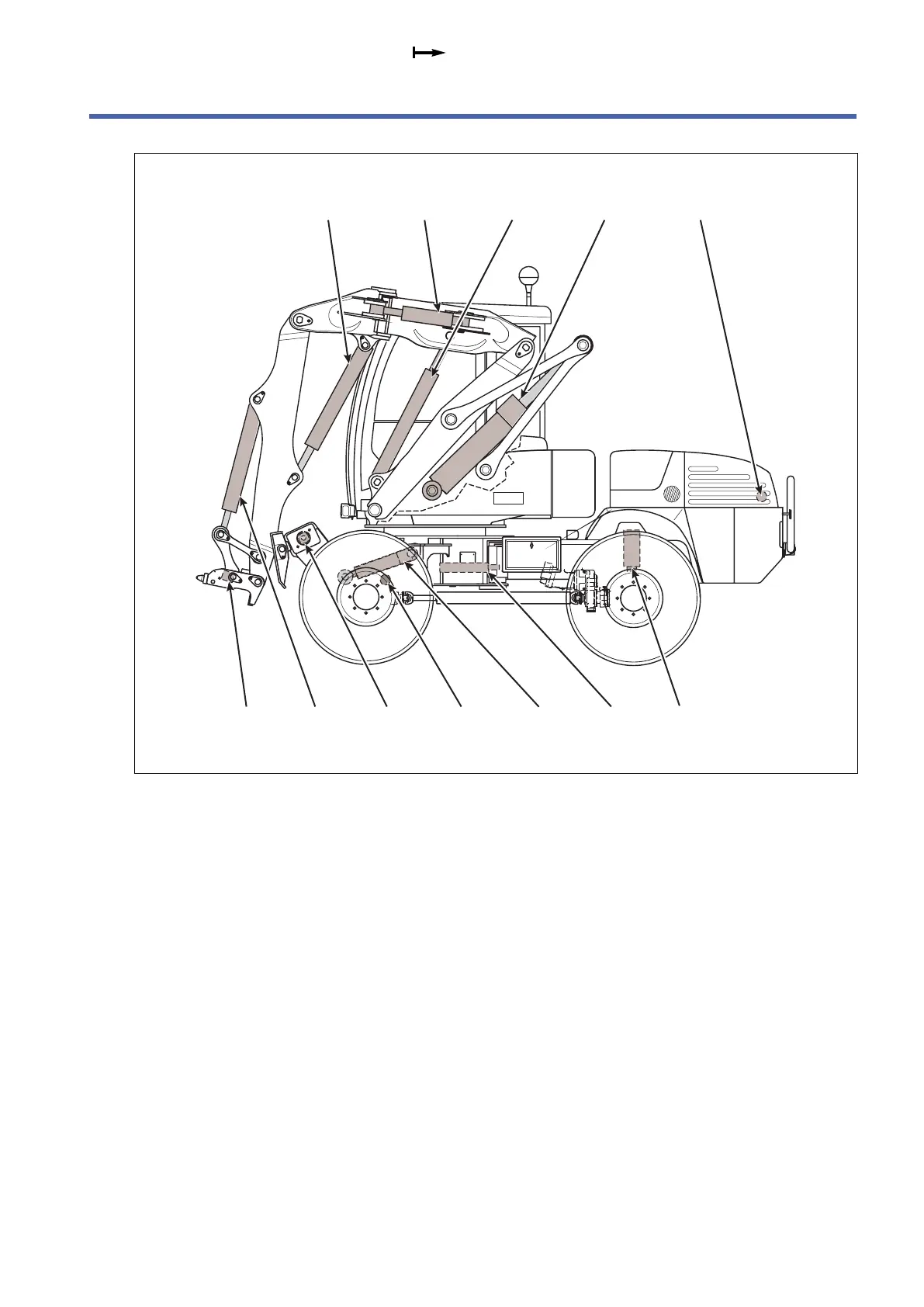

8. Location of the hydraulic components
34567
1098121112
1-Tool-holder ram
2-Bucket ram
3-Dipper ram
4-Offset ram
5-Intermediate boom ram
6-Boom ram
7-Accelerator ram
8-Oscillation locking ram
9-Steering ram
10 - Stabilizer ram
11 - Telescopic stabilizer ram
12 - Parking brake ram
