mecalac 12 MXT - Lifting and Handling in the Longitudinal Position with Stabilizers

12MXT 28000
16 M1

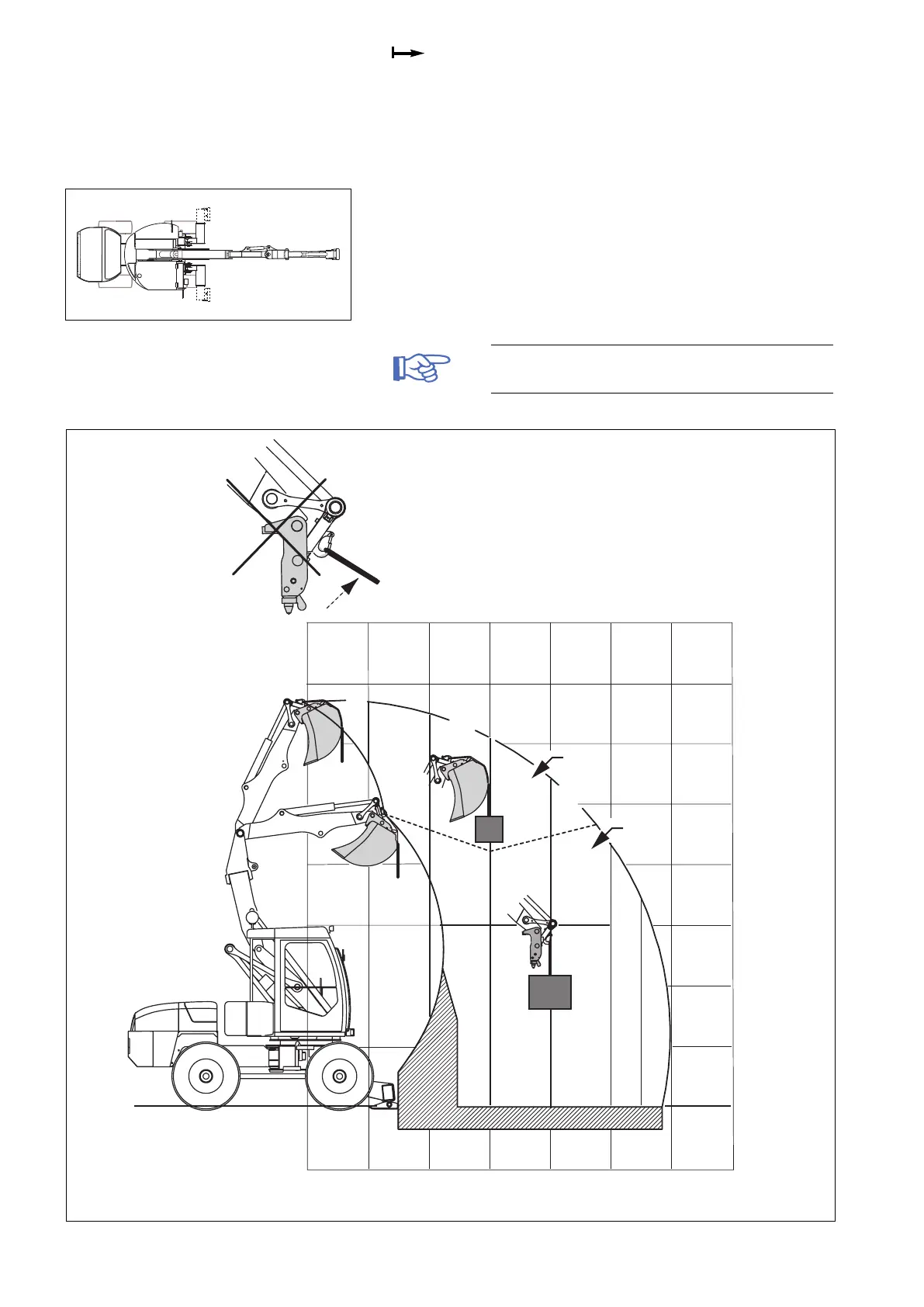

5.6 Lifting and handling in the longitudinal position
with stabilizers
Working conditions:
- On level, compact ground.
- Equipment used without any offset.
- Front and rear chassis sections aligned.
- Without any tool (bucket, loader, etc.).
- Bucket ram always full extended with hook fixed on tool-
holder rod.
Stability loads and hydraulic limits according
to standard ISO 10567.
7 m
6 m
5 m
4 m
3 m
2 m
1 m
0 m
1 m
0 m
1 m 2 m 3 m
4 m
5 m
6 m
7 m
2500
2000
1750 1450
1450
2400
2000
1400
1150
1300
1700
1800
2500
ZONE A
ZONE B
ZONE A: Bucket is necessary
ZONE B: With bucket, deduct 300 kg from table values
