mecalac 12 MXT - Accelerator, Main and Parking Brake Circuits

12MXT 28000
30 M1

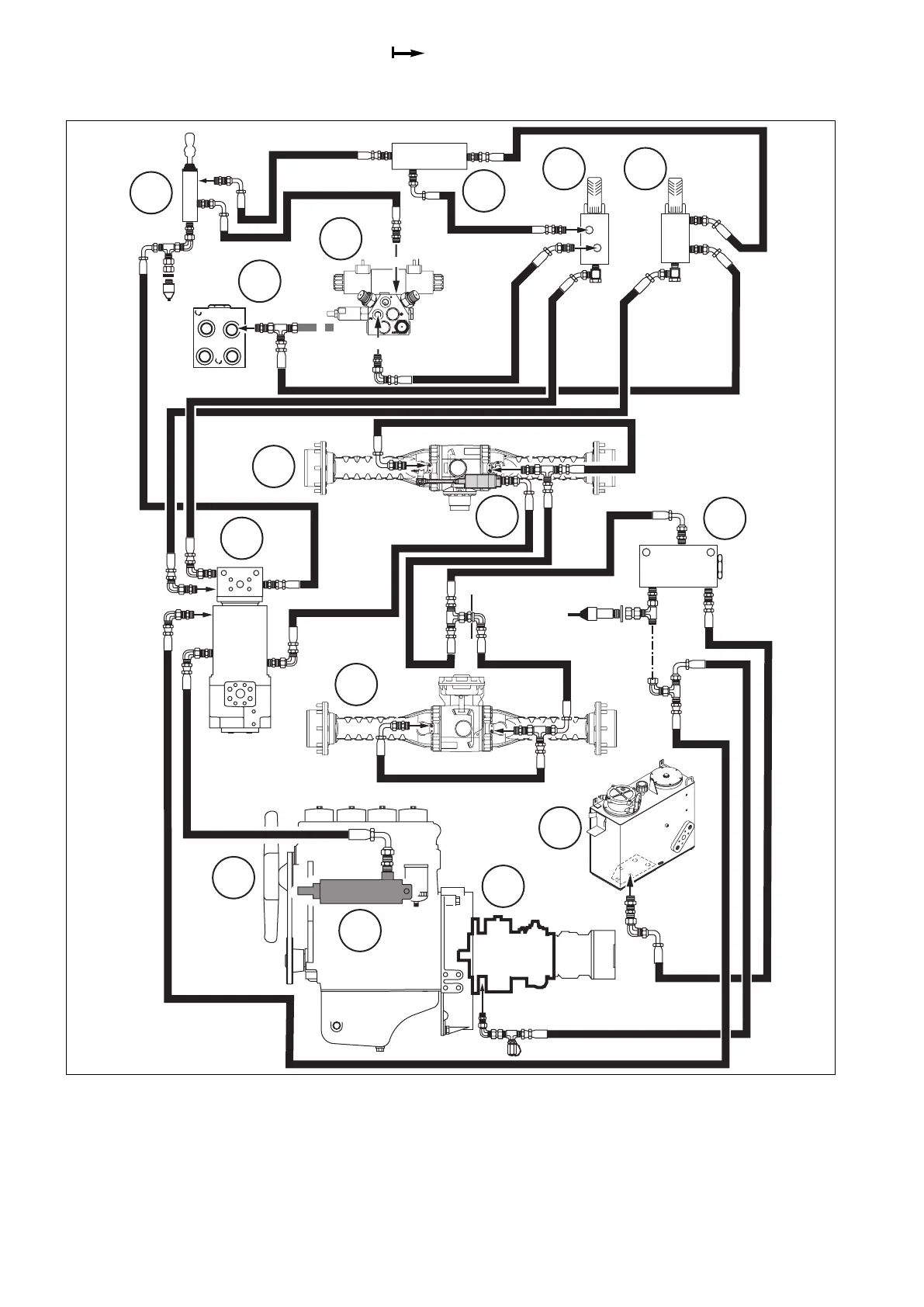

9.2 Accelerator, main and parking brake circuits
Z
A
1
P
T
T
P
7
8
6
1
2
3
10
8
1
7
7
8
10
FS
FP
T
1
P
F
P
M1
M2
B5
B7
B12
B13
B4
B6
A3
B10
B9
A1
B1
B3B2
B8
B11
A1 - Hydraulic reservoir
A3 - Transfer movement pump
B1 - Parking brake control
B2 - Brake foot control
B3 - Accelerator foot control
B4 - Parking brake ram
B5 - Front axle
B6 - Rotary coupling
B7 - Rear axle
B8 - Sequence valve
B9 - Diesel engine
B10 - Accelerator ram
B11 - Functions block (High pressure)
B12 - Drain block
B13 - Turntable rotation
