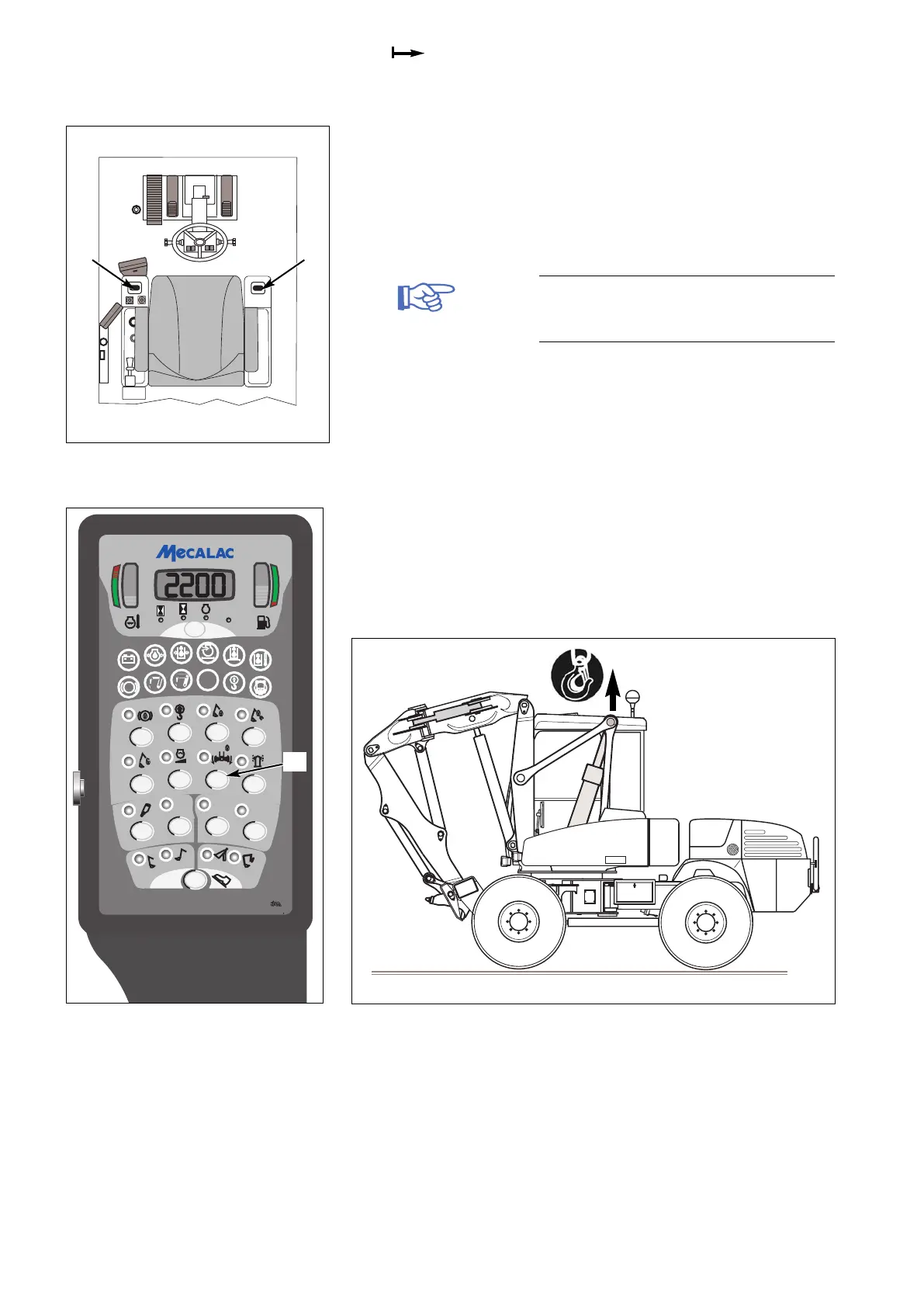

7.2 Slinging for lifting
- Put the equipment in the “boom ram vertical” position
(2 fig. 4) and (fig. 6).
- Lock the oscillation (1 fig. 5). The machine will not be
articulated.
- Lock the chassis sections using the links (1 fig. 1).
- Lock the turntable (1 fig. 2).
Note: If necessary, correct the machine’s
balance by adjusting the inclination of
the boom ram (2 fig. 4).
F2F2
EASYEASY
DRIVEDRIVE
F1F1
MODEMODE
P
Fig. 6
1
2
Fig. 5
Fig. 4
1
