mecalac 12 MXT - Adjustment Procedure; Adjustment Procedure for the Heat Engine

28000 12MXT
M1 59
14.1 Adjustment procedure for the heat engine
14.1.1 Adjustment of maximum regime
1- Loosen the lock nut and turn the stop screw
(1 fig. 1).
Note: Number of teeth on engine wheel = 159
1
13 flat spanner
4 hexagonal male spanner
Inductive sensor
Operation
Speed
(rpm)
Adjustment
(ref. no.)
Maximum regime 2,225 (+25 -25) 1 fig. 1

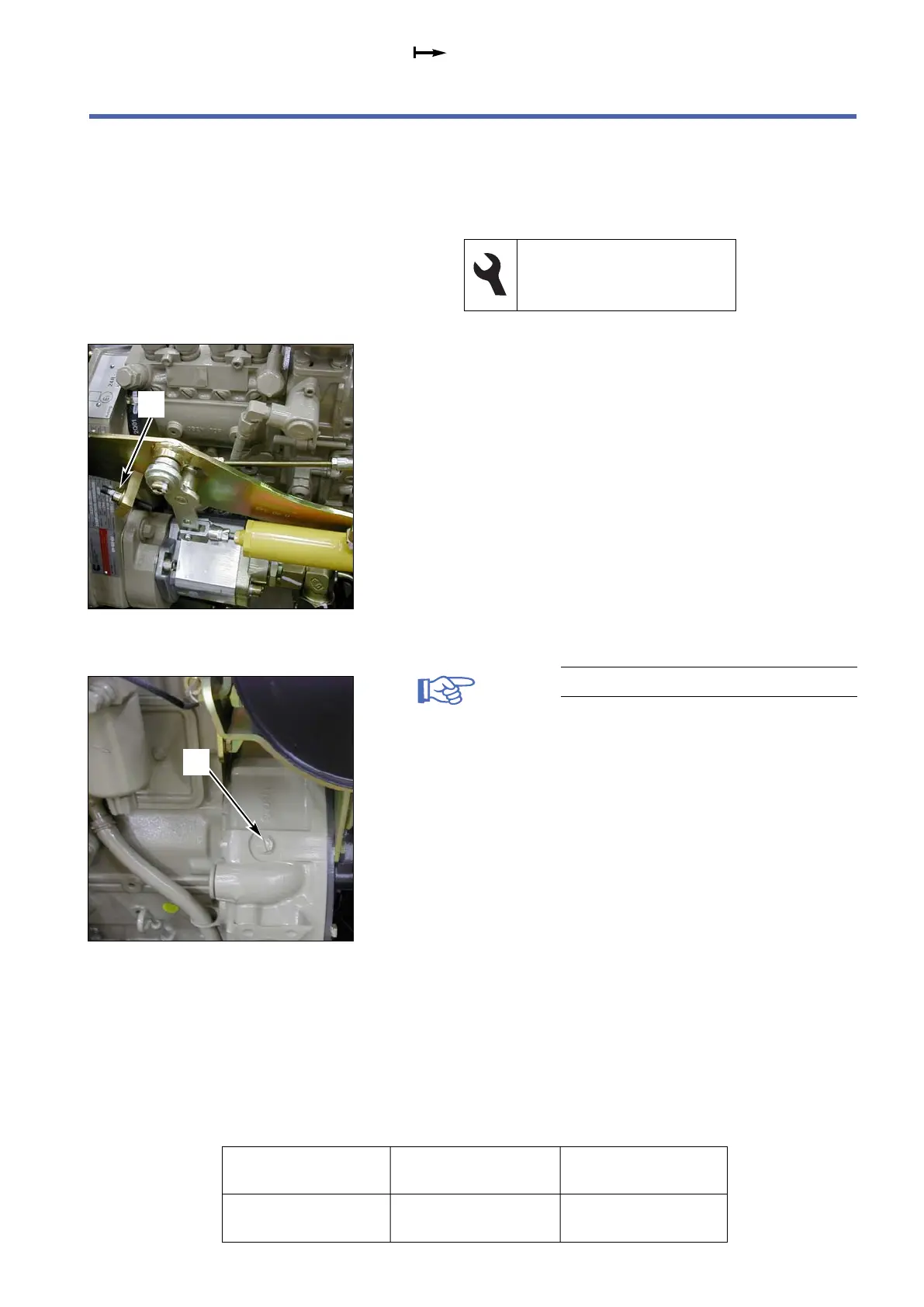

Fig. 1 Injection pump
Fig. 2 Heat engine
1
14. Adjustment procedure
