7.1 Loading on a trailer
- Install access ramps whose slope does not exceed 30% if
the trailer is not equipped with them originally.

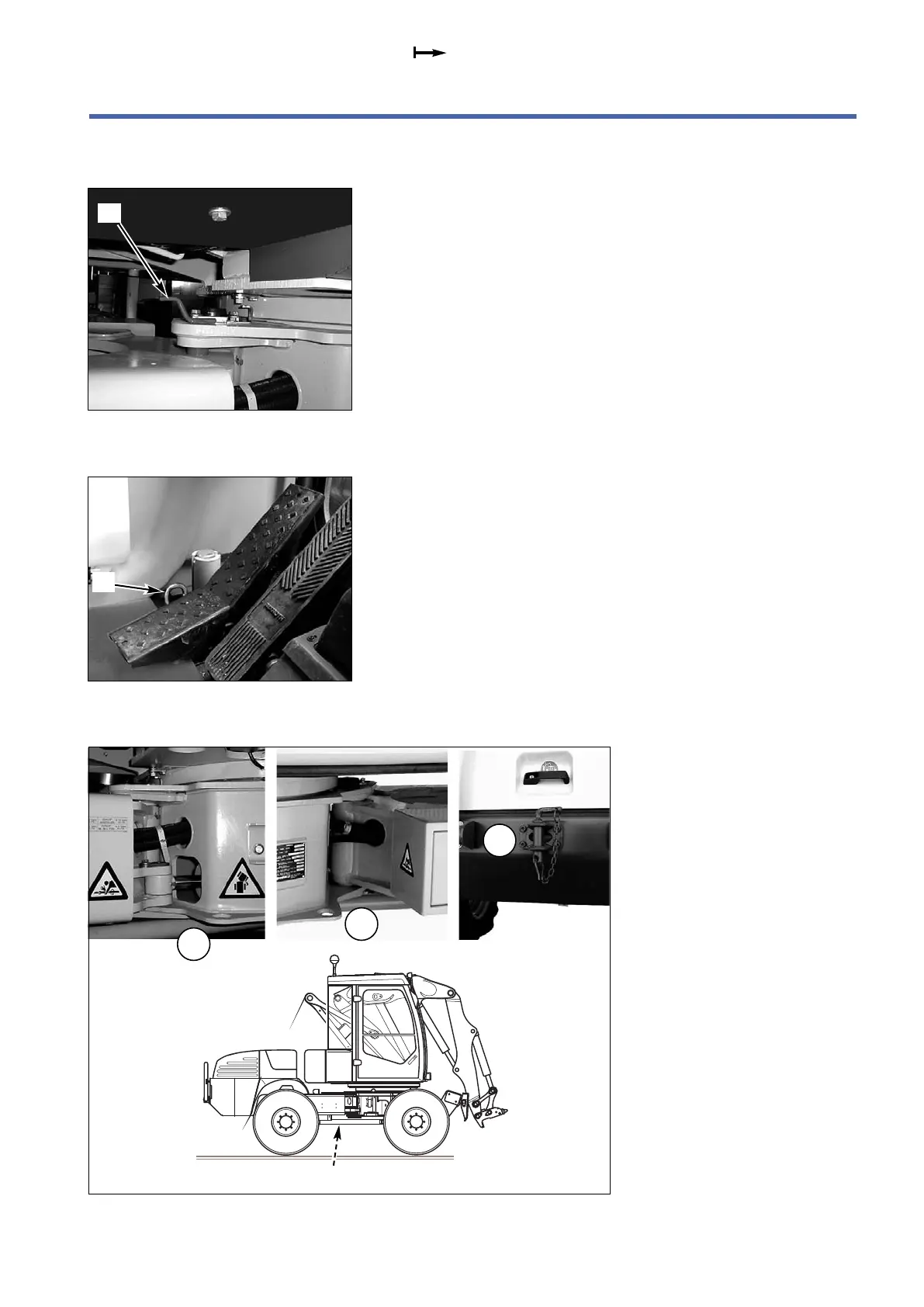

- Fastening points: (A-B-C fig. 3).
- Lock the chassis (1 fig. 1).
- Lock the turntable (1 fig. 2).
- Lower the equipment to the ground using the control
manipulators (1 and 2 fig. 4).
A
C
B
B
A
C
Fig. 3
Fig. 1
1
Fig. 2
1
