mecalac 12 MXT - Spool Valve (a; down - B; Upper)

12MXT 28000
36 M1

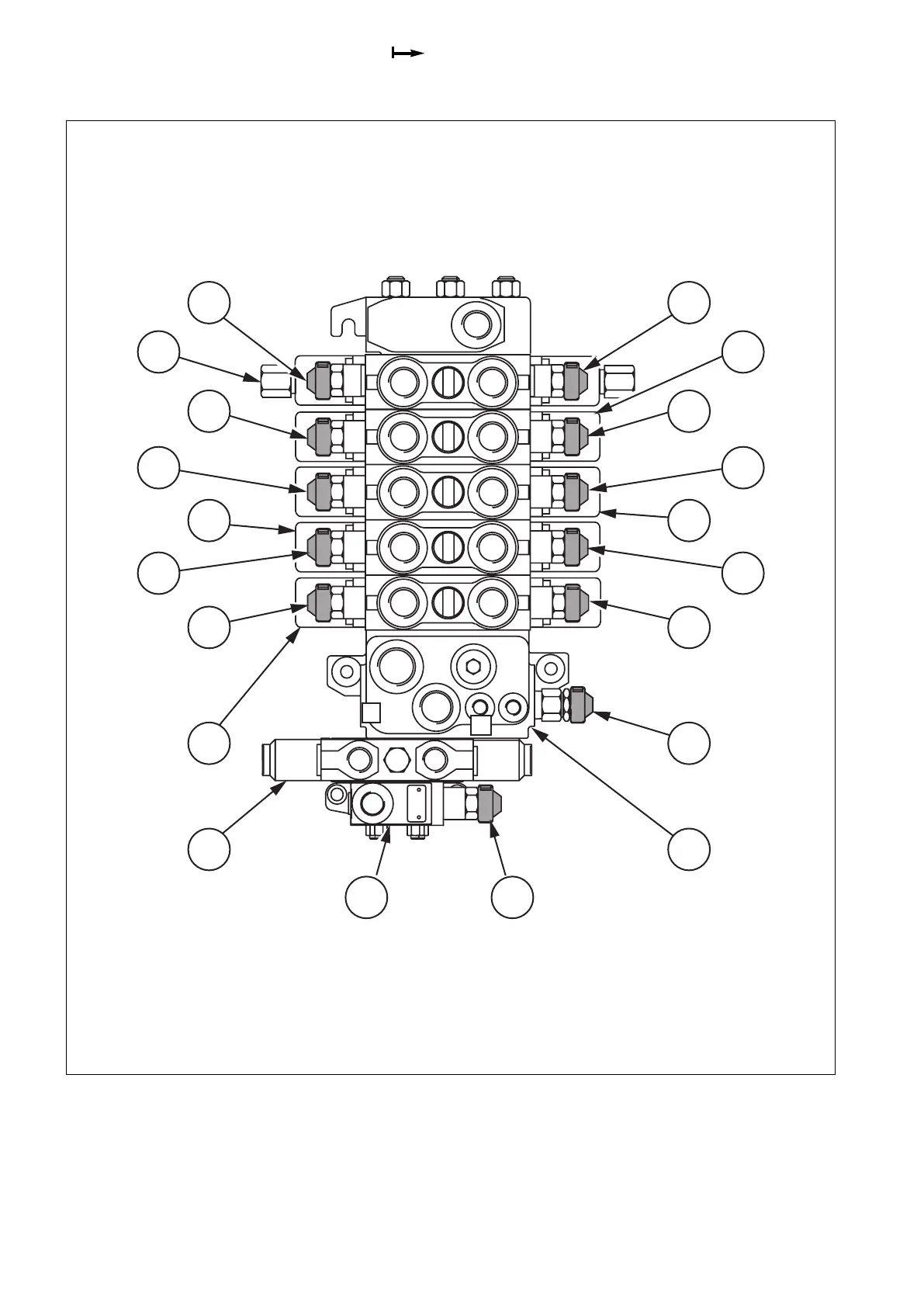

9.8 Spool valve (A / Down - B / Upper)
P1
T
M
A
B
T1
T2
LS
A
B
A
B
A
B
A
B
A B
H6
H7
H11
H11
H11 H10
H10 H10
H10
H10
H12H12
H13
H9
H3
H1
H2
H4
H5
H8
H1 - Slewing supply inlet element
H2 - Slewing control element
H3 - Equipment supply inlet element
H4 - Boom control element
H5 - Intermediate boom control element
H6 - Bucket control element
H7 - Dipper control element
H8 - “Additional functions” control element
H9 - Pressure limiter (calibration 225 bar)
H10 - Pressure limiter (calibration 400 bar)
H11 - Pressure limiter (calibration 420 bar)
H12 - Pressure limiter (calibration 180 bar)
H13 - Pressure limiter (calibration 280 bar)
