mecalac 12 MXT - Lifting and Handling in the Transverse Position without Stabilizers

12MXT 28000
14 M1

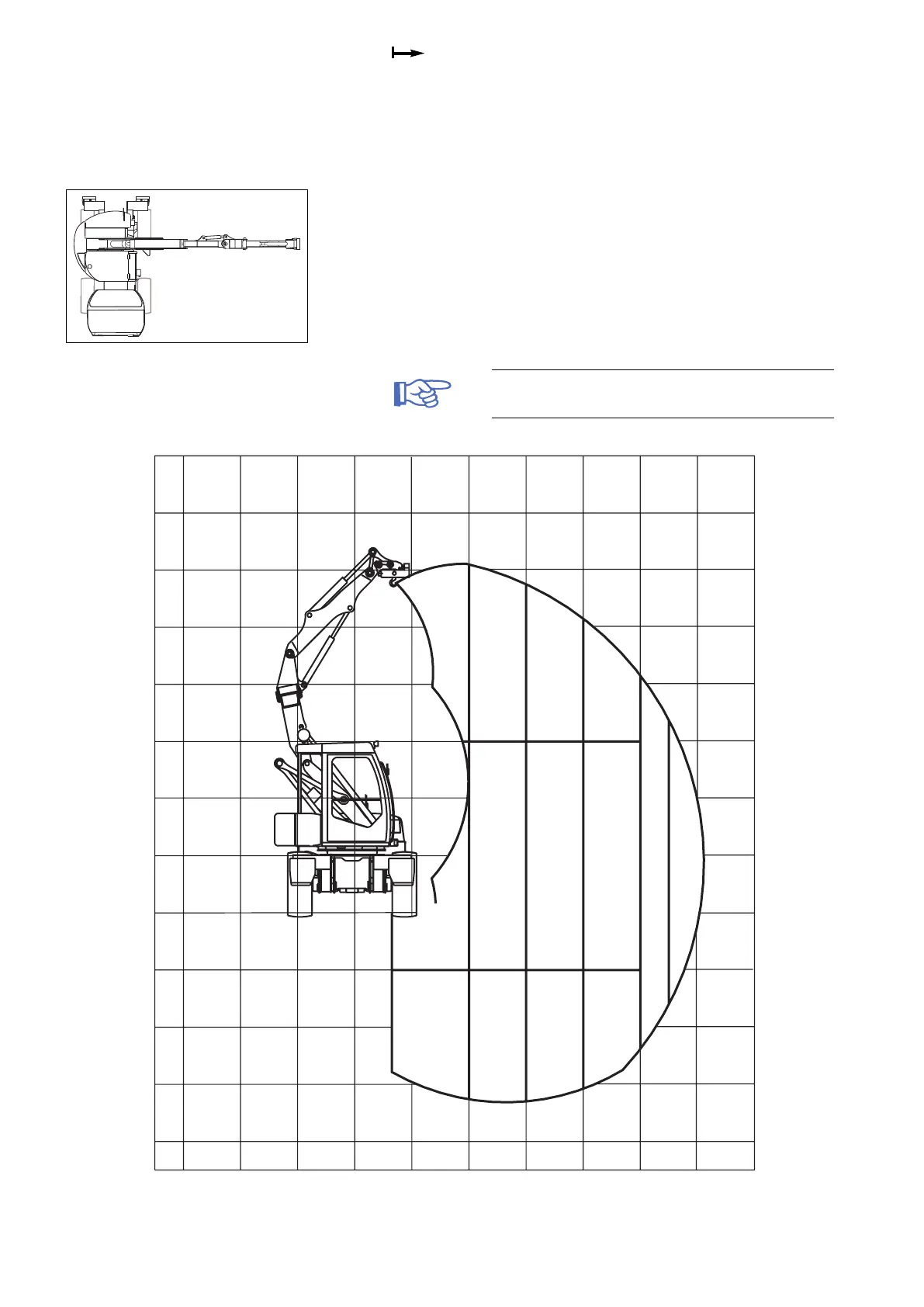

5.4 Lifting and handling in the transverse position
without stabilizers
Working conditions:
- On wheels without the stabilizers.
- On level, compact ground.
- Equipment used without any offset.
- Front and rear chassis sections aligned.
- Rear axle oscillation locked.
- Without any tool (bucket, loader, etc.) with handling plate +
hook.
Stability loads and hydraulic limits according
to standard ISO 10567.
7 m
6 m
5 m
4 m
3 m
2 m
1 m
0 m
1 m
2 m
3 m
4 m
0 m
1 m
1 m
2 m2 m 3 m
3 m 4 m
5 m
6 m
7 m
2700
2000
1300
900
1800 1150
800
650 600
3200
3200 1700 1100
800
