28000 12MXT
M1 61
14.2 Hydraulic adjustment procedure for the
gears
Before carrying out the checks, heat the
hydraulic oil to between 50° and 60° in the tank.
14.2.1 Checking the power-feed pressure
1- Place the machine on the ground, speed in neutral,
engine in maximum regime.
2- Measure the pressure (1 fig. 1) using the manometer.
3- If the pressure is too low, turn the screw (1 fig. 2)
clockwise in order to increase the pressure.
Operation
Pressure
(bar)
Measure
(ref. no.)
Adjustment
(ref. no.)
Power-feed pressure 26 (+2 -2) 1 fig. 1 1 fig. 2

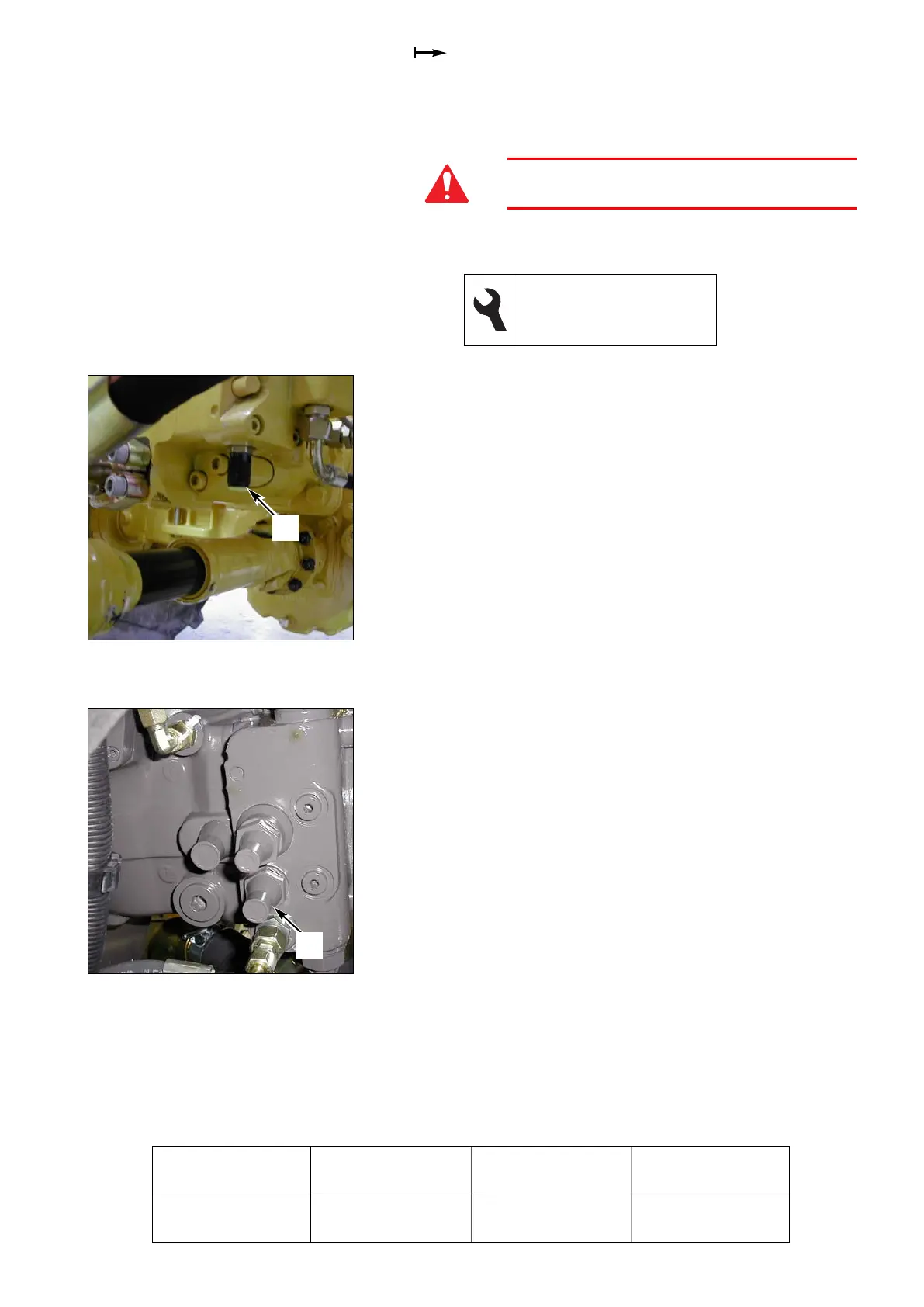

Fig. 1 Transfer movement engine
17 flat spanner
5 male hexagonal spanner
Manometer, 0 - 60 bar
Fig. 2 Transfer movement pump
1
1
