mecalac 12 MXT - Lifting and Handling in the Longitudinal Position Without Stabilizers

28000 12MXT
M1 17

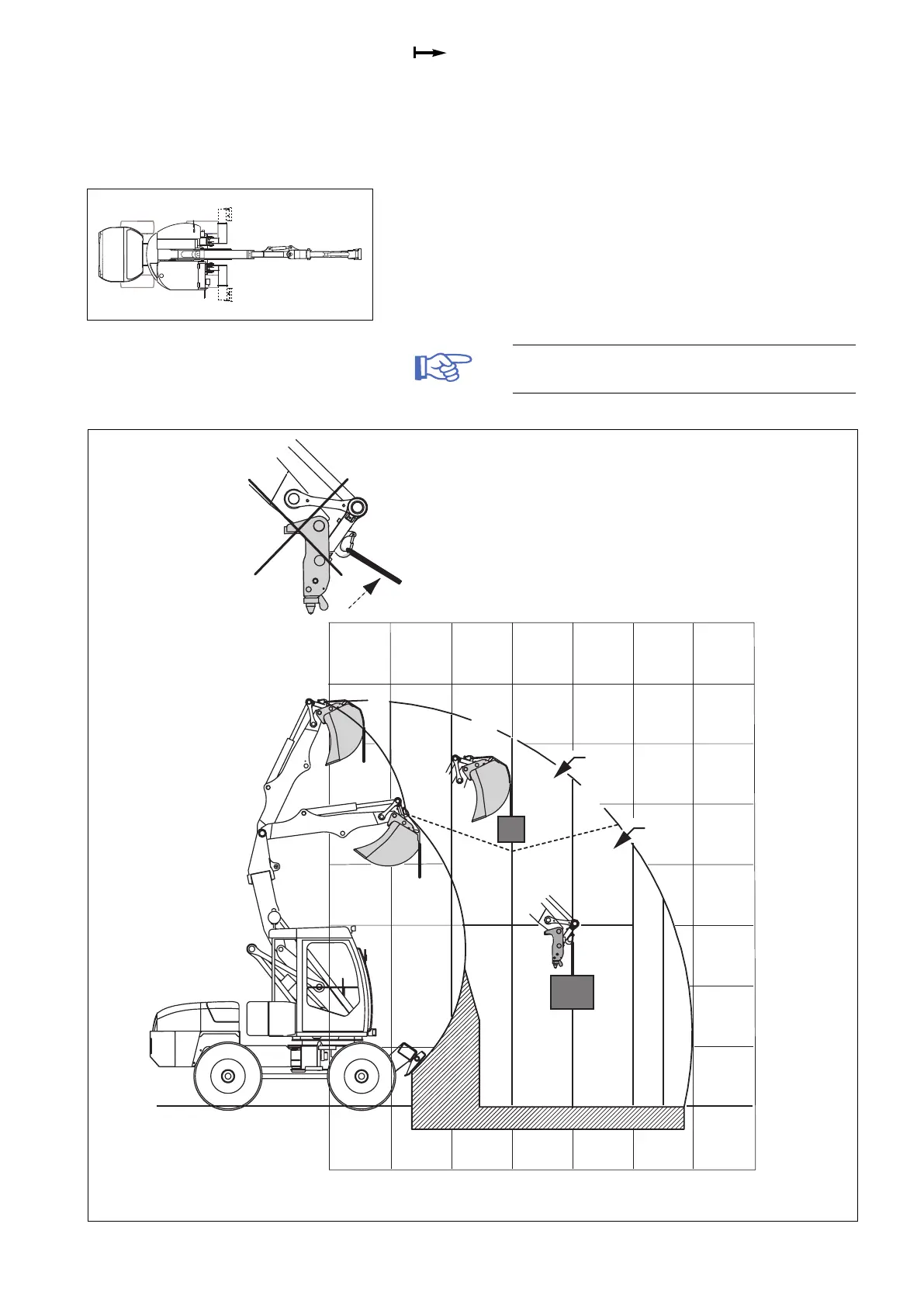

5.7 Lifting and handling in the longitudinal position
without stabilizers
Working conditions:
- On level, compact ground.
- Equipment used without any offset.
- Front and rear chassis sections aligned.
- Without any tool (bucket, loader, etc.).
- Bucket ram always full extended with hook fixed on tool-
holder rod.
Stability loads and hydraulic limits according
to standard ISO 10567.
7 m
6 m
5 m
4 m
3 m
2 m
1 m
0 m
1 m
0 m
1 m 2 m 3 m
4 m
5 m
6 m
7 m
2500
2000
1750
1450
1200
2000
1400
850
1150
750
900
1800
2500
ZONE A
ZONE B
ZONE A: Bucket is necessary
ZONE B: With bucket, deduct 300 kg from table values
