mecalac 12 MXT - Bucket Circuit

28000 12MXT
M1 35
9.7 Bucket circuit
A
B
2
4
G1B
G1A
G2A
G2B
F5
D1
G1
C1

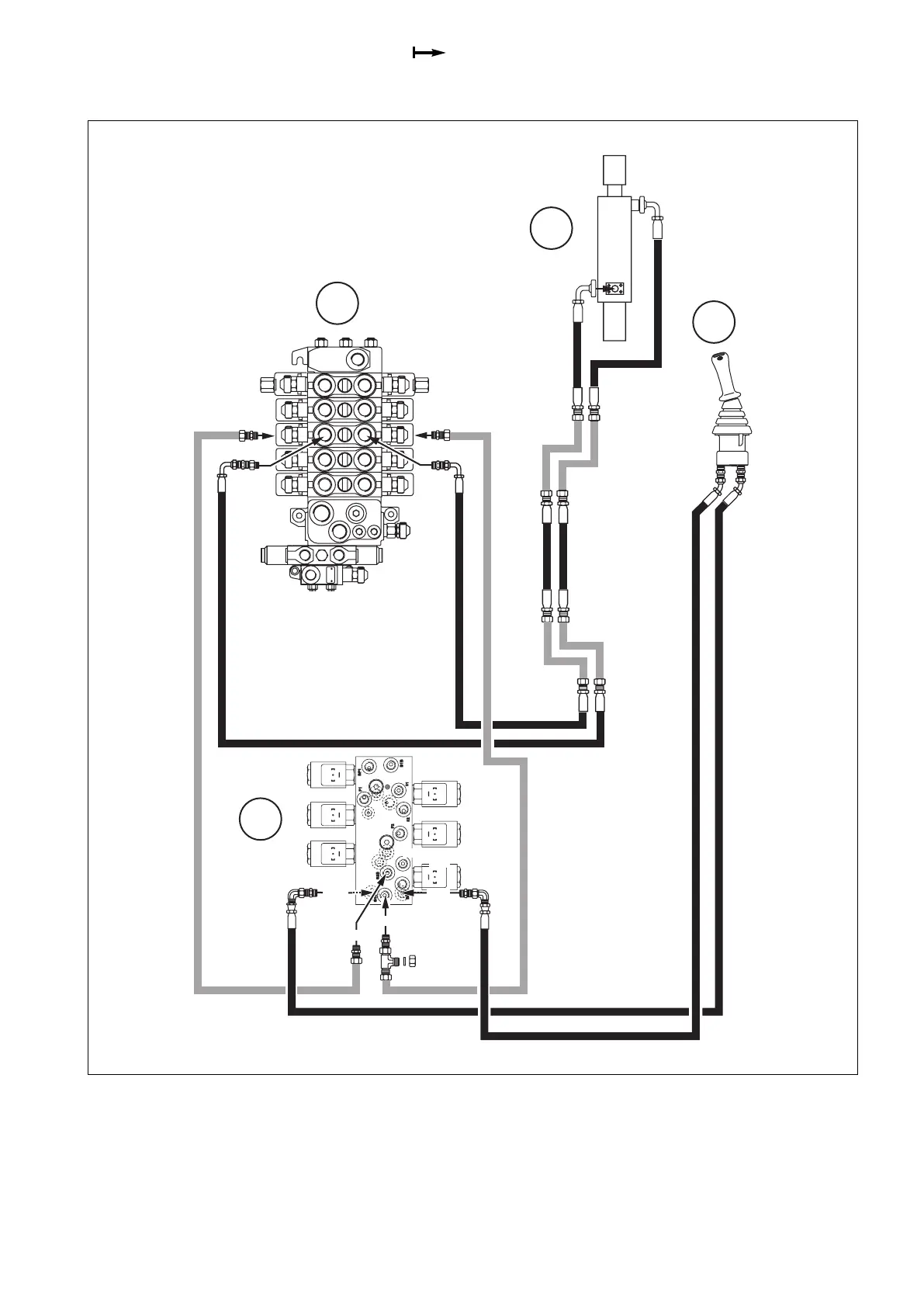

C1 - SX14 valve block
D1 - Right manipulator
F5 - Piloting unit (Low pressure)
G1 - Bucket ram
