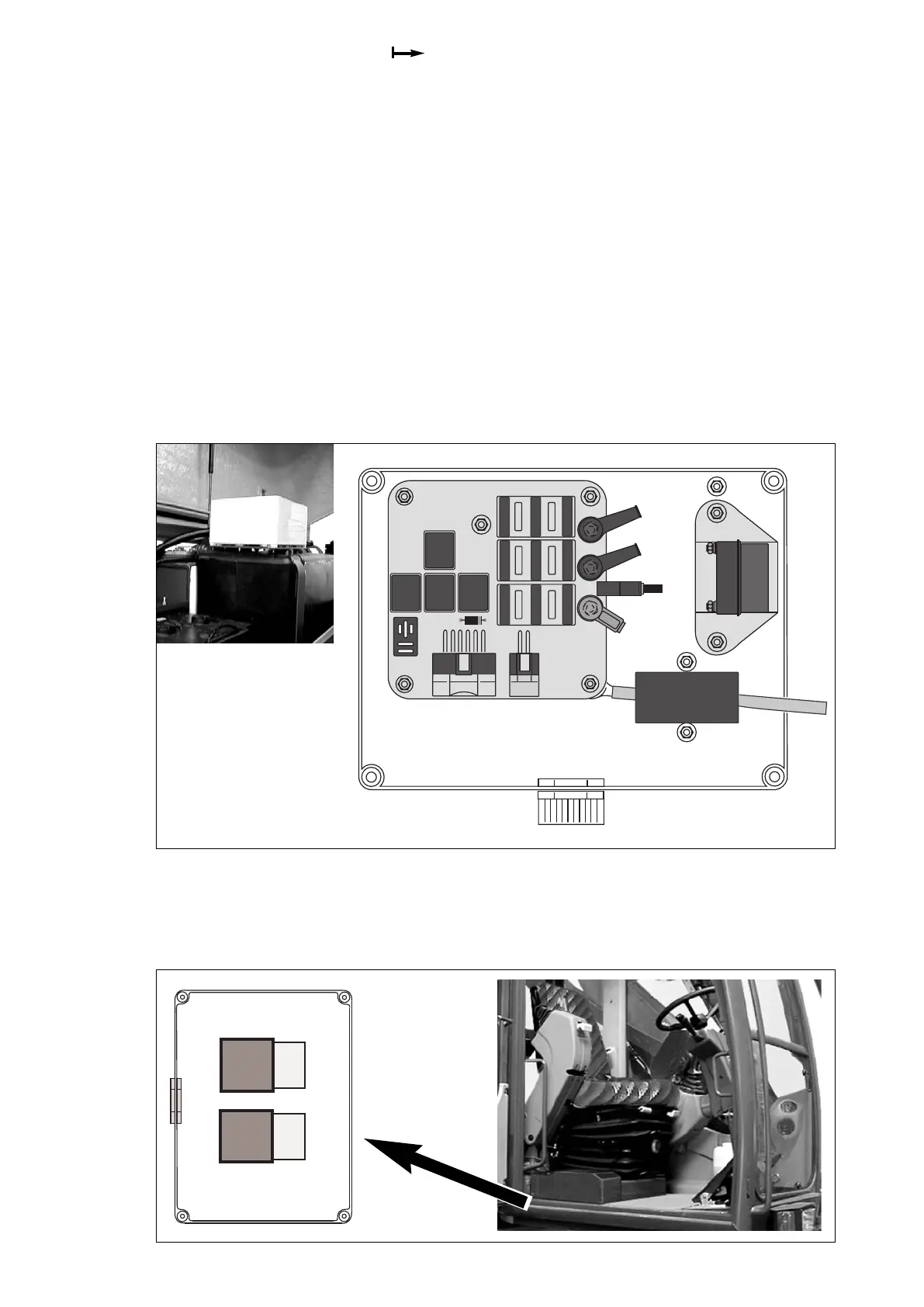

12.4 Relay box (on fuel tank)
F31 - 15 A fuse : Reversing lights, audible reversing signal and direction inverter
F32 - 5 A fuse : Engine shut-off relay
F33 - 25 A fuse : Condenser fan supply (air conditioning)
F34 - 3 A fuse : Rear left position light
F35 - 3 A fuse : Rear right position light
F36 - 25 A fuse : Heating fan supply
F37 - 3 A fuse : Number plate light
F38 - 25 A fuse : Not used
F39 - 15 A fuse : Not used
F40 - 60 A fuse : Turntable supply
R28 - Relay : Reversing lights and audible reversing signal
R29 - Relay : Forward (F)
R30 - Relay : Reverse (R)
R31 - Relay : Engine shut-off
R32 - Relay : Not used
K8 - Relay : Starting relay
12.5 Air conditioning relay box (option) (under the cab floor)
KE - Relay : Air conditioning ON
KV - Relay : Air conditioning condenser
